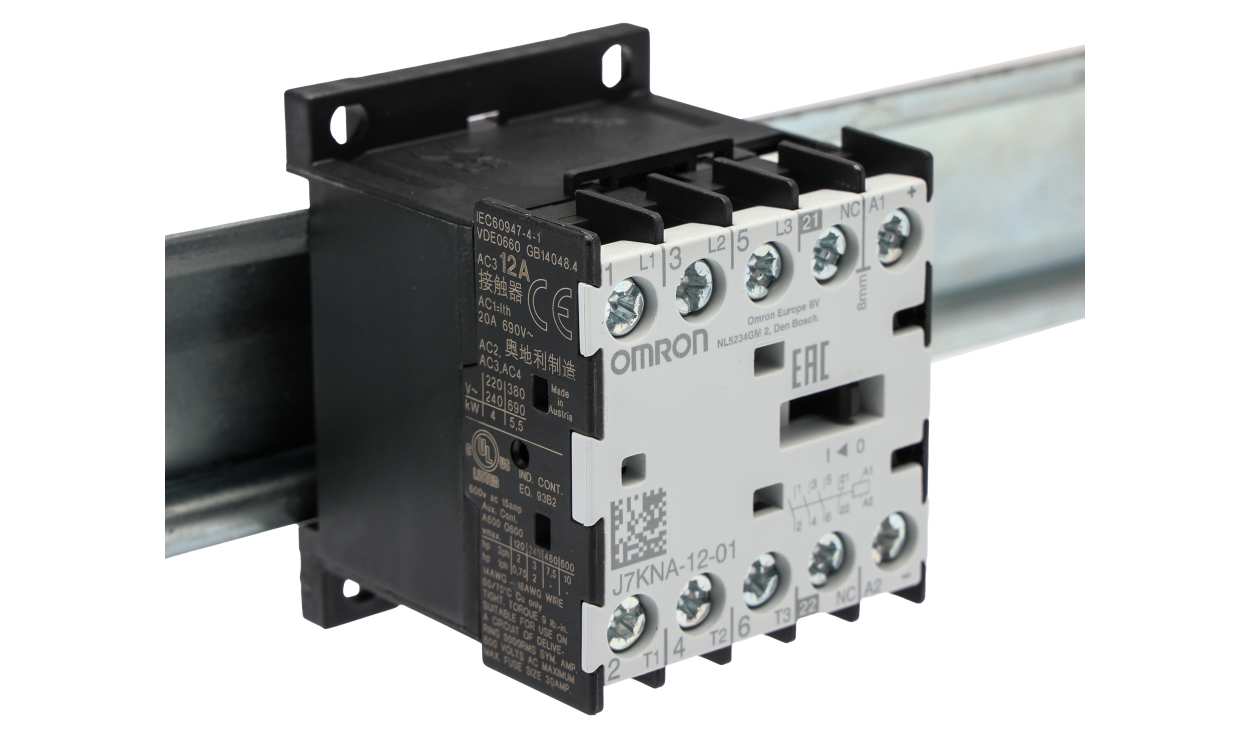

Name: Omron J7KNA-12-01 24D, J7KNA Series J7KNA Contactor, 24 V Coil, 3-Pole, 12 A, 5.5 kW, 1NC
Brand: OMRON
SKU: J7KNA-12-01 24D
Availability: OutOfStock

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron J7KNA-12-01 24D, J7KNA Series J7KNA Contactor, 24 V Coil, 3-Pole, 12 A, 5.5 kW, 1NC

Part Number : J7KNA-12-01 24D

Availability: Sold out

Detailed Description
Specifications

Omron J7KNA Series Contactor, 24V Control Voltage, 12A Current Rating - J7KNA-12-01 24D

This contactor is designed for robust performance in various industrial applications. Featuring a 3-pole configuration, it efficiently handles loads with a contact voltage rating of up to 690V AC. With dimensions of 45mm in width and 49mm in depth, it is suitable for smooth integration into existing systems.

Features & Benefits

• Operates at a control voltage of 24V DC for low energy consumption
• Includes auxiliary contacts enhancing circuit functionality
• Utilises screw terminals for secure and reliable connections
• Rated for industrial applications, ensuring compliance with global standards

Applications

• Utilised in automation control systems for reliable switching
• Suitable for motor control where compact design is essential
• Designed for use in electrical panels requiring a robust contactor
• Used with fuseless load feeders in various industries

What are the advantages of using this contactor with auxiliary contacts?

Incorporating auxiliary contacts allows for enhanced circuit management, such as monitoring or signalling, which is critical for automation systems. This utility extends the contactor’s functionality beyond simple switching.

Can this contactor function in environments with varying temperature extremes?

Yes, it is rated for operation in temperatures ranging from -40°C to +60°C, making it versatile for both cold and high-temperature applications typical in industrial settings.

How does this contactor handle heavy loads?

With a rated current of 12A and a contact voltage rating of 690V AC, it is designed to manage substantial electrical loads efficiently, ensuring reliable operation under heavy-duty conditions.

Brand	Omron
Coil Voltage	24 V
Number of Poles	3
Contact Current Rating	12 A
Power Rating	5.5 kW
Range	J7KNA Series
Series	J7KNA
Normal State Configuration	1NC
Auxiliary Contact Configuration	1NC
Width	45mm
Depth	49mm
