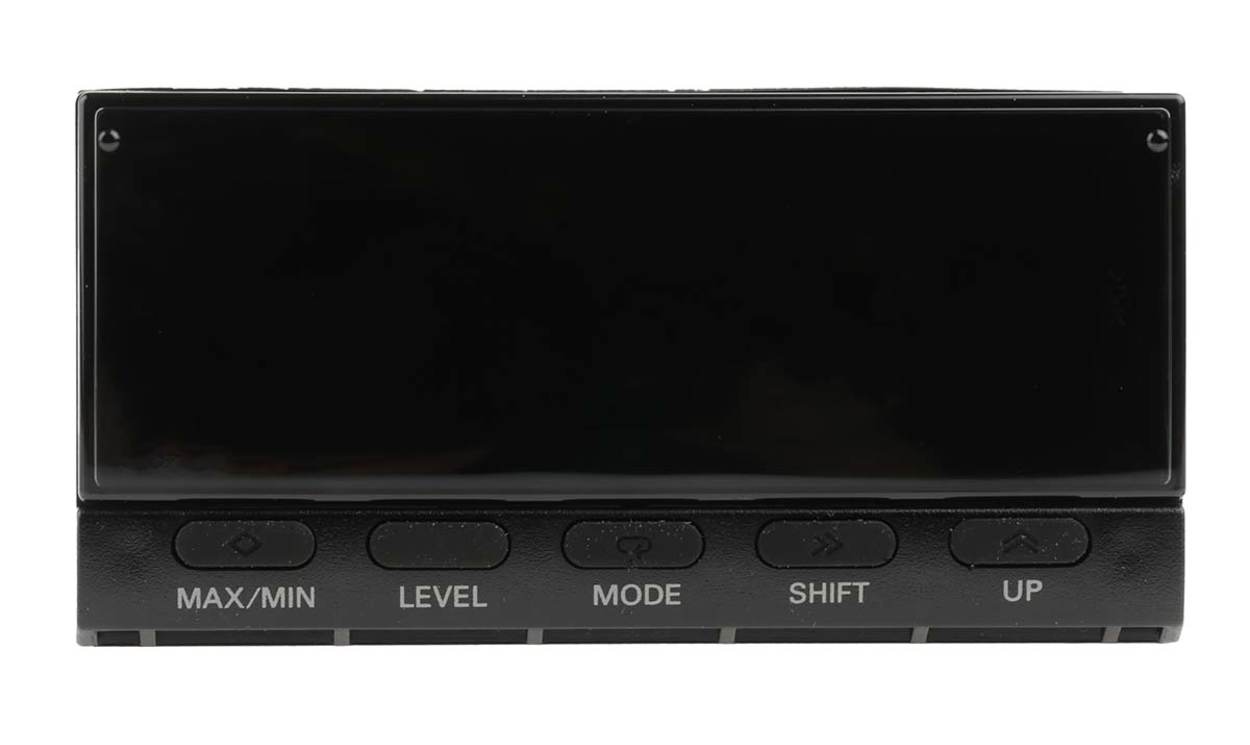

OMRON K3MA-L-C 100-240VAC | Digital Panel Temperature Meter | Temperature, LCD, 48 x 96 mm

Name: OMRON K3MA-L-C 100-240VAC | Digital Panel Temperature Meter | Temperature, LCD, 48 x 96 mm
Brand: OMRON
SKU: K3MA-L-C 100-240VAC
Availability: InStock

Part Number : K3MA-L-C 100-240VAC

The OMRON K3MA-L-C 100-240VAC is a K3MA LCD panel meter for temperature, fitting a 48 x 96 mm cutout with a depth of 80 mm.

Measures: temperature
Display: LCD
Cutout: 48 x 96 mm
Depth: 80 mm
Series: K3MA

Availability: low stock

Detailed Description
Specifications
Downloads

Omron K3MA Series Digital Panel Multi-Function Metre, 4-Digit LCD Display, 100 to 240 V AC Supply Voltage - K3MA-L-C AC100-240

This digital panel multi-function meter is designed for precise temperature measurement. The LCD temperature meter features a compact size with a cut-out dimension of 48mm x 96mm, making it suitable for panel mounting in various industrial applications. It operates on an input voltage range of 100 to 240 V AC, providing versatility for different environments.

Features & Benefits

• Highly visible dual-colour LCD display enhances readability
• Average processing function reduces signal flicker for accurate readings
• Front-panel key operation simplifies user settings and adjustments
• Non-volatile memory retains settings even during power loss

Applications

• Monitoring industrial furnace temperatures
• Temperature display in moulding equipment
• Temperature tracking for generator motor bearings
• Suitable for HVAC systems and temperature-critical

Which types of temperature sensors can be connected to this device?

It supports a range of inputs including various thermocouples (K, J, T, E, L, U, N, R, S, B) and platinum resistance thermometers like Pt100 and JPt100, allowing for diverse measurement capabilities.

How does the average processing feature improve measurement accuracy?

The average processing function stabilises displayed readings by averaging fluctuating input signals, which helps eliminate sudden spikes or noise in the measurement results.

What ensures the device’s durability in tough industrial conditions?

The water- and dust-proof front panel, rated at NEMA4X (IP66 equivalent), protects against harsh environmental factors, while the provided finger protective cover adds an extra layer of safety against electric shock.

How easy is it to install the meter in a control panel?

Installation involves inserting the meter into the panel cut-out, securing it with the provided adaptor, and attaching a rubber gasket for waterproofing, making setup straightforward and efficient.

Brand	Omron
Properties Measured	Temperature
Display Type	LCD
Cutout Height	48mm
Cutout Width	96mm
Depth	80mm
Minimum Temperature	-10°C
Maximum Temperature	+55°C
Series	K3MA

OMRON K3MA-L-C 100-240VAC | Digital Panel Temperature Meter | Temperature, LCD, 48 x 96 mm

DOWNLOAD CATALOG

K3MA-L-C 100-240VAC Datasheet 0900766b815c01d7

K3MA-L-C 100-240VAC Manual - K3MA Series A700000014065409

K3MA-L-C 100-240VAC Brochure - Two-Colour Display Panel Indicators A700000014065736
