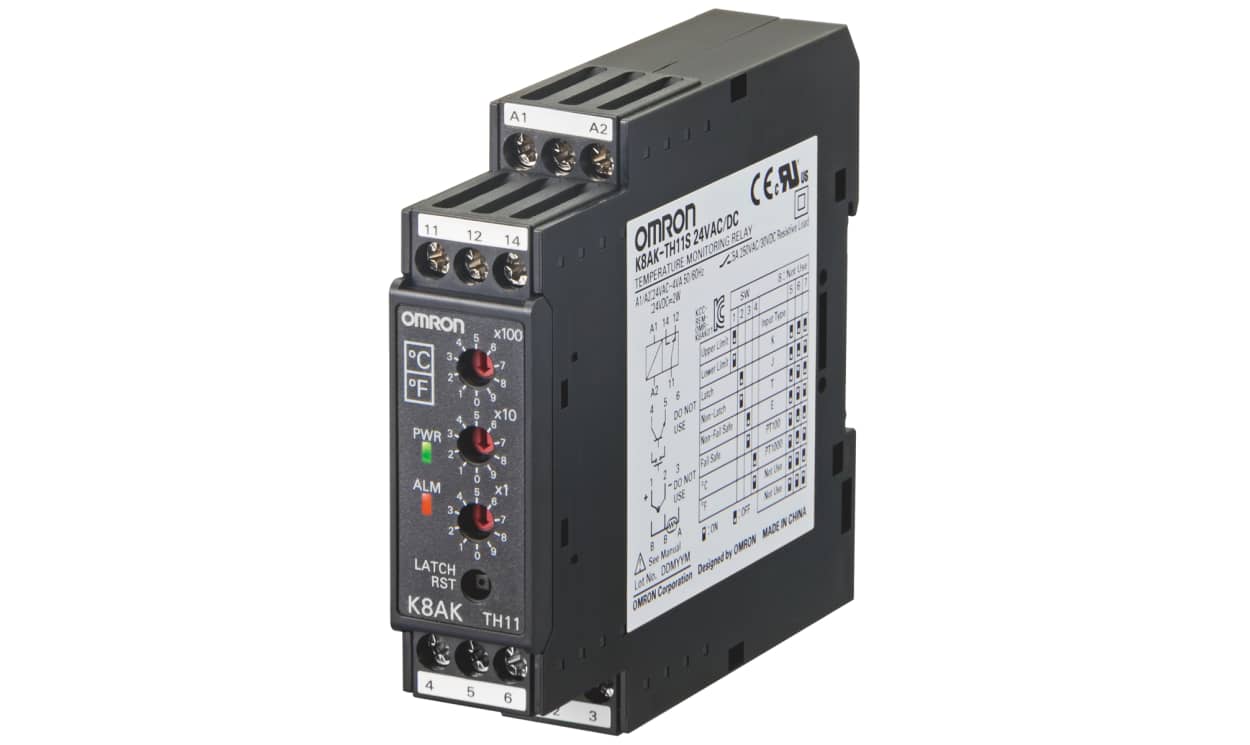

Omron K8AK-TH12S 24VAC/DC, Temperature Monitoring Relay, SPDT, DIN Rail

Part Number : K8AK-TH12S 24VAC/DC

Availability: Sold out

Detailed Description
Specifications

Omron K8AK-TH Series Monitoring Relay, SPDT Contact Configuration, Temperature Monitoring Application - K8AK-TH12S 24VAC/DC

This monitoring relay is designed for accurate temperature monitoring in various applications, particularly in industrial settings where managing overtemperature conditions is essential for safety and operational efficiency. With advanced features, this device supports effective monitoring and control, ensuring optimal temperature levels critical to operational integrity.

Features & Benefits

• Compact design with a width of 22.5mm for space-saving installation
• Compatible with both thermocouple and platinum resistance thermometer input types
• Allows adjustment between normally open and normally closed relay output
• User-friendly rotary switches for convenient temperature setting
• Alarm output status retention during power interruptions
• Built-in LED indicators provide clear status feedback

Applications

• Used for temperature alarm monitoring in machinery
• Suitable for HVAC systems requiring precise temperature regulation
• Employed in laboratories for accurate temperature data collection
• Applicable in industrial processes that require thermal control

What sensor types are compatible with this device?

It supports thermocouples and platinum resistance thermometers for versatile applications.

How do I adjust the temperature settings?

Temperature adjustments can be made easily using the integrated rotary switches.

Is it possible to use this device in outdoor environments?

No, it should be installed in controlled environments to prevent exposure to harsh conditions.

What happens if there is a power outage?

The relay will retain the alarm output status, ensuring continuous monitoring.

Can I mount this device on any type of rail?

It is designed specifically for DIN rail mounting for secure installation.

Standards

UL 61010-1, EN 61326-1, IP 20

Brand	Omron
Monitoring Application	Temperature
Contact Configuration	SPDT
Mounting Type	DIN Rail
Time Delay	100ms
Temperature Sensitivity	Overtemperature
Temperature Sensing Range	0 → 1800°C
Series	K8AK-TH
Minimum Temperature Sensed	0°C
Operating Temperature Range	+55°C
Maximum Temperature Sensed	+1800°C
Dimensions	100 x 22.5 x 90mm
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+55°C
Standards Met	CE
Terminal Type	Screw
Width	22.5mm
Height	90mm
Length	100mm
