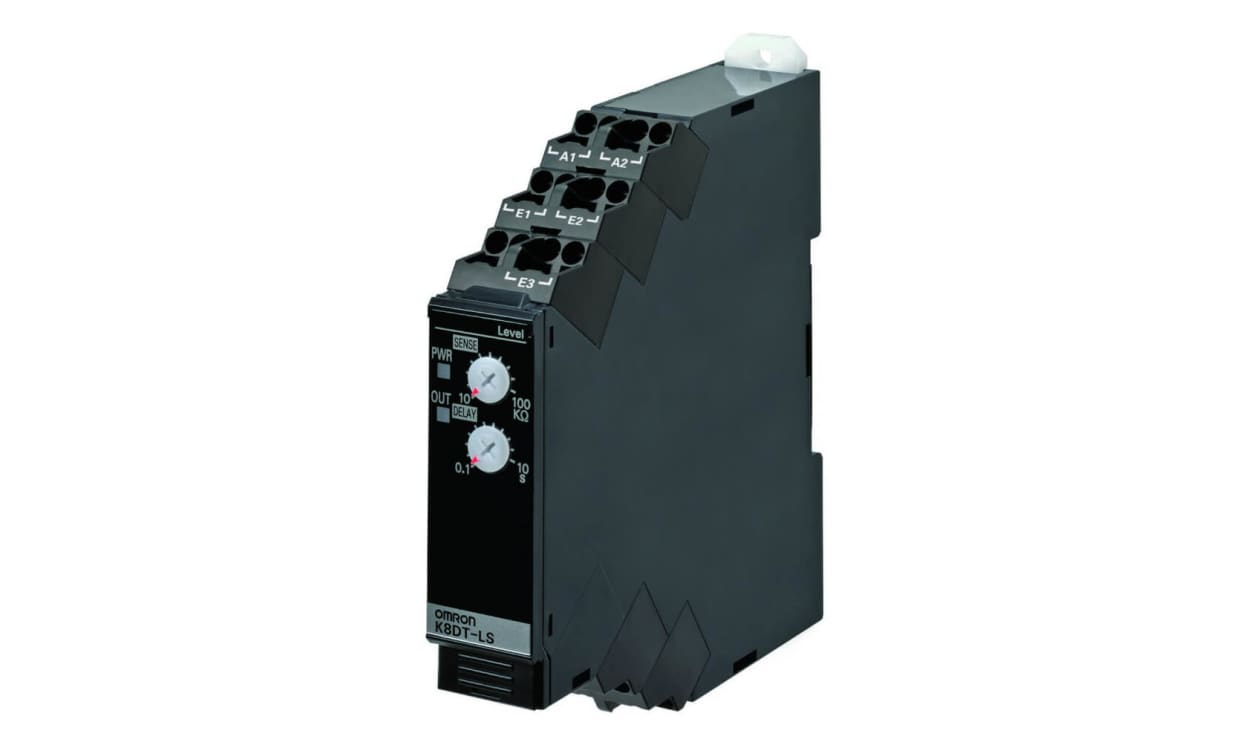

Omron K8DT-LS1CD, Level Monitoring Relay, 3 Phase, SPDT, DIN Rail

Part Number : K8DT-LS1CD

Availability: Sold out

Detailed Description
Specifications

Omron K8DT-LS Series Monitoring Relay, SPDT Contact Configuration, DIN Rail Mount - K8DT-LS1CD

This monitoring relay is intended for accurate level monitoring in industrial environments. It provides dependable functionality across a variety of automation and electrical applications, making it a key component for effective system management. With compatibility for DIN rail mounting, this robust unit is well-suited for applications that require a compact and efficient solution.

Features & Benefits

• Designed for 3-phase systems to enhance operational safety
• SPDT configuration allows flexibility in relay functions
• Adjustable time delay from 0.1s to 10s for optimal performance
• IP20 rated for terminal protection in industrial settings

Applications

• Utilised for level control in tanks and reservoirs
• Suitable for monitoring liquid levels in various industrial processes
• Employed in automated systems requiring precise control
• Effective in machinery needing SPDT relay for switching

How is the relay adjusted for different time delay settings?

The time delay can be set using the designated control dial on the front of the unit, allowing for quick adjustments.

What mounting options are compatible with this relay?

This device is specifically designed for DIN rail mounting, ensuring it fits securely within standard electrical panels.

Can this relay withstand extreme temperatures?

It operates effectively within a temperature range of -20 to +60°C, suitable for various industrial conditions.

What type of terminals does it feature for connections?

The relay includes push-in terminals for straightforward and secure wiring connections, simplifying installation.

Standards

EN 61010-1, EN 61326-1, UL 31010-1, IP 20 Terminals

Omron K8DT Series Control Relays

Omron K8DT measuring and monitoring relays are part of the Value Design for Panel concept that takes control panel design and manufacturing to a new level. The K8DT series protect important equipment from damage using various measuring and monitoring relays that conform to international safety standards. Low power consumption and low heat generation design offer a long service life.

Space Saving

The K8DT series can help downsize control panels by reducing the width between wiring ducts and void panel space. The slim body allows space to mount more devices in the same size of control panel to increase control panel functionality.

Push-In Plus Terminals

Push-In Plus terminal blocks on all K8DT relays reduce the time and work involved in wiring. The Push-In Plus terminals allow solid and stranded wires with pin terminals or ferrules to be inserted without the need for tools.

Brand	Omron
Monitoring Application	Level
Electrical Phase	3
Contact Configuration	SPDT
Mounting Type	DIN Rail
Time Delay	0.1 → 10s
Series	K8DT-LS
Terminal Type	Push In
Number of Poles	1
Standards Met	CE, UL
Special Features	IP20 Terminal
Length	90mm
Height	90mm
Width	17.5mm
Maximum Operating Temperature	+60°C
Operating Temperature Range	-20 → +60°C
Minimum Operating Temperature	-20°C
Dimensions	90 x 17.5 x 90mm
