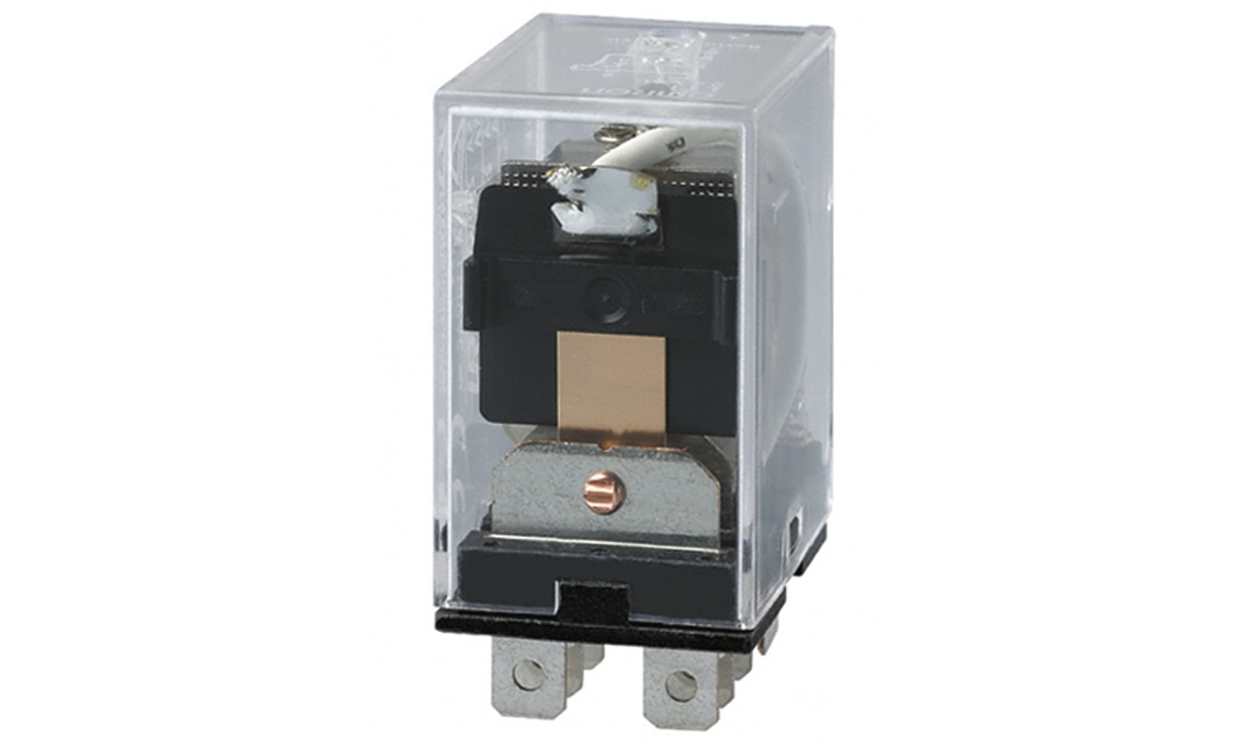

Name: Omron LY1 110/120VAC, Plug In Power Relay, 120V ac Coil, 15A Switching Current, SPDT
Brand: OMRON
SKU: LY1 110/120VAC
Availability: OutOfStock

Omron LY1 110/120VAC, Plug In Power Relay, 120V ac Coil, 15A Switching Current, SPDT

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron LY1 110/120VAC, Plug In Power Relay, 120V ac Coil, 15A Switching Current, SPDT

Part Number : LY1 110/120VAC

Availability: Sold out

Detailed Description
Specifications

LY Series

Withstand voltage 2000V coil to contact
Arc barriers to prevent flash-over between adjacent poles
Relay clips for DIN types available separately
Contact resistance: 50mΩ
Isolation coil to contact: 12kV
Operating temperature range: -25 to +55°C
Switching Voltage: 110Vac; 24Vdc
Contact material: AgCdO
Dimensions: H42.4mm x W28mm x D41.5mm

Approvals

VDE, UL, CSA, TUV

Brand	Omron
Coil Voltage	120V ac
Contact Configuration	SPDT
Mounting Type	Plug In
Switching Current	15A
Number of Poles	1
Latching	No
Series	LY1
Terminal Type	PCB Pin
Maximum Switching Voltage AC	250V ac
Maximum Switching Voltage DC	125V dc
Length	21.5mm
Coil Resistance	4430Ω
Coil Power	1.1W
Isolation Coil To Contact	2kV ac
Maximum Operating Temperature	+55°C
Contact Material	Silver Alloy
Minimum Operating Temperature	-25°C
Life	200000 (Electrical) Operations, 50000000 (Mechanical) Operations
Depth	36mm
