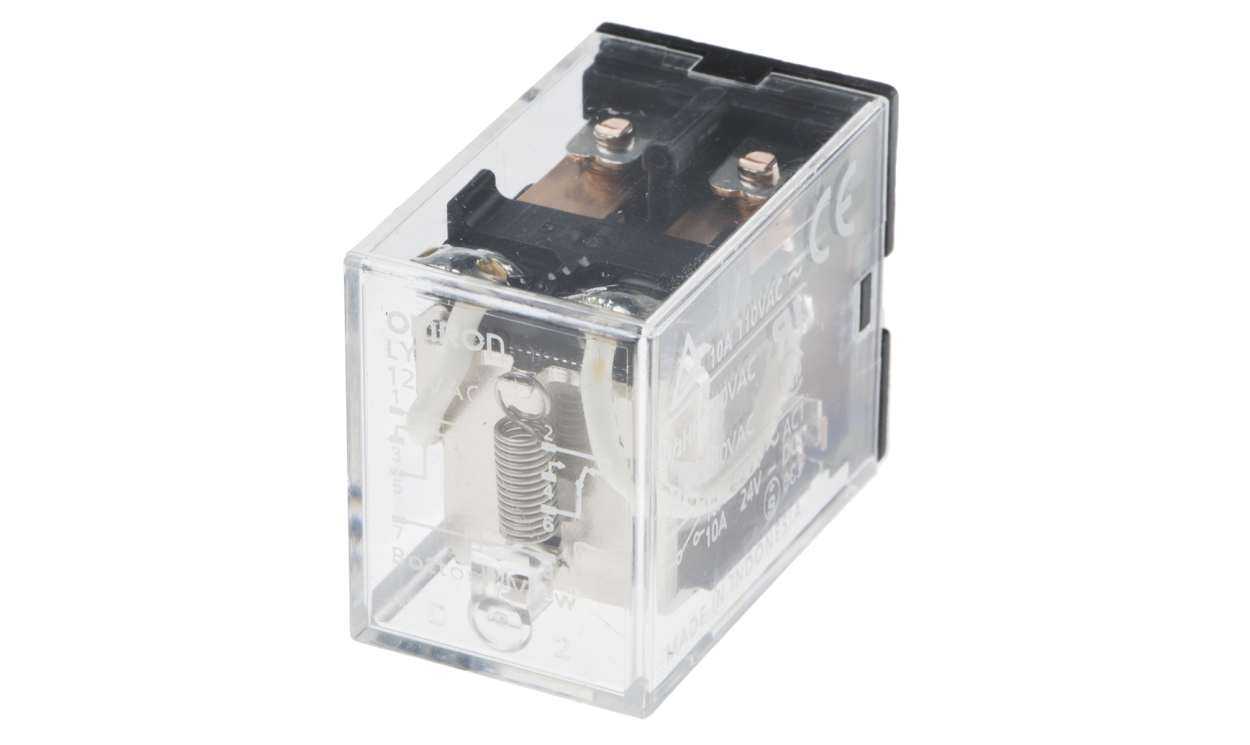

Omron LY2 12VAC, Plug In Power Relay, 12V ac Coil, 10A Switching Current, DPDT

Name: Omron LY2 12VAC, Plug In Power Relay, 12V ac Coil, 10A Switching Current, DPDT
Brand: OMRON
SKU: LY2 12VAC
Availability: OutOfStock

Part Number : LY2 12VAC

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron LY2 Series Power Relay, 12V AC Coil Voltage, DPDT Contact Configuration - LY2 AC12

This power relay is intended for general-purpose applications, offering efficient control for various electrical circuits. Its compact design and plug-in mounting type facilitate integration into a wide range of systems. The specifications make it suitable for use in automation and industrial machinery, where effective switching is required.

Features & Benefits

• Handles switching currents up to 10A for significant power needs
• Coil resistance of 46Ω optimises energy consumption
• Capable of switching up to 250V AC and 125V DC for broad voltage support
• Designed for longevity with 500,000 electrical operations and 50 million mechanical operations

Applications

• Suitable for load control in industrial automation systems
• Utilised for switching operations in HVAC systems
• Ideal for motor control to manage high loads
• Used in lighting control systems for efficient operation

What is the maximum temperature this component can operate at?

The relay can operate at a maximum temperature of +55°C, making it suitable for various environments.

How can this relay handle electrical power levels?

It supports a maximum switching power of 1.1kVA for AC and 240W for DC, addressing significant power requirements.

What are the characteristics of the contact material used in the relay?

The contact material is silver alloy, enhancing conductivity and reducing wear over time.

Is installation straightforward for this type of relay?

The plug-in mounting type allows for quick installation, enabling efficient integration into existing systems.

Brand	Omron
Coil Voltage	12V ac
Contact Configuration	DPDT
Mounting Type	Plug In
Switching Current	10A
Number of Poles	2
Latching	No
Series	LY2
Terminal Type	Plug In
Maximum Switching Voltage AC	250V ac
Maximum Switching Voltage DC	125V dc
Length	21.5mm
Coil Resistance	46Ω
Coil Power	1 → 1.2VA
Life	500000 (Electrical) Operations, 50000000 (Mechanical) Operations
Depth	36mm
Contact Material	Silver Alloy
Isolation Coil To Contact	2kV ac
Height	28mm
Maximum Operating Temperature	+55°C
