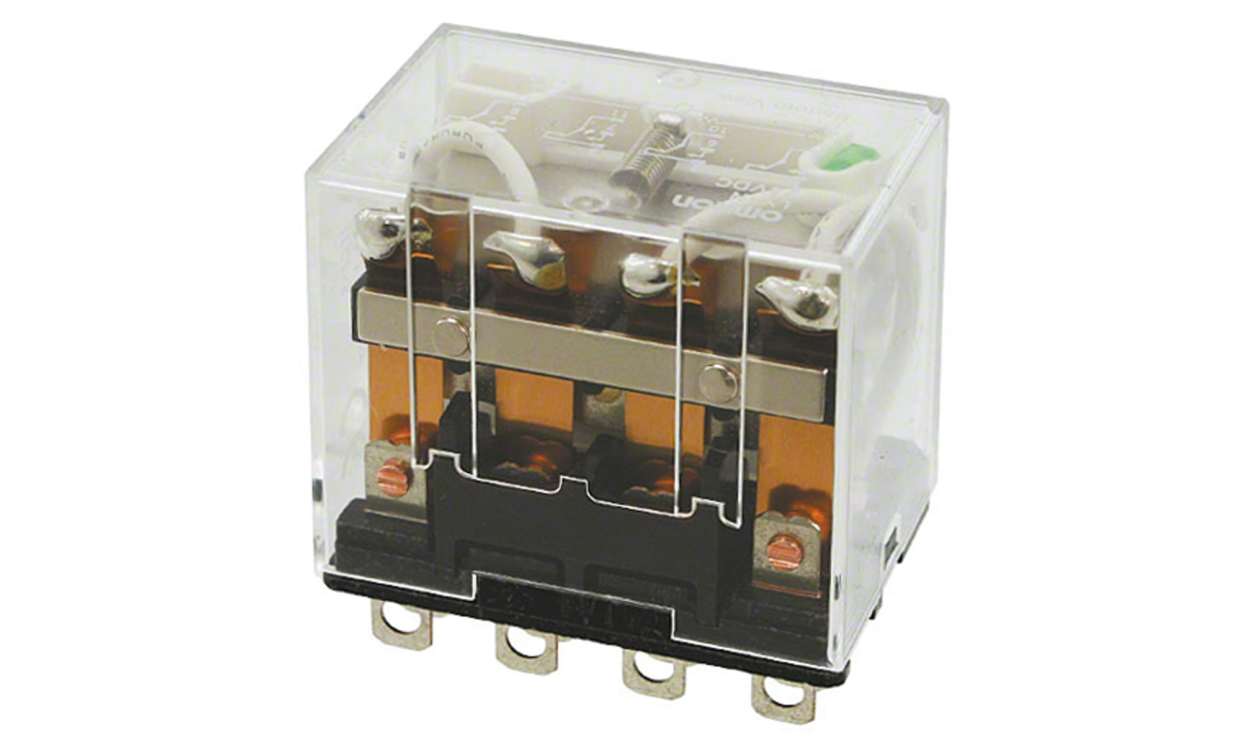

Omron LY4 120VAC, Plug In Power Relay, 120V ac Coil, 10A Switching Current, 4PDT

Name: Omron LY4 120VAC, Plug In Power Relay, 120V ac Coil, 10A Switching Current, 4PDT
Brand: OMRON
SKU: LY4 120VAC
Availability: OutOfStock

Part Number : LY4 120VAC

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron Series LY4 Power Relay, 120V AC Coil Voltage, 10A Switching Current - LY4 AC120

This power relay is a versatile electrical component designed for general-purpose applications. This 4PDT relay operates at a coil voltage of 120V AC. With a compact design measuring 41.5mm in length, 36mm in depth, and 28mm in height, it effectively manages switching tasks while ensuring high performance and reliability in various environments.

Features & Benefits

• Provides a switching current of up to 10A for efficient operation
• Features a maximum switching voltage of 250V AC and 125V DC
• Designed with a PCB pin type terminal for easy integration
• Capable of enduring 200,000 electrical and 50,000,000 mechanical operations

Applications

• Used in automation systems for controlling high voltage circuits
• Ideal for electrical control panels in industrial machinery
• Utilised in HVAC systems for power management
• Suitable for the switching of lighting and fans in commercial settings
• Effective in residential for automated systems

What is the maximum switching power for this relay?

The relay can handle a maximum switching power of 1.1kVA for AC applications and 240W for DC applications, making it suitable for various electrical loads.

How does temperature affect the relay’s operation?

This relay maintains operability in a temperature range from -25 °C to +55 °C, ensuring consistent performance in a variety of environments.

What kind of loads can this relay handle?

It is capable of managing resistive and inductive loads, with a maximum contact current of 10A, suitable for switching motors, lights, and other heavy-duty applications.

Is the relay easy to install and integrate?

Yes, it features a PCB pin terminal design, making it convenient for integration into various circuit boards and control systems without complexity.

Brand	Omron
Coil Voltage	120V ac
Contact Configuration	4PDT
Mounting Type	Plug In
Switching Current	10A
Number of Poles	4
Latching	No
Series	LY4
Terminal Type	PCB Pin
Maximum Switching Voltage AC	250V ac
Maximum Switching Voltage DC	125V dc
Maximum Switching Current AC	10 A
Maximum Switching Current DC	10 A
Length	41.5mm
Coil Resistance	1800Ω
Coil Power	2.5W
Contact Material	Silver Alloy
Depth	36mm
Isolation Coil To Contact	2kV ac
Maximum Operating Temperature	+55°C

Omron LY4 120VAC, Plug In Power Relay, 120V ac Coil, 10A Switching Current, 4PDT
