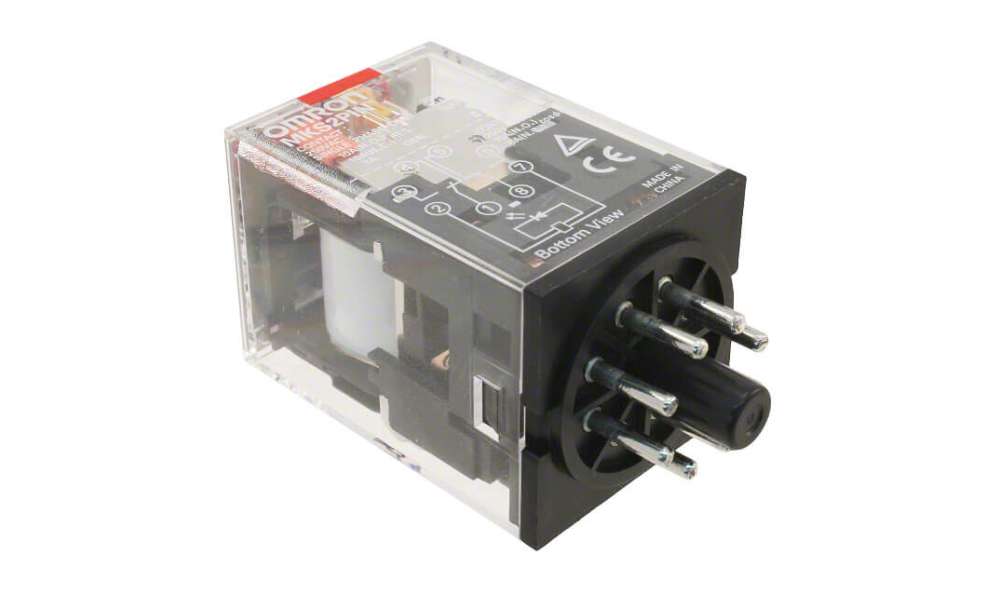

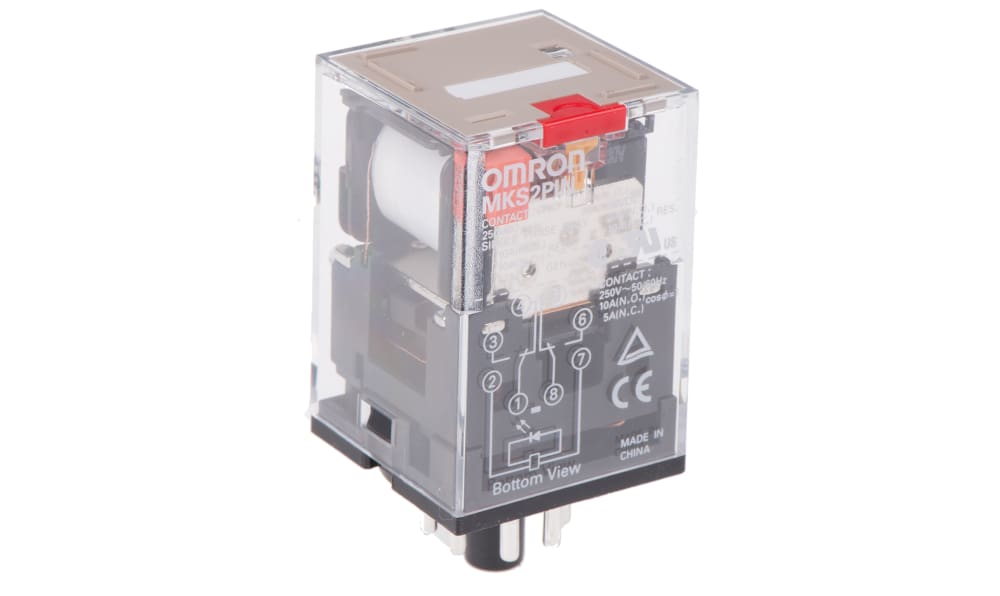

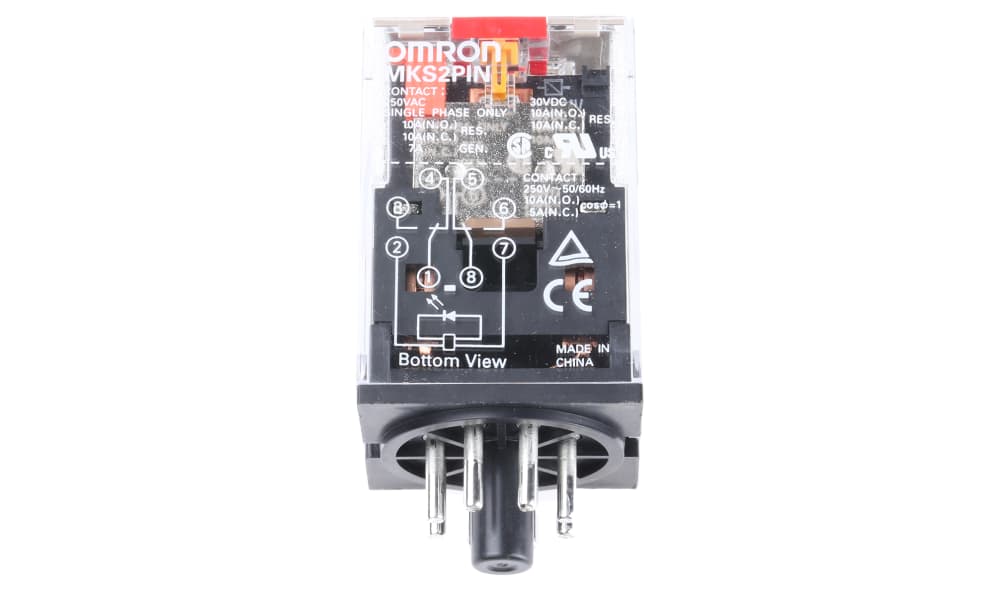

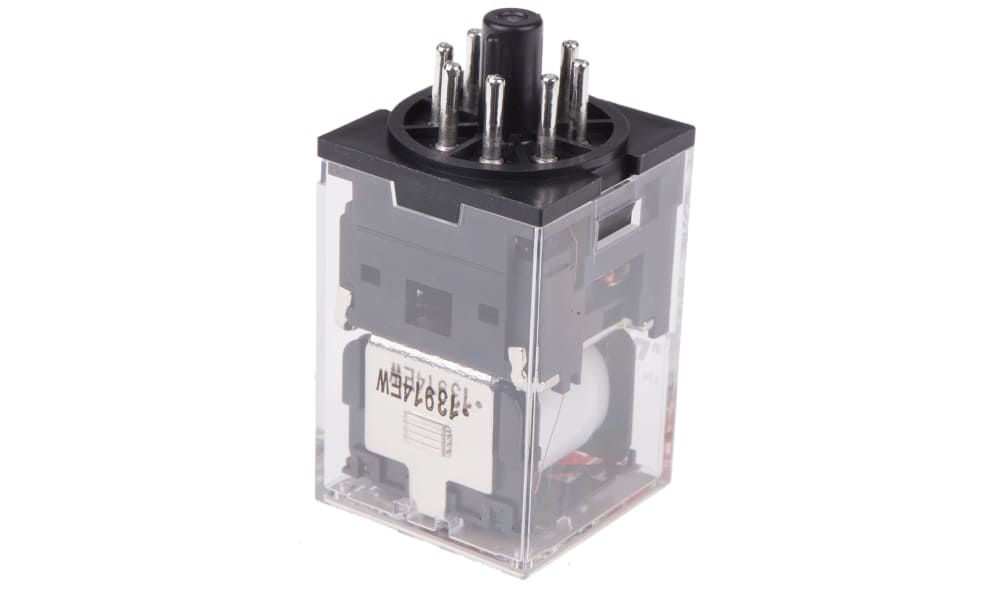

Omron MKS2PIN 230VAC, Plug In Power Relay, 230V ac Coil, 10A Switching Current, DPDT

Name: Omron MKS2PIN 230VAC, Plug In Power Relay, 230V ac Coil, 10A Switching Current, DPDT
Brand: OMRON
SKU: MKS2PIN 230VAC
Availability: OutOfStock

Part Number : MKS2PIN 230VAC

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron MKS Series Power Relay, DPDT Contact Configuration, 230V AC Coil Voltage - MKS2PIN AC230

This power relay is suitable for general-purpose applications, providing reliable switching capabilities in a range of electronic and automation systems. Its robust construction and functionality make it a vital component for precisely managing circuit connections, valuable in both industrial and commercial contexts.

Features & Benefits

• Designed for 230V AC operation, enabling versatile use
• Plug-in type facilitates easy installation and replacement
• DPDT configuration enhances circuit control options
• Silver alloy contacts ensure durability
• Capable of handling switching currents up to 10A
• Non-latching design simplifies circuit implementation

Applications

• Controls motors and actuators in machinery
• Ideal for automation systems needing circuit operation checks
• Utilised in alarm systems where dependable switching is crucial
• Employed in HVAC systems for effective machinery control
• Suitable for general lighting control in commercial buildings

What is the process for installing this device effectively?

Installation involves correctly wiring the plug-in terminals while ensuring the coil voltage matches system requirements.

How does the relay handle high current loads?

It can switch loads of up to 10A, making it suitable for various applications without the risk of overload.

What maintenance procedures should be followed for optimal performance?

Regularly check connections and inspect for wear or corrosion on contacts to ensure longevity and reliability.

Will this relay fit in standard mounting sockets?

Yes, it is compatible with standard plug-in sockets designed for similar relays available in the market.

Brand	Omron
Coil Voltage	230V ac
Contact Configuration	DPDT
Mounting Type	Plug In
Switching Current	10A
Number of Poles	2
Latching	No
Series	MKS
Terminal Type	Plug In
Maximum Switching Voltage AC	250V ac
Maximum Switching Voltage DC	250V dc
Length	34.5mm
Coil Resistance	4250Ω
Maximum Operating Temperature	+60°C
Minimum Operating Temperature	-25°C
Height	53.3mm
Standards Met	CSA, UL
Depth	34.5mm
Contact Material	Silver Alloy
Maximum Switching Power DC	300 W
