Name: Omron MKS3PI-5 24VAC, PCB Mount Relay, 24V ac Coil, 10A Switching Current, 3PDT
Brand: OMRON
SKU: MKS3PI-5 24VAC
Availability: OutOfStock

Omron MKS3PI-5 24VAC, PCB Mount Relay, 24V ac Coil, 10A Switching Current, 3PDT

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron MKS3PI-5 24VAC, PCB Mount Relay, 24V ac Coil, 10A Switching Current, 3PDT

Part Number : MKS3PI-5 24VAC

Availability: Sold out

Detailed Description
Specifications

General Purpose Relays, MKS Series

All units have a Mechanical indicator and lockable test button (with nameplate)
Units with a "-5" in the Manufacturer Part Number have non-standard connections, refer to datasheet
Contact rating: 10A at 30Vdc/250Vac
Contact material: AgSnIn
Operating temperature: -40 → +60 °C

Note

When Relays are mounted on the PF083A-E or PF113A-E, the maximum carrying current is 9 A

Approvals

UL, TUV (IEC), CSA

Omron MKS Series Relay, 24V AC Coil Voltage, 10A Switching Current - MKS3PI-5 24VAC

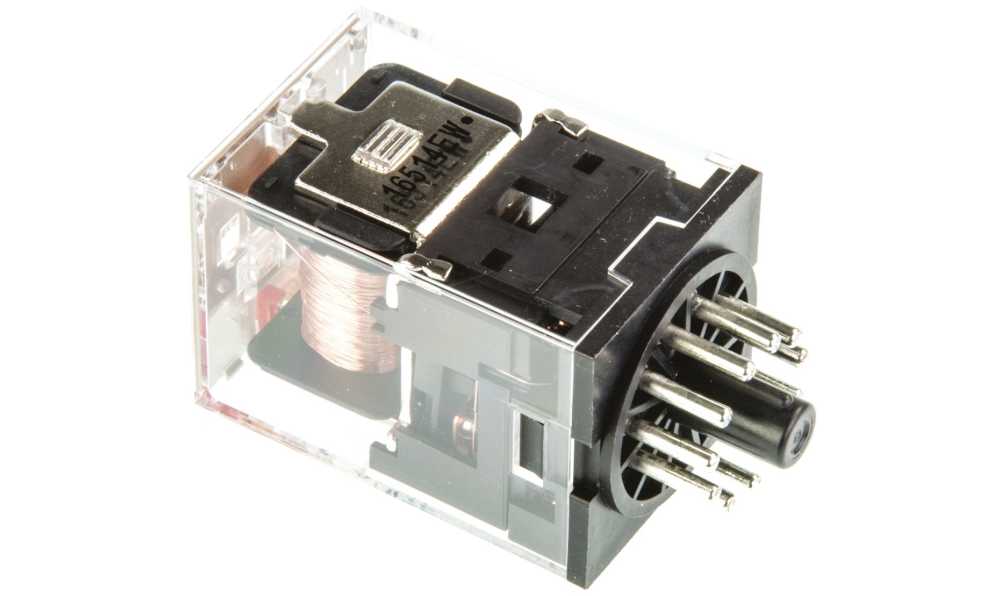

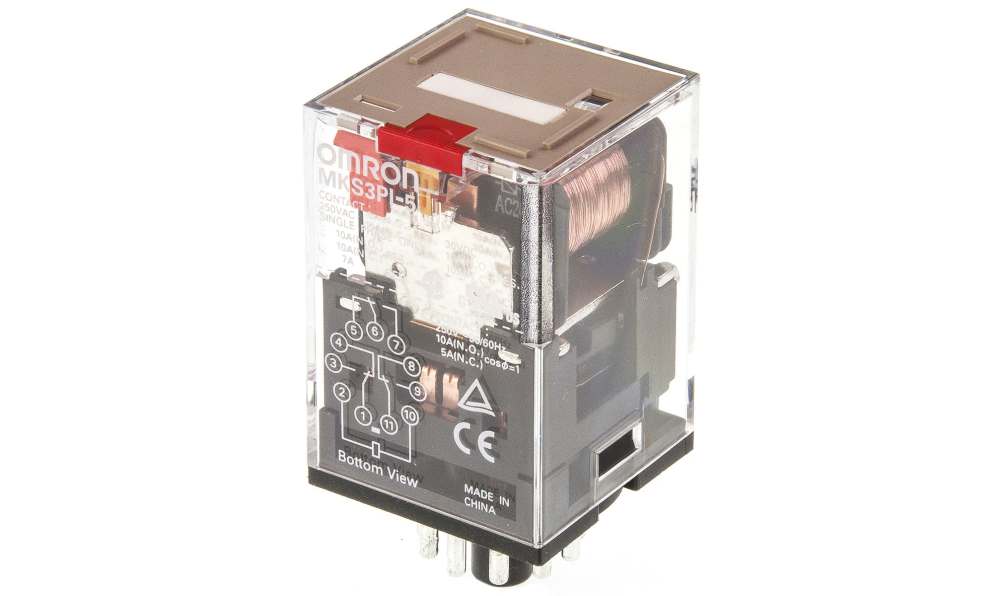

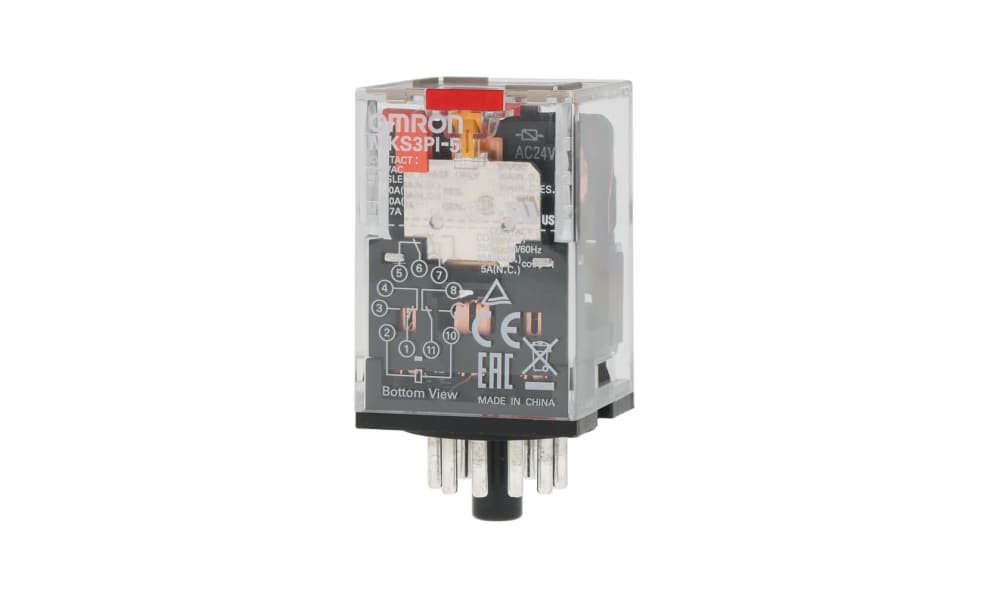

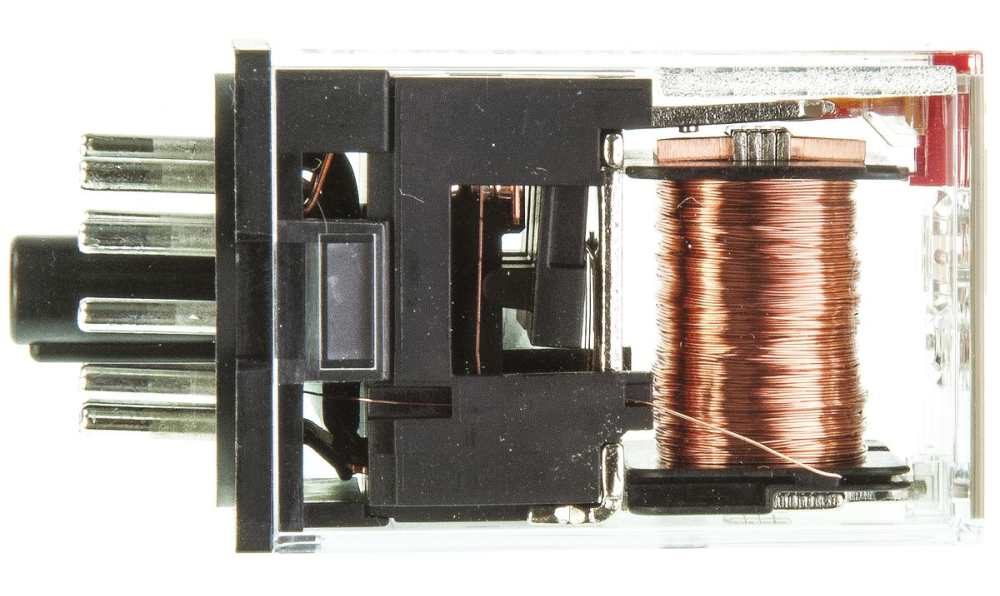

This relay is a general-purpose component designed for various automation and electrical applications. Equipped with a 3PDT configuration, it operates at a coil voltage of 24V AC. Compactly designed, it features dimensions of 34.5mm in length and depth, along with a height of 53.3mm, making it suitable for PCB mounting.

Features & Benefits

• Capable of switching up to 10A for high current applications
• Plug-in terminal design ensures easy installation and replacement
• Coil resistance of 48.4 Ω optimises power usage
• Operates effectively at temperatures between -40 °C and +60 °C
• Built-in mechanical indicator allows for contact operation verification
• RoHS compliance ensures environmentally friendly materials

Applications

• Utilised in control circuits for automation systems
• Employed in electrical panels for equipment management
• Suitable for relay sequence circuits in machinery
• Ideally used for switching in mechanical systems

What are the electrical ratings for this relay?

It supports a maximum switching voltage of 250V AC or DC and handles a maximum switching power of 2.5 kVA for AC loads, and 300W for DC loads.

How does the mechanical indicator enhance usability?

The mechanical indicator provides visual confirmation of contact status, allowing users to quickly assess operational readiness during testing or maintenance.

What kind of mounting is compatible with this relay?

It is designed for PCB mounting, which supports various automation and electronics layouts, accommodating space-efficient designs.

Is there any specific maintenance required for optimal performance?

Regular inspection is recommended to ensure proper operation within the rated temperature range

additionally, wiring should be checked for signs of wear or damage.

How does this relay compare as a latching relay alternative?

While it does not feature a latching mechanism, its reliable switching capability and flexibility make it an effective choice for many applications where latching relays are typically used.

Brand	Omron
Coil Voltage	24V ac
Contact Configuration	3PDT
Mounting Type	PCB Mount
Switching Current	10A
Number of Poles	3
Series	MKS
Latching	No
Terminal Type	Plug In
Maximum Switching Voltage AC	250V ac
Maximum Switching Voltage DC	250V dc
Length	34.5mm
Coil Resistance	48.4Ω
Contact Material	Silver Alloy
Standards Met	IEC
Maximum Operating Temperature	+60°C
Minimum Operating Temperature	-40°C
Height	53.3mm
Depth	34.5mm
Maximum Switching Power DC	300 W

Omron MKS3PI-5 24VAC, PCB Mount Relay, 24V ac Coil, 10A Switching Current, 3PDT
