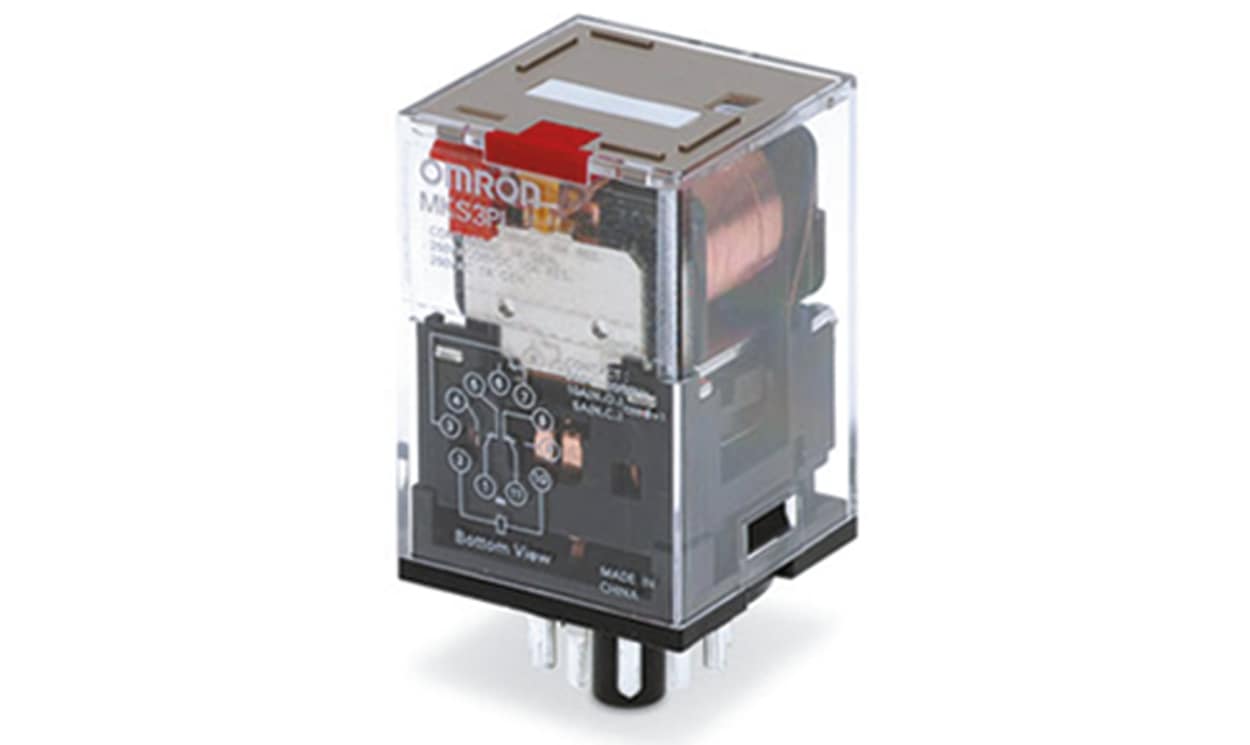

Omron MKS3PN1 DC24, Plug In Power Relay, 24V dc Coil, 10A Switching Current, 3PDT

Name: Omron MKS3PN1 DC24, Plug In Power Relay, 24V dc Coil, 10A Switching Current, 3PDT
Brand: OMRON
SKU: MKS3PN1 DC24
Availability: OutOfStock

Part Number : MKS3PN1 DC24

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron MKS Series

The MKS series of relays are the new super MK models with some boasting a latching lever.
They have a mechanical built-in indicator for easy monitoring. Nameplates are also provided on models with
the latching lever. All materials are RoHS compliant. They are available in DPDT or 3PDT and have
Plug in terminals.

Maximum switching voltage: 250 V ac/dc
Maximum switching current: 10A
Operating temperature range: -40 to 60°C (with no icing or condensation)

Optional features include lockable test button, LED indicator, diode surge suppression, varistor, reverse polarity, and alternate wiring styles.

Standards

UL (RU/CRU), CE and TUV approved.
RoHS Compliant.

Brand	Omron
Coil Voltage	24V dc
Contact Configuration	3PDT
Mounting Type	Plug In
Switching Current	10A
Number of Poles	3
Latching	No
Series	MKS
Terminal Type	Plug In
Maximum Switching Voltage AC	250V ac
Maximum Switching Voltage DC	250V dc
Length	34.5mm
Coil Resistance	430Ω
Coil Power	1.4W
Contact Material	Silver Alloy
Life	100000 (Electrical) Operations, 5000000 (Mechanical) Operations
Minimum Operating Temperature	-40°C
Isolation Coil To Contact	2.5kV ac
Maximum Operating Temperature	+60°C
Height	34.5mm
