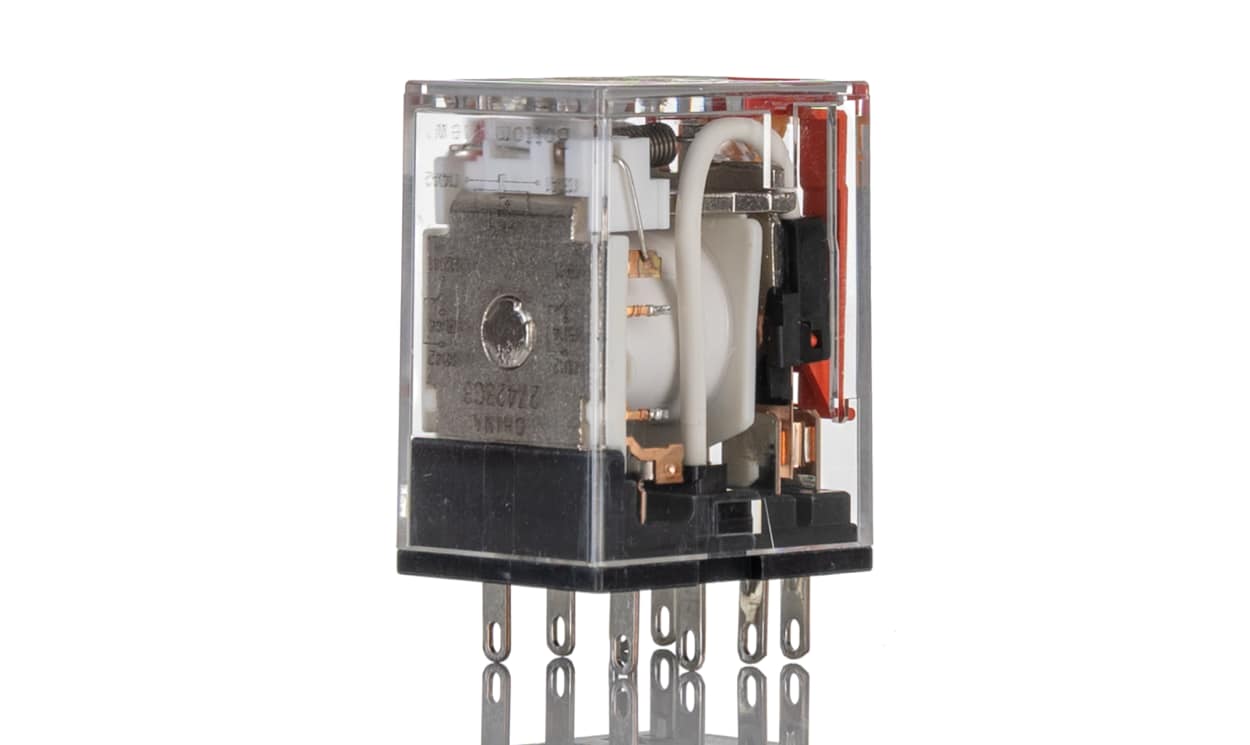

Name: Omron MY2IN-GS-R AC48, Plug In Latching Power Relay, 48V ac Coil, 10A Switching Current, DPDT
Brand: OMRON
SKU: MY2IN-GS-R AC48
Availability: OutOfStock

Omron MY2IN-GS-R AC48, Plug In Latching Power Relay, 48V ac Coil, 10A Switching Current, DPDT

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron MY2IN-GS-R AC48, Plug In Latching Power Relay, 48V ac Coil, 10A Switching Current, DPDT

Part Number : MY2IN-GS-R AC48

Relay, plug-in, 8-pin, DPDT, 10 A, mechanical & LED indicators, lockable push test button, 48 VAC

Availability: Sold out

Detailed Description
Specifications
Features

OMRON Power Relay, 788Ω Coil Resistance, 10A Switching Current Rating - MY Series - MY2IN-GS-R AC48

Want to control electricity flow through your heating and cooling system, automated panel or lighting installation? Grab this power relay from OMRON. The electromechanical device only needs a little current to turn high-load applications on and off, so it's an energy-efficient choice. Its conductive silver contacts mean you can count on reliable signal transmissions. This power relay has a rugged plastic casing to protect its sensitive components from impact. A lifespan of 500,000 cycles means it's built to last.

Features & Benefits

• Transparent housing makes it easy to spot faults
• Compatible with both AC and DC power sources for versatility
• Compact dimensions of 28 (L) x 21.5 (W) x 36mm (H) means it takes up little space on a PCB or DIN rail
• Reliable in harsh environment thanks to an operating temperature range of -55°C to +100°C

Applications

• Robotics systems
• Telecommunications networks
• Assembly and packaging lines
• Food and beverage processing

How do I know if something's wrong with this power relay?

It has mechanical and LED status indicators for convenient troubleshooting.

How do I mount this power relay on a DIN rail?

Mounting is a doddle – just plug the unit into a compatible socket and snap the assembly onto a DIN rail.

Note

This product is scheduled for discontinuation. Please refer to the attached Discontinuation notice for further details.

Brand	Omron
Coil Voltage	48V ac
Contact Configuration	DPDT
Mounting Type	Plug In
Switching Current	10A
Number of Poles	2
Series	MY
Latching	Yes
Terminal Type	Plug In
Maximum Switching Voltage AC	250V
Maximum Switching Voltage DC	220V
Maximum Switching Current AC	10 A
Maximum Switching Current DC	10 A
Length	28mm
Coil Resistance	788 Ω
Coil Power	900mW
Maximum Operating Temperature	+70°C
Isolation Coil To Contact	2kV ac
Minimum Operating Temperature	-55°C
Contact Material	Silver

Relay, plug-in, 8-pin, DPDT, 10 A, mechanical & LED indicators, lockable push test button, 48 VAC
