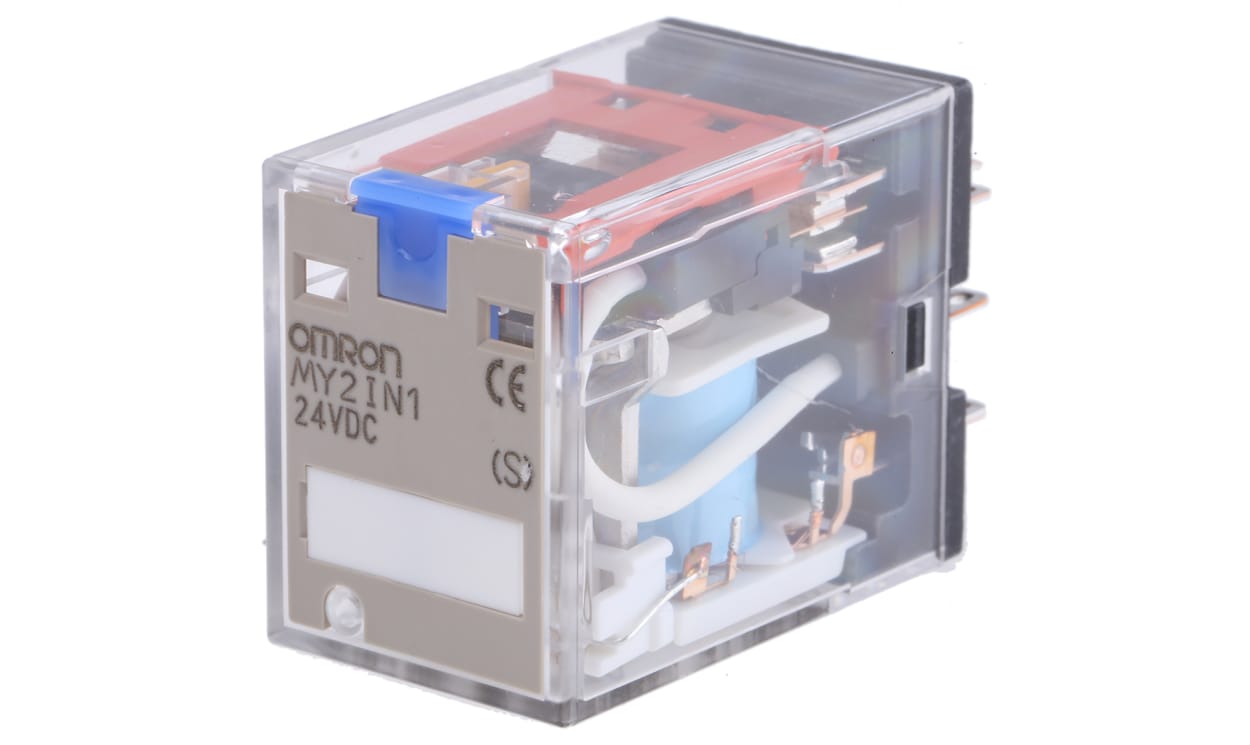

Name: Omron MY2IN1 24VDC (S), Plug In Latching Power Relay, 24V dc Coil, DPDT
Brand: OMRON
SKU: MY2IN1 24VDC (S)
Availability: OutOfStock

Omron MY2IN1 24VDC (S), Plug In Latching Power Relay, 24V dc Coil, DPDT

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron MY2IN1 24VDC (S), Plug In Latching Power Relay, 24V dc Coil, DPDT

Part Number : MY2IN1 24VDC (S)

Availability: Sold out

Detailed Description
Specifications

MY Series

Switch power: 10A version: 1100W, 5A version 660W
Contact resistance: 100mΩ
Isolation coil to contact: 2000Vac
Operating temperature range: -55 to +70°C
Maximum switching voltage: 250Vac; 125Vdc
Contact material: AgNi
Dimensions: H42.4mm x W21.5mm x D28mm

Approvals

VDE, UL, CSA

Omron Series MY Power Relay, 24V DC Coil Voltage, 2 Poles - MY2IN DC24(S)

This power relay is an essential component for automation and electrical applications. It features a DPDT contact configuration and operates at a coil voltage of 24V dc. Compactly designed with dimensions of 28 x 21.5 x 36mm, it is ideal for socket mounting and facilitates effective performance across various environments.

Features & Benefits

• Latching design ensures retention of state after activation
• Plug-in terminal type simplifies installation and removal
• Silver contact material enhances conductivity and durability
• Operates effectively in temperatures from -55 °C to +70 °C
• High coil resistance of 636Ω contributes to energy efficiency
• Two poles allow for versatile connection options

Applications

• Utilised in automotive control systems for reliable operation
• Ideal for industrial machine automation and control circuits
• Employed in consumer electronics for switching
• Commonly used in safety systems requiring robust relay functionality

What are the implications of the relay's latching feature for circuit design?

The latching capability allows the relay to maintain its on or off state after the control signal is removed, which is particularly beneficial in applications where power conservation is important as it prevents unnecessary energy consumption.

How does the contact material influence its operational reliability?

The use of silver for contacts promotes better conductivity and resistance to wear, contributing to longer operational life and reduced chances of faults due to pitting or material degradation over time.

What is the significance of the relay's temperature range for outdoor applications?

A temperature range of -55 °C to +70 °C enables reliable performance even in extreme environments, making it suitable for outdoor installations where temperature fluctuations can occur frequently.

Brand	Omron
Coil Voltage	24V dc
Contact Configuration	DPDT
Mounting Type	Plug In
Number of Poles	2
Latching	Yes
Series	MY
Terminal Type	Plug In
Length	28mm
Coil Resistance	636 O
Coil Power	900mW
Minimum Operating Temperature	-55°C
Contact Material	Silver
Height	36mm
Depth	21.5mm
Maximum Operating Temperature	+70°C
Dimensions	28 x 21.5 x 36mm
