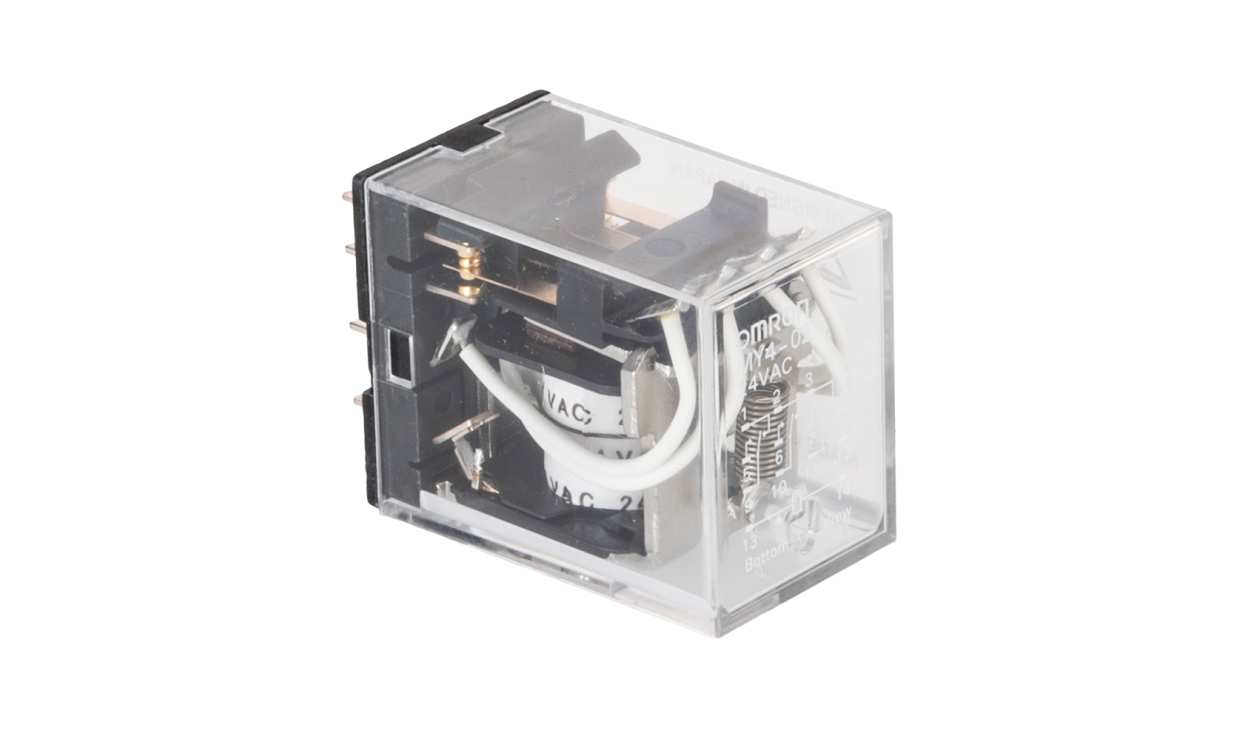

Omron MY4-02 24VAC, Soldering Power Relay, 24V ac Coil, 3A Switching Current, 4PDT

Part Number : MY4-02 24VAC

Availability: Sold out

Detailed Description
Specifications

Omron MY4 Series Power Relay, 4PDT Contact Configuration, 24V AC Coil Voltage - MY4-02 AC24

This power relay is designed to efficiently switch electrical circuits with a coil voltage of 24V AC. It has a compact design, measuring 21.5mm in length and 36mm in depth, making it suitable for PCB mounting. Its specifications make it appropriate for various power applications, ensuring safety in operations.

Features & Benefits

• 4PDT contact configuration for versatile connection options
• Maximum switching capacity of 250V AC for robust performance
• Coil resistance of 180Ω for energy-efficient operation
• Isolation of 2kV AC between coil and contact enhances safety
• Endurance of 500,000 electrical operations reduces downtime
• Maximum operating temperature of +70°C promotes reliable performance

Applications

• Control of motors and solenoids
• Automation equipment and systems
• Power switching in industrial machinery
• Effective control in HVAC systems

Can it handle both AC and DC loads?

Yes, it can switch both AC and DC loads efficiently.

Is it suitable for high-frequency operations?

It operates reliably at a maximum frequency of 1,800 operations per hour.

Will it work with different coil voltages?

This model specifically operates with a coil voltage of 24V AC.

Can it be mounted directly onto a PCB?

Yes, it is designed for easy installation as a PCB mount relay.

Brand	Omron
Coil Voltage	24V ac
Contact Configuration	4PDT
Mounting Type	Soldering
Switching Current	3A
Number of Poles	4
Series	MY4
Latching	No
Terminal Type	PCB Pin
Maximum Switching Voltage AC	250V ac
Maximum Switching Voltage DC	125V dc
Length	21.5mm
Coil Resistance	180Ω
Coil Power	1.1W
Minimum Operating Temperature	-55°C
Maximum Operating Temperature	+70°C
Isolation Coil To Contact	2kV ac
Depth	36mm
Life	500000 (Electrical) Operations, 50000000 (Mechanical) Operations
Contact Material	Gold Plated
