Name: Omron NS5SQ10BV2, NS5 Series HMI Touch Screen HMI - 5.7 in, LCD Display, 320 x 240
Brand: OMRON
SKU: NS5SQ10BV2
Availability: OutOfStock

Omron NS5SQ10BV2, NS5 Series HMI Touch Screen HMI - 5.7 in, LCD Display, 320 x 240

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron NS5SQ10BV2, NS5 Series HMI Touch Screen HMI - 5.7 in, LCD Display, 320 x 240

Part Number : NS5SQ10BV2

Availability: Sold out

Detailed Description
Specifications

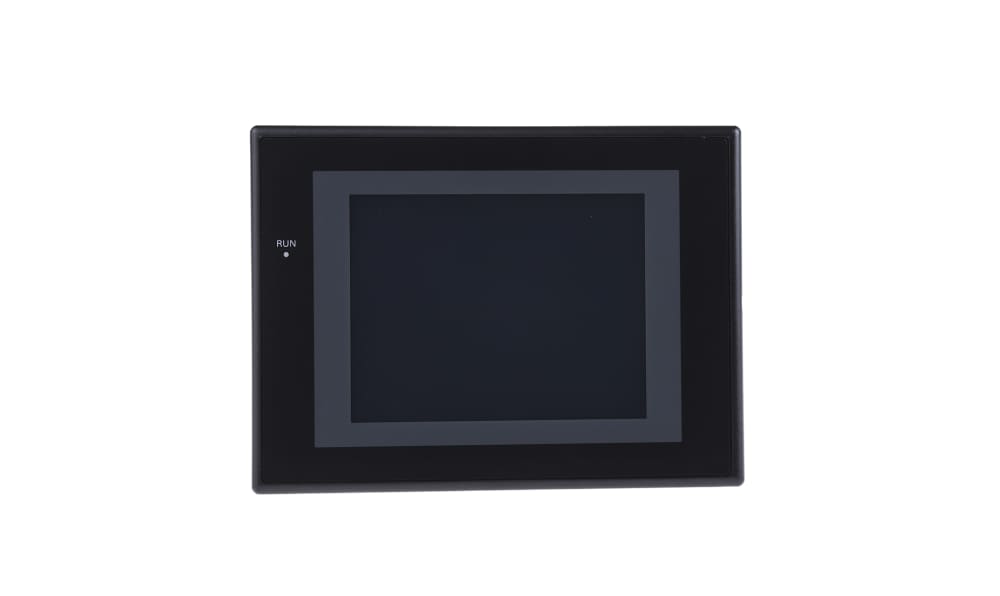

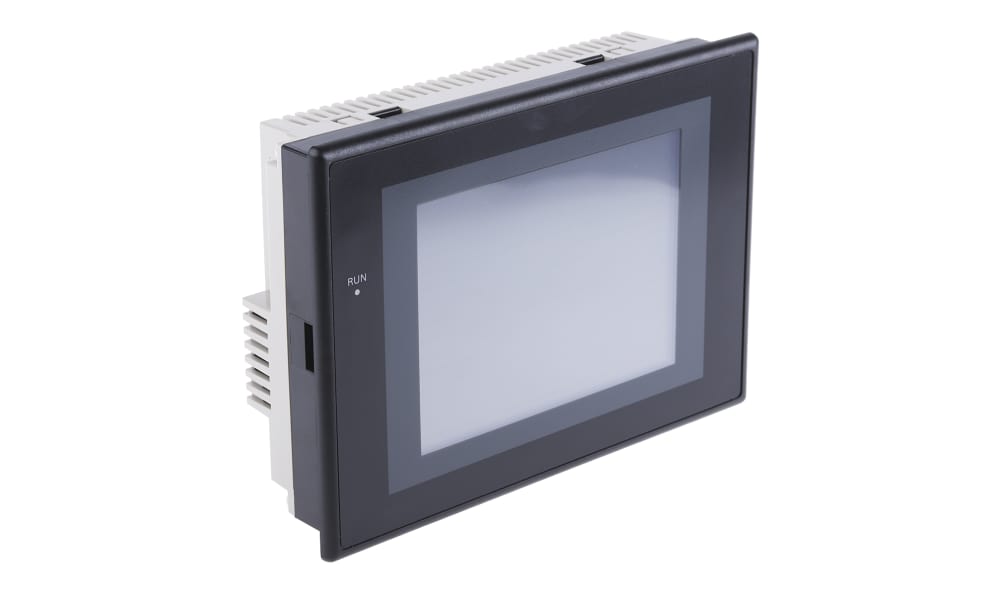

Omron NS5 Series Touch Screen HMI, 5.7 inches Display size, 320 x 240 Resolution - NS5SQ10BV2

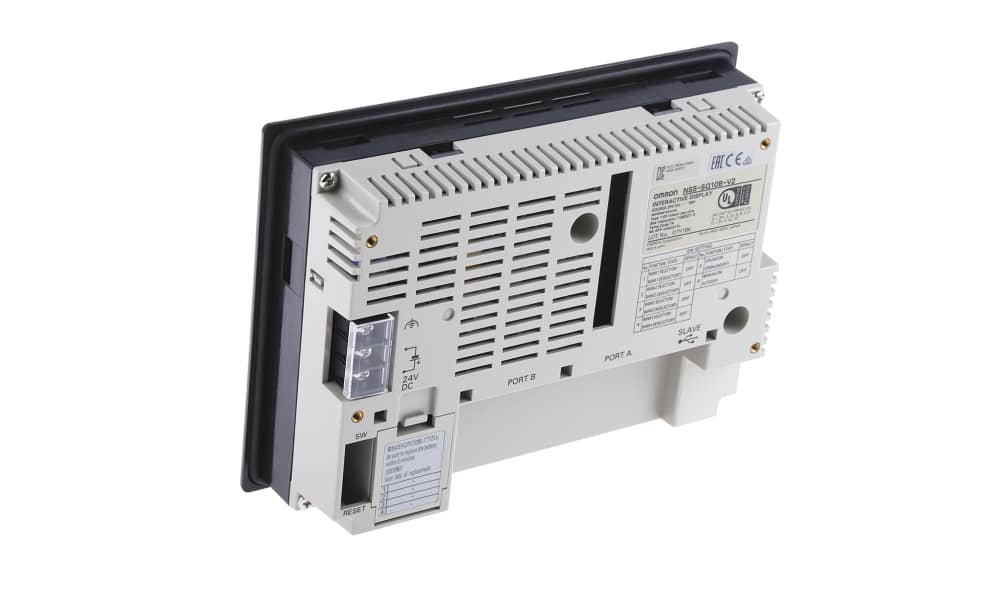

This touch screen HMI offers an intuitive interface for machine management and control in industrial settings. With a 5.7-inch LCD touch panel, this device boasts a resolution of 320 x 240 pixels and is designed for seamless integration in automation applications. It operates on a supply voltage of 24V DC and is rated IP65, ensuring its durability in challenging environments. The compact dimensions of 195 x 142 x 53.8mm make it suitable for various installations.

Features & Benefits

• High-resolution display enables clear visibility of essential data

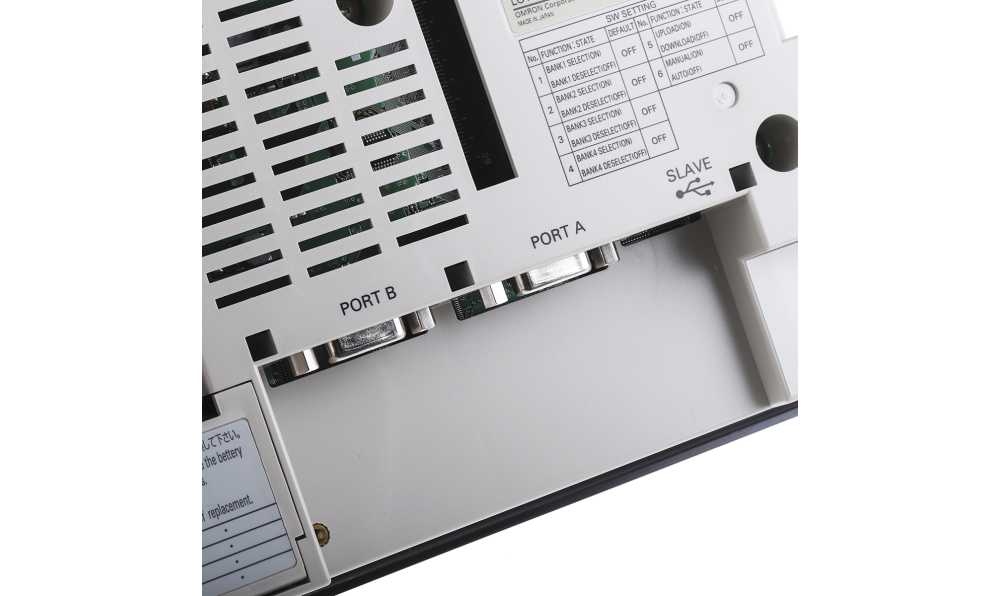

• Integrated RS232 port streamlines connectivity with other devices
• 20 MB onboard memory allows efficient data storage and processing
• Backlit display ensures readability in low-light conditions
• Proven reliability enhances overall operational efficiency
• IP65 rating protects against dust and moisture ingress

Applications

• Used with Omron PLCs for streamlined machine control
• Ideal for machine operation in manufacturing environments
• Suitable for data monitoring in harsh industrial conditions
• Utilised in diverse automation projects for flexibility and efficiency

How does the IP65 rating impact usability in harsh environments?

The IP65 rating signifies dust-tight protection and resistance to water jets, making it ideal for industrial applications where exposure to dust and moisture is common. This ensures longevity and reliability even in challenging settings.

What memory capacity does the device provide for operational data?

The onboard memory of 20 MB allows for effective data handling and monitoring of machine parameters, ensuring that operational data is stored securely for analysis and review.

Can this HMI be linked with other automation components?

Yes, the integration of the RS232 port allows for easy connectivity with various devices, enabling seamless data communication within an automation setup, thus enhancing operational efficiency.

What temperature range can the device withstand during operation?

It can operate effectively in temperatures ranging from 0°C to +50°C, making it suitable for a variety of industrial scenarios without compromising performance.

Is specific software required to create operational screens?

Yes, the CX-Designer software is designed to facilitate easy screen creation and project management, ensuring users can tailor the interface to meet specific operational needs without complex programming.

Brand	Omron
Manufacturer Series	NS5
Product Range	HMI
Display Type	LCD
Manufacturer Part No.	NS5SQ10BV2
Display Resolution	320 x 240
Port Type	RS232
Onboard Memory	20 MB
Backlighting	Yes
Display Size	5.7 in
IP Rating	IP65
Dimensions	195 x 142 x 53.8 mm
Minimum Operating Temperature	0°C
Supply Voltage	24 V dc
Maximum Operating Temperature	+50°C
Display Colour	Black
Depth	53.8mm
