Omron NX-TS3201, NX Series I/O Unit for Use with PLC, Thermocouple, None

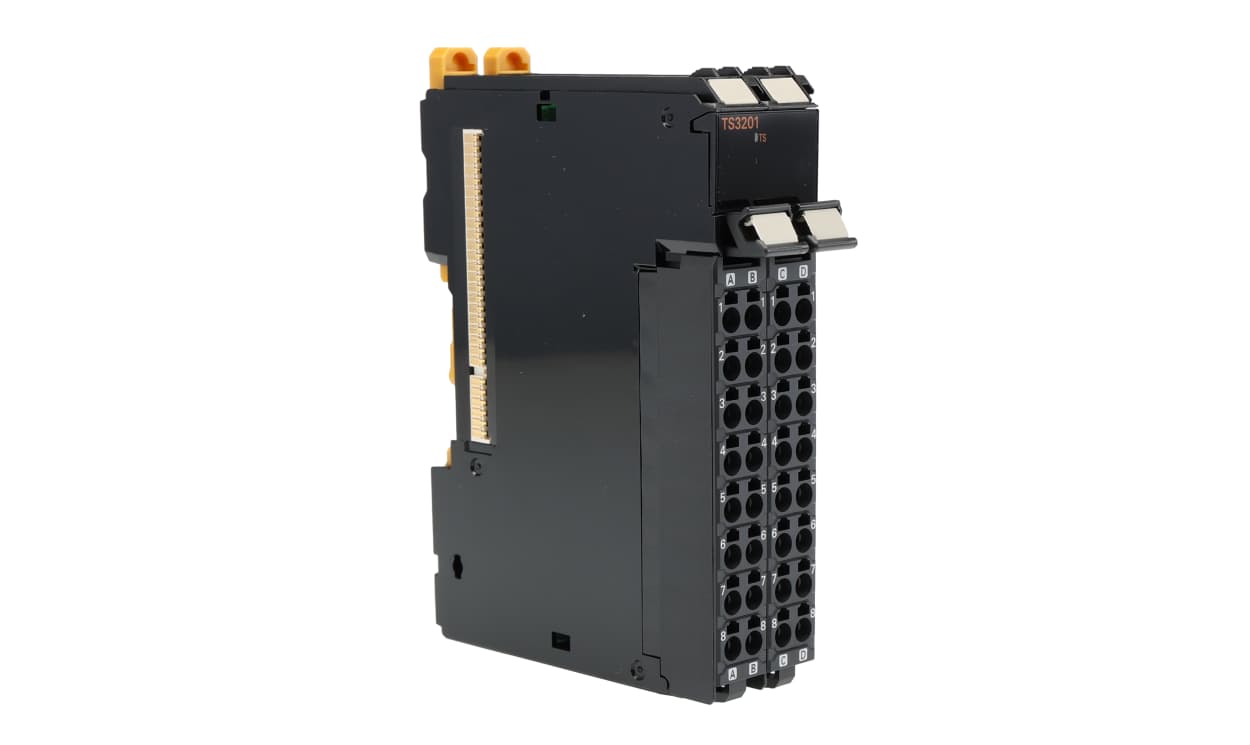

Name: Omron NX-TS3201, NX Series I/O Unit for Use with PLC, Thermocouple, None
Brand: OMRON
SKU: NX-TS3201
Availability: OutOfStock

Part Number : NX-TS3201

4 Temperature Sensor Inputs, Pt100 (3-wire), Pt1000, resolution 0.1 Â°C, 250 ms/Unit, screwless push-in connectors, 24 mm wide

Availability: Sold out

Detailed Description
Specifications
Features

Omron Series NX I/O Unit, 4 Thermocouple Inputs, Panel Mount - NX-TS3201

This I/O unit is an essential component for automation control systems, facilitating high-speed and high-precision temperature measurement. Designed for panel mounting and compatible with PLCs, it accommodates up to four thermocouple sensor inputs, enabling efficient data handling. Its compact dimensions of 24 x 100 x 71 mm make it suitable for a variety of applications requiring advanced sensor integration.

Features & Benefits

• Allows seamless integration with Omron's automation control systems
• Features four thermocouple sensor inputs for versatile data acquisition
• Supports high-temperature operations up to +55°C
• Provides exceptional accuracy with a resolution of 0.1°C
• Designed for easy installation with screwless clamping terminals
• Ensures reliable performance in industrial environments

Applications

• Used for monitoring temperature in manufacturing processes
• Suitable for integration within thermal management systems
• Ideal for use in industrial automation requiring precise temperature control
• Can be used in systems for temperature input in various PLCs

How does this unit ensure accurate temperature readings?

It incorporates advanced cold junction compensation methods, which stabilise temperature readings by accounting for discrepancies that may arise due to temperature variations elsewhere in the system. Additionally, the device features a high input impedance to maintain signal integrity.

What types of thermocouples is this unit compatible with?

It supports several thermocouple types including K, J, T, and more, providing flexibility for various applications across different industries. This versatility allows users to select the appropriate sensor according to their specific measurement needs.

Can this I/O unit operate in high humidity environments?

Yes, it is designed to function effectively in ambient humidity levels ranging from 10% to 95% without condensation, making it highly reliable for industrial settings where environmental conditions can fluctuate.

Brand	Omron
Accessory Type	Sensor Inputs
Range	NX
Series	NX
Input Type	Thermocouple
Number of Inputs	4
Output Type	None
Number of Outputs	0
For Use With	PLC
Mounting Type	Panel Mount
Maximum Operating Temperature	+55°C
Dimensions	24 x 100 x 71 mm

4 Temperature Sensor Inputs, Pt100 (3-wire), Pt1000, resolution 0.1 °C, 250 ms/Unit, screwless push-in connectors, 24 mm wide
