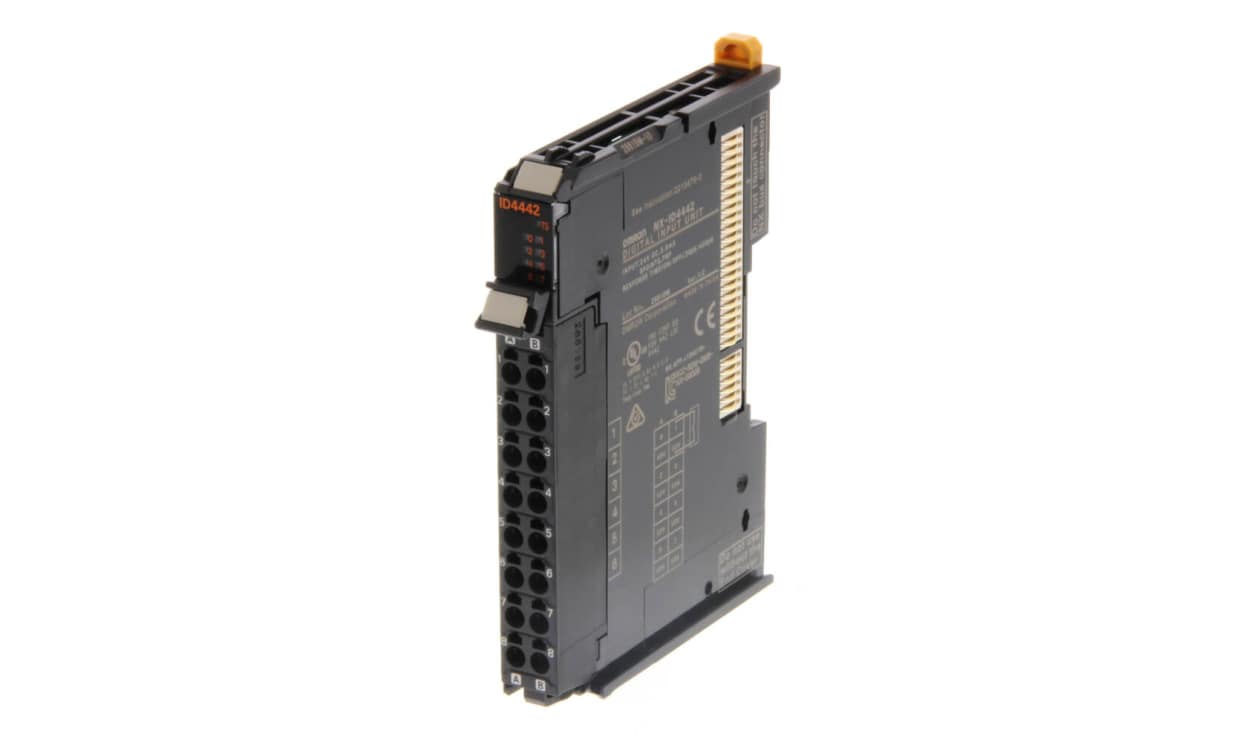

Name: Omron NXID4442, NX Series Digital I/O Module for Use with CJ PLC, EtherCAT Coupler Unit, NX Series CPU Unit, Digital, 24 V dc
Brand: OMRON
SKU: NXID4442
Availability: OutOfStock

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron NXID4442, NX Series Digital I/O Module for Use with CJ PLC, EtherCAT Coupler Unit, NX Series CPU Unit, Digital, 24 V dc

Part Number : NXID4442

Availability: Sold out

Detailed Description
Specifications

NX-ID Digital Input Units

A range of NX-ID series Digital input units from Omron. These NX-ID digital I/O units are for high-speed synchronous control & general purpose and selectable synchronous I/O refreshing or free run refreshing is possible by connecting with the EtherCAT coupler. The digtal I/O units are available with 4 or 8 digital inputs. All digital I/O units are reliable and excellent quality

Features & Benefits

High-speed I/O refreshing is possible by connecting with the EtherCAT Coupler.

I/O refreshing can be synchronized with the control cycle of the Controller. (Synchronous refreshing)

ON/OFF response time of the high-speed model is 100 μs max, which enables high-speed, high-precision control.

The removable screwless terminal block improves maintenance.

Screw-less clamp terminal block significantly reduces wiring work.

12-mm-wide unit can save space.

The lineup including 4-point, 8-point, and 16-point types enables ideal system configuration for your system.

Omron Series NX Digital I/O Module, 8 Inputs, Digital Input Type - NXID4442

This digital I/O module delivers exceptional performance in industrial automation applications. Specifically designed for the NX series, it offers eight digital inputs and operates at a supply voltage of 24V DC. With a compact panel-mount design measuring 12 x 71 x 100mm, this module provides an efficient solution for communication in various settings, maintaining a maximum operating temperature of +55°C.

Features & Benefits

• High-speed data refresh with a maximum ON/OFF response time of 100 ns
• Synchronous I/O refreshing synchronised with the controller’s control cycle
• Detachable screwless terminal block simplifies installation and maintenance
• Space-efficient design accommodates up to 16 inputs in just 12mm width
• Compatible with CJ PLC and EtherCAT coupler units for versatile integration
• Robust construction ensures reliable operation in high-temperature environments

Applications

• Ideal for integrating digital signals in factory automation
• Suitable for communication with CJ PLC and EtherCAT systems
• Used for high-speed synchronous control in various machinery
• Perfect for requiring precise timing and input monitoring

How does the response time impact my control systems?

The module's high-speed response time of 100 ns allows for accurate control in critical applications where timing is crucial, ensuring minimal delays in signal processing.

Can this module be used with different types of sensors?

Yes, it supports various sensor configurations, making it versatile for different applications in automation by accommodating both NPN and PNP sensors.

What type of maintenance is required for this module?

The detachable screwless terminal block allows for easy wiring changes and maintenance, requiring minimal effort to ensure connections remain secure.

How many inputs can I connect while maintaining high performance?

This module supports up to eight digital inputs while maintaining high precision, making it suitable for demanding tasks without sacrificing performance.

What are the environmental considerations for using this module?

The module is designed to operate effectively in ambient conditions up to +55°C and is built to withstand environments with humidity levels from 10% to 95%, ensuring reliability in industrial settings.

Omron NX Series

Brand	Omron
Accessory Type	Digital I/O Module
Series	NX
Number of Inputs	8
Input Type	Digital
For Use With	CJ PLC, EtherCAT Coupler Unit, NX Series CPU Unit
Supply Voltage	24 V dc
Application	Communication
Mounting Type	Panel Mount
Maximum Operating Temperature	+55°C
Dimensions	12 x 71 x 100 mm
