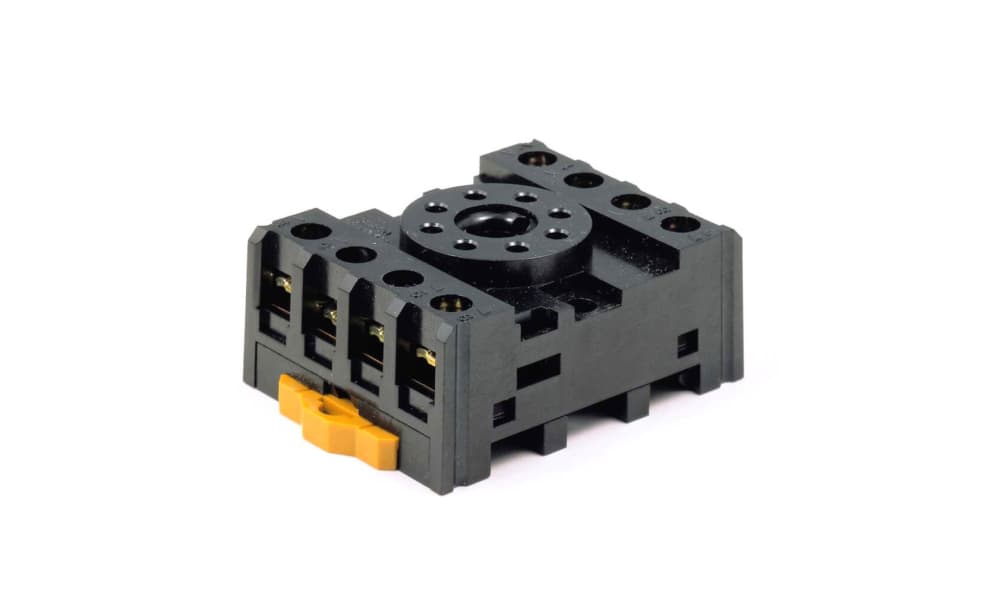

Omron PF083A-E, MKS 8 Pin 250V ac DIN Rail Relay Socket, for use with MK2PD-I, MK2PD-S, MK2P-I, MK2PND-I, MK2PND-S, MK2PN-I,
Part Number : PF083A-E
Socket, DIN rail/surface mounting, 8-pin, screw terminals (standard)
For pricing, please contact our experts.
8 Pin DPDT Ratchet Relay
2 pole plug-in relay, each contact in the contact mechanism performs alternate make-break operation at each pulse input and is thus ideal for alternate operation or transfer/switching operation of a motor.
Contact Rating 5A@ 220 V ac/ 24 V dc
Unique ratchet mechanism assures positive alternate transfer/switching operation
Minimum pulse application = 100 ms
Quick response speed allows continuous use of the relay
Dielectric strength of 2000 V ac
Low power consumption (a.c. approx. 6.4 VA, d.c. approx. 3.9 W)
Electrical Life: 5 x 105 steps (min)
Mechanical Life: 5 x 106 steps (min)
Max Switch Power: 1100 VA, 250 V ac; 120 W, 250 V dc
Operating temperature range -10 to +55°C
Unique ratchet mechanism assures positive alternate transfer/switching operation
Minimum pulse application = 100 ms
Quick response speed allows continuous use of the relay
Dielectric strength of 2000 V ac
Low power consumption (a.c. approx. 6.4 VA, d.c. approx. 3.9 W)
Electrical Life: 5 x 105 steps (min)
Mechanical Life: 5 x 106 steps (min)
Max Switch Power: 1100 VA, 250 V ac; 120 W, 250 V dc
Operating temperature range -10 to +55°C
OMRON Relay Socket, 52 (H) x 41 (W) x 21mm (D), Screw Terminals, 8-Pin - PF083A-E
It's a cinch to mount your switchgear using this relay socket from OMROM. Thanks to its plug-in technology, relay installation and removal is quick and easy with minimal use of tools. The socket acts as an electrical interface, making it a breeze to replace your switching component without complicated rewiring. It's also insulated for protection against electric shocks. This mounting accessory is compatible with OMRON's MK range of general-purpose relays, which feature built-in mechanical indicators for convenient contact operation checking. You'll find components like this one commonly used in control systems in buildings and production facilities.
Features & Benefits
• Snaps onto a DIN rail for installation in a flash
• Finger-protected to reduce the chance of you accidentally touching live wires
• Maximises panel packing efficiency with compact dimensions of 52 (H) x 41 (W) x 21mm (D)
• Finger-protected to reduce the chance of you accidentally touching live wires
• Maximises panel packing efficiency with compact dimensions of 52 (H) x 41 (W) x 21mm (D)
Applications
• Data and communication centres
• Research and testing facilities
• Industrial automation
• Food and beverage industry
• Research and testing facilities
• Industrial automation
• Food and beverage industry
What type of terminals does this relay socket have?
It has standard screw terminals that make wiring straightforward. They resist vibration, so you can rely on their holding power in harsh operating conditions.
