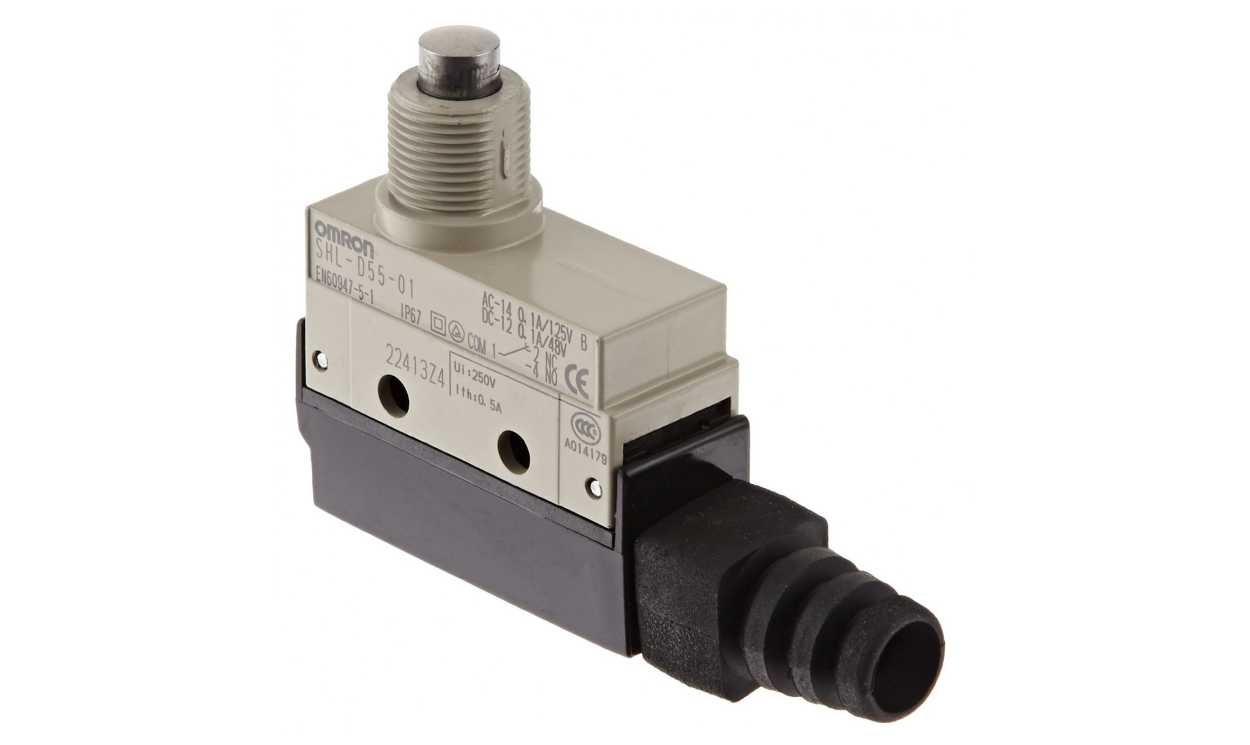

Omron SHL-D55-01, SHL Series Plunger Limit Switch, NO/NC, IP67, SPDT, Zinc Housing, 125V ac ac Max, 0.1A Max

Part Number : SHL-D55-01

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron SHL Series Limit Switch, SPDT Pole Configuration, IP67 Rating - SHL-D55-01

This limit switch is an essential component for automation tasks, designed to function reliably in various settings. Equipped with a plunger actuator, it operates in either a normally open or normally closed configuration. Built to withstand harsh environments, it features an IP67 rating for dust and water resistance. The robust zinc housing further ensures durability, making it suitable for long-term use.

Features & Benefits

• SPDT configuration allows for flexible application options
• Snap action provides quick and reliable switching
• IP67 rating protects against dust and moisture
• Operating force of 9.81N ensures robust performance
• Maximum current of 0.1A is ideal for low power circuits
• Suitable for 125V AC for versatile electrical compatibility

Applications

• Ideal for use in conveyor systems
• Frequently used in manufacturing automation processes
• Suitable for safety interlocks in machinery
• Utilised in robotic systems for precise positioning
• Employed in various electrical control systems

What is the significance of the plunger actuator design?

The plunger actuator design facilitates easy actuation and precise control of the switch, making it ideal for applications requiring accurate positioning and reliable responsiveness.

How does the IP67 rating enhance the product's longevity?

The IP67 rating indicates that the switch is protected against dust ingress and can withstand immersion in water, significantly extending its operational life in demanding environments.

What type of electrical circuits is this component compatible with?

It is designed for use in circuits operating at a maximum of 125V AC, making it suitable for various applications in electrical and automation systems.

In what environments can this limit switch be effectively used?

The durable zinc housing allows the switch to perform effectively in industrial settings, including those with exposure to moisture, dust, and mechanical wear.

How does the operating force affect the switch’s function?

An operating force of 9.81N provides a good balance between sensitivity and robustness, ensuring reliable actuation without unintended triggering, thus ensuring precise functionality in applications.

Brand	Omron
Actuator Type	Plunger
Pole and Throw Configuration	SPDT
Normal State Configuration	NO/NC
IP Rating	IP67
Maximum Current	0.1A
Housing Material	Zinc
Maximum AC Voltage	125V ac
Series	SHL
Action Type	Snap Action
Operating Force	9.81 N
