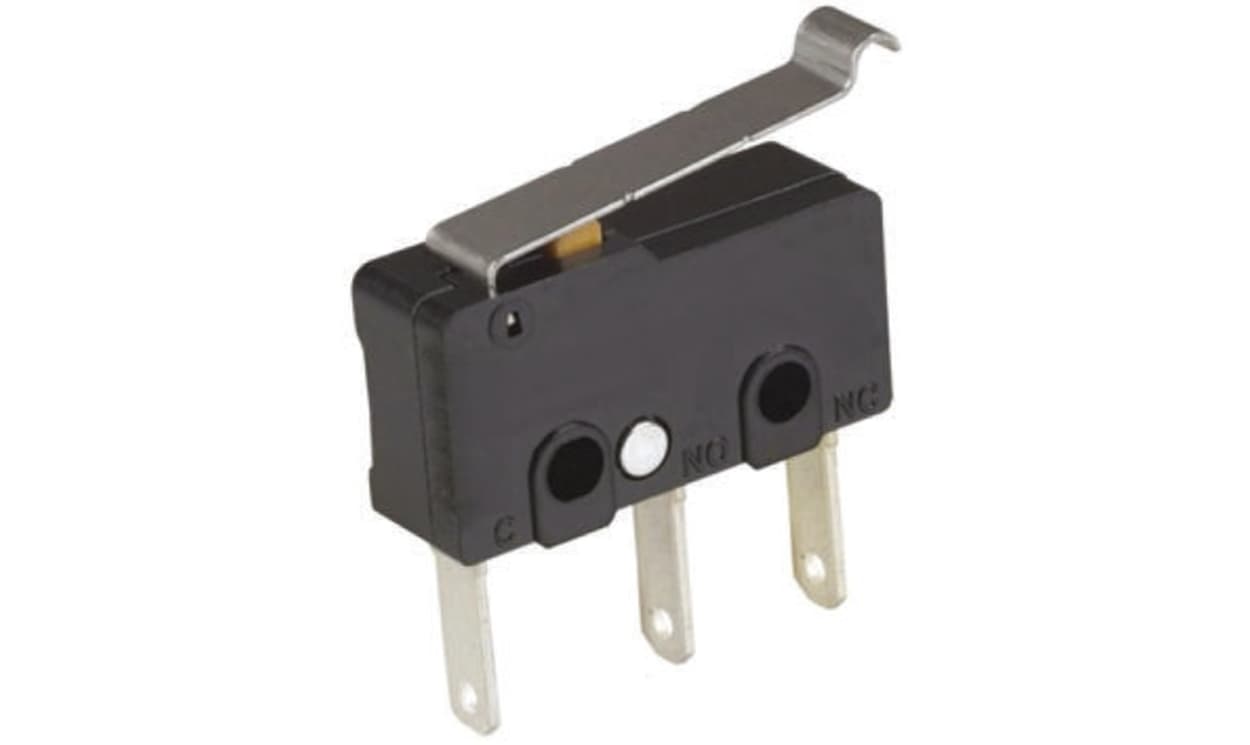

Omron SS-01GL13-ET, Simulated Roller Lever Micro Switch, Tab Terminal, 100 mA @ 30 V dc, SPDT, IP40

Name: Omron SS-01GL13-ET, Simulated Roller Lever Micro Switch, Tab Terminal, 100 mA @ 30 V dc, SPDT, IP40
Brand: OMRON
SKU: SS-01GL13-ET
Availability: OutOfStock

Part Number : SS-01GL13-ET

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron SS Subminiature Basic Switch (100 mA)

Incorporating simple and stable two split springs which enable a long service life (30,000,000 operations)
A variety of models with low operating force to high operating force are available
Solder, quick connect terminals (#110) and PCB terminals are available

Brand	Omron
Actuator Type	Simulated Roller Lever
Terminal Type	Tab
Contact Current Rating	100 mA @ 30 V dc
Contact Configuration	SPDT
IP Rating	IP40
Operating Force	0.08 N
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+85°C
Contact Material	Gold Alloy
Mechanical Life	30000000Operations
Release Force	0.01N
Operating Temperature Range	-25 → +85°C

Omron SS-01GL13-ET, Simulated Roller Lever Micro Switch, Tab Terminal, 100 mA @ 30 V dc, SPDT, IP40

DOWNLOAD CATALOG
