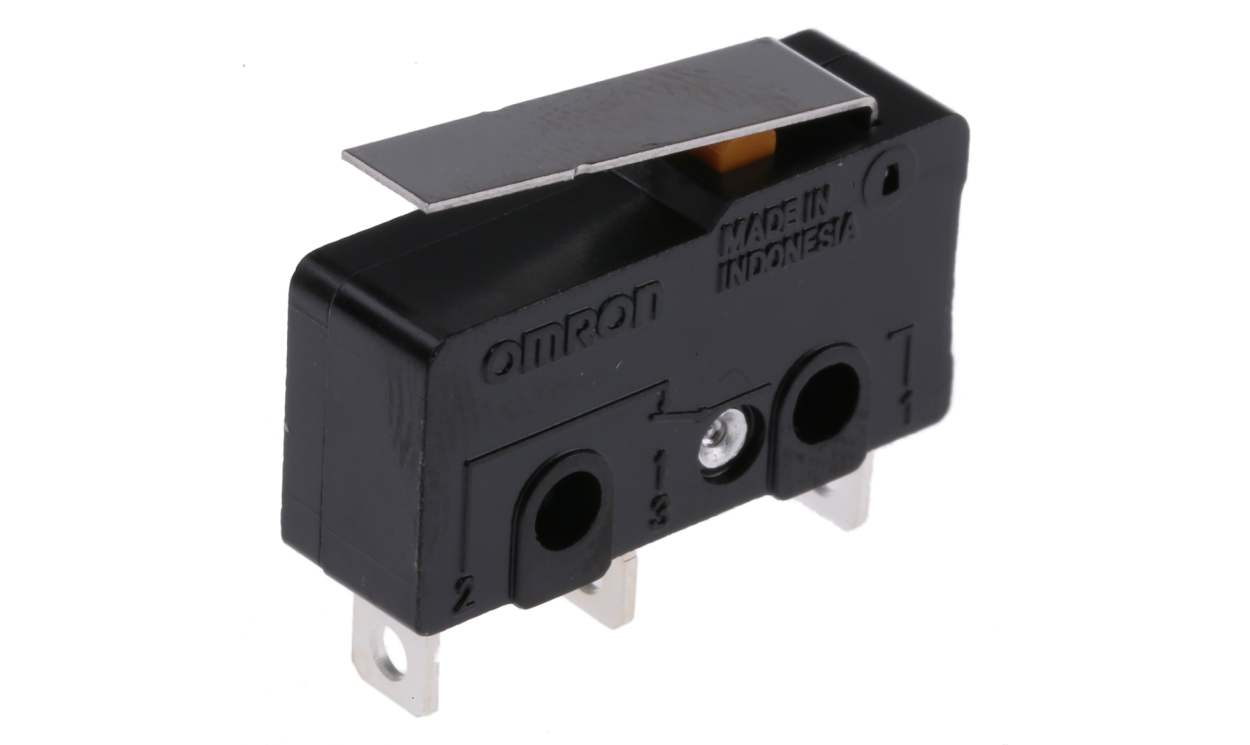

Omron SS-10GL, Hinge Lever Micro Switch, Solder Terminal, 10.1 A @ 250 V ac, SPDT, IP40

Name: Omron SS-10GL, Hinge Lever Micro Switch, Solder Terminal, 10.1 A @ 250 V ac, SPDT, IP40
Brand: OMRON
SKU: SS-10GL
Availability: OutOfStock

Part Number : SS-10GL

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron SS Subminiature Basic Switch (10.1 A)

Incorporating simple and stable two split springs which enable a long service life (30,000,000 operations)
A variety of models with low operating force to high operating force are available
Solder, quick connect terminals (#110) and PCB terminals are available

Brand	Omron
Actuator Type	Hinge Lever
Terminal Type	Solder
Contact Current Rating	10.1 A @ 250 V ac
Contact Configuration	SPDT
IP Rating	IP40
Operating Force	0.49 N
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+85°C
Contact Material	Silver Alloy
Mechanical Life	10000000Operations
Release Force	0.06N
Operating Temperature Range	-25 → +85°C

Omron SS-10GL, Hinge Lever Micro Switch, Solder Terminal, 10.1 A @ 250 V ac, SPDT, IP40
