Omron SS-5GL2-F, Roller Lever Micro Switch, Solder Terminal, 5 A @ 125 V ac, SPDT, IP40

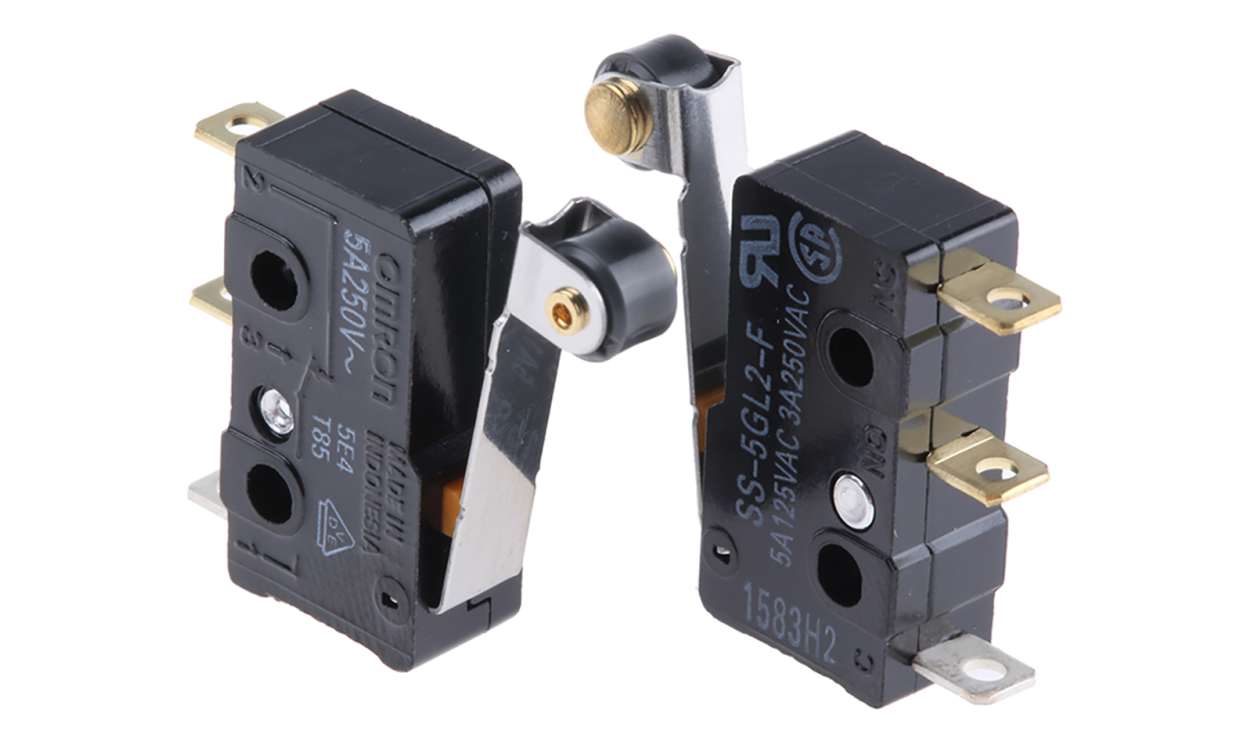

Name: Omron SS-5GL2-F, Roller Lever Micro Switch, Solder Terminal, 5 A @ 125 V ac, SPDT, IP40
Brand: OMRON
SKU: SS-5GL2-F
Availability: OutOfStock

Part Number : SS-5GL2-F

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron SS Subminiature Basic Switch
(5 A)

Incorporating simple and stable two split springs which enable a long service life (30,000,000 operations)
A variety of models with low operating force to high operating force are available
Solder, quick connect terminals (#110) and PCB terminals are available

Brand	Omron
Actuator Type	Roller Lever
Terminal Type	Solder
Contact Current Rating	5 A @ 125 V ac
Contact Configuration	SPDT
IP Rating	IP40
Operating Force	0.16 N
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+85°C
Contact Material	Silver
Mechanical Life	30000000Operations
Release Force	0.02N
Operating Temperature Range	-25 → +85°C
