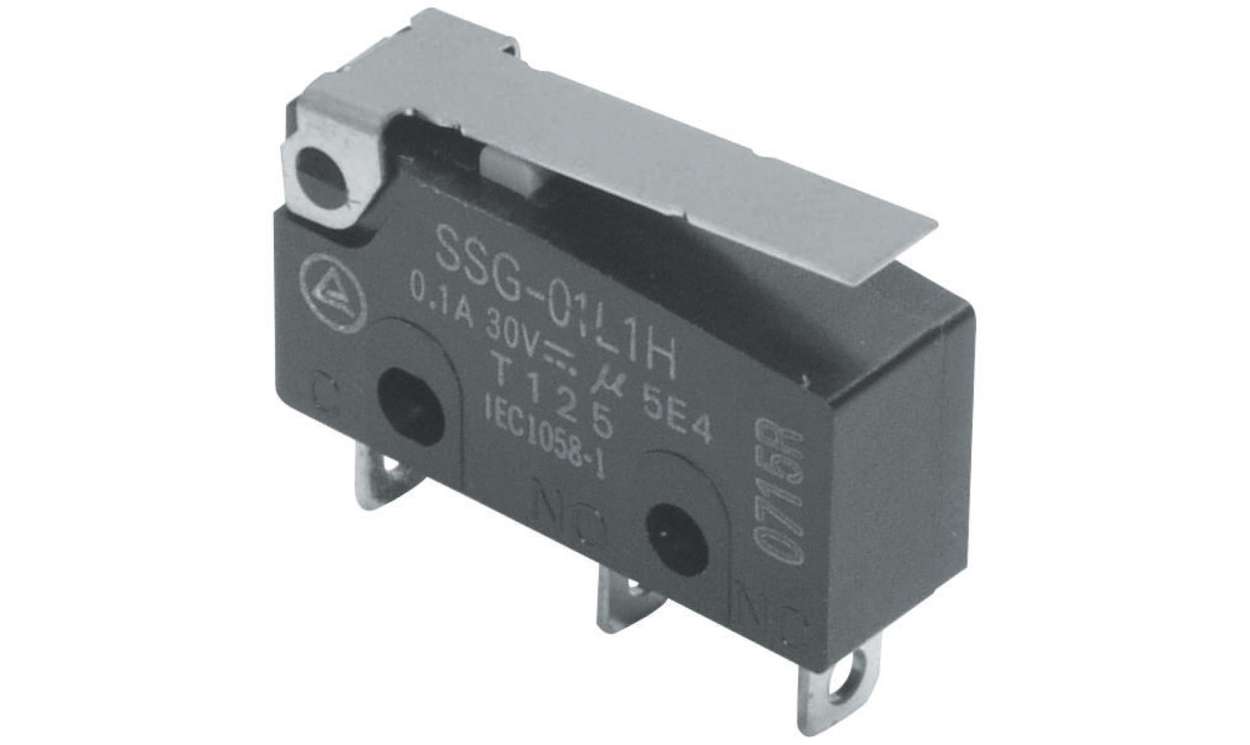

Omron SSG-01L1H, Hinge Lever Subminiature Micro Switch, Solder Terminal, 100 mA @ 30 V dc, SPDT, IP40

Name: Omron SSG-01L1H, Hinge Lever Subminiature Micro Switch, Solder Terminal, 100 mA @ 30 V dc, SPDT, IP40
Brand: OMRON
SKU: SSG-01L1H
Availability: OutOfStock

Part Number : SSG-01L1H

Availability: Sold out

Detailed Description
Specifications
Downloads

Subminiature Microswitch

Sub-miniature microswitch in V4 style housing

RoHS compliant
Conforms to EN61058-1
PCB terminal models are resistant to flux
A wide operating temperature range of -25°C to 125°C
Contact configuration: SPDT
Dimensions (body): H9.9mm, W19.8mm, D6.4mm

Approvals

UL, CSA, VDE, TUV, BEAB, IMQ

Brand	Omron
Actuator Type	Hinge Lever
Terminal Type	Solder
Contact Current Rating	100 mA @ 30 V dc
Contact Configuration	SPDT
IP Rating	IP40
Operating Force	0.6 N
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+125°C
Contact Material	Gold Alloy
Mechanical Life	10000000Operations
Release Force	0.06N
Operating Temperature Range	-25 → +125°C

Omron SSG-01L1H, Hinge Lever Subminiature Micro Switch, Solder Terminal, 100 mA @ 30 V dc, SPDT, IP40

DOWNLOAD CATALOG
