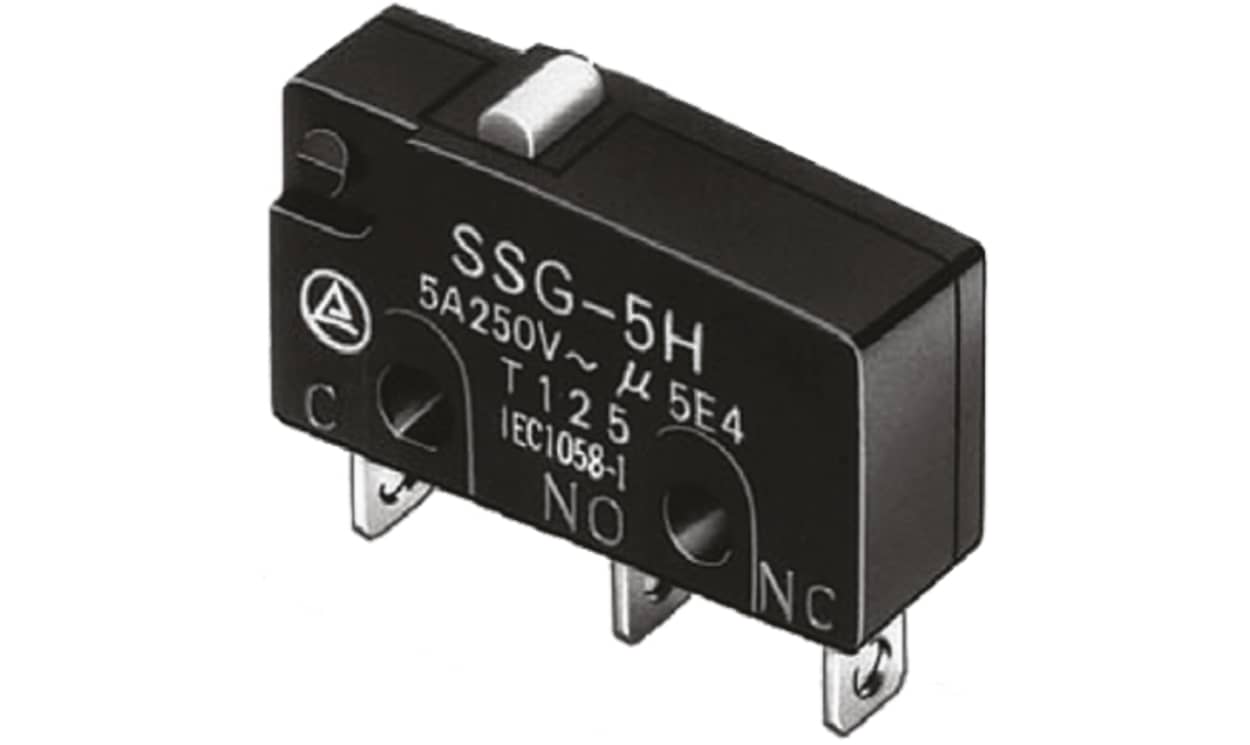

Omron SSG-5H-5, Pin Plunger Subminiature Micro Switch, Solder Terminal, 5 A @ 125 V ac, SPDT, IP40

Name: Omron SSG-5H-5, Pin Plunger Subminiature Micro Switch, Solder Terminal, 5 A @ 125 V ac, SPDT, IP40
Brand: OMRON
SKU: SSG-5H-5
Availability: OutOfStock

Part Number : SSG-5H-5

Availability: Sold out

Detailed Description
Specifications
Downloads

Subminiature Microswitch

Sub-miniature microswitch in V4 style housing

RoHS compliant
Conforms to EN61058-1
PCB terminal models are resistant to flux
A wide operating temperature range of -25°C to 125°C
Contact configuration: SPDT
Dimensions (body): H9.9mm, W19.8mm, D6.4mm

Approvals

UL, CSA, VDE, TUV, BEAB, IMQ

Brand	Omron
Actuator Type	Pin Plunger
Terminal Type	Solder
Contact Current Rating	5 A @ 125 V ac
Contact Configuration	SPDT
IP Rating	IP40
Operating Force	0.5 N
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+125°C
Contact Material	Silver
Mechanical Life	10000000Operations
Release Force	0.04N
Operating Temperature Range	-25 → +125°C
