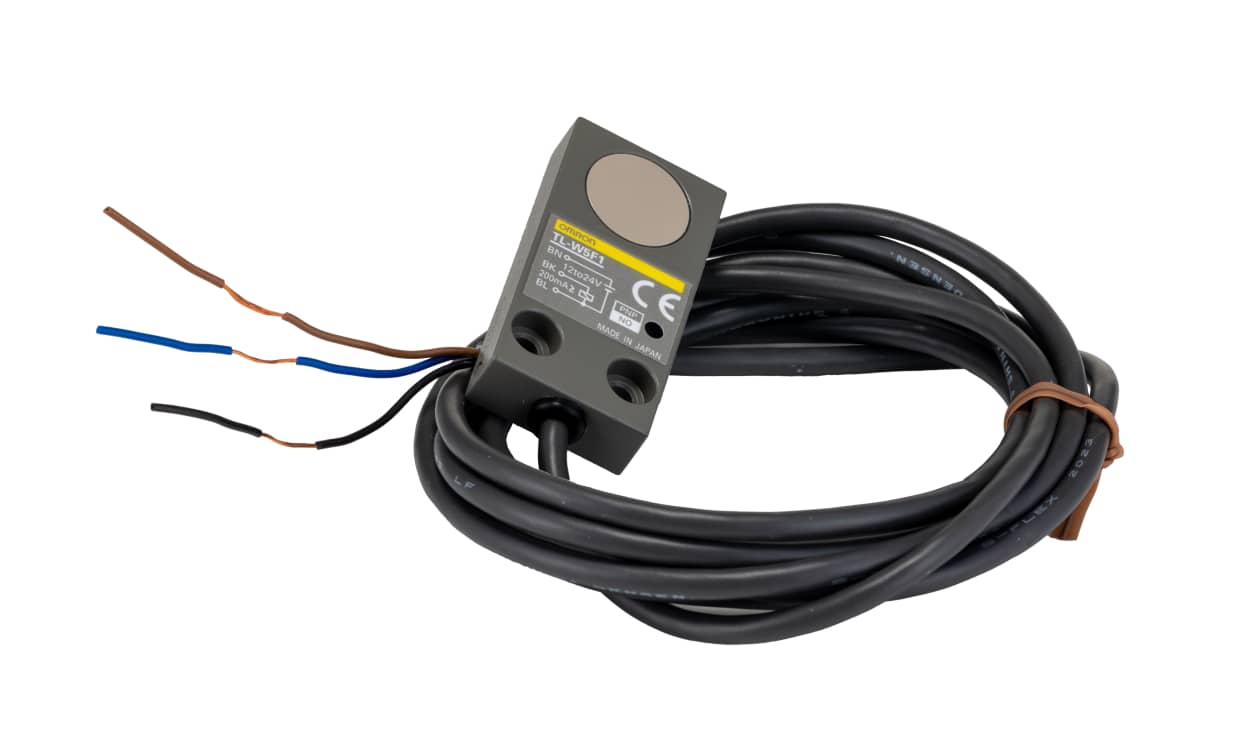

Omron TL-W5F1, Inductive Block Proximity Sensor, 5 mm Detection, PNP NO, 12 → 24 V dc

Part Number : TL-W5F1

Availability: Sold out

Detailed Description
Specifications

Omron TL-W Series Proximity Sensor, PNP Output, 5mm Detection Range - TL-W5F1

This proximity sensor is designed for accurate detection in various automation applications. Its inductive technology reliably identifies metallic objects within a 5mm range, making it suitable for integration into machinery and industrial setups. The sensor’s sturdy design and IP67 rating ensure efficient performance in challenging environments, aiding the seamless operation of automated systems.

Features & Benefits

• Detects objects with a 5mm sensing range for precise measurement
• PNP output type allows easy integration with control systems
• Aluminium housing provides durability against environmental factors
• Shielded design reduces interference for stable operation
• Operates within a supply voltage of 12-24V DC for wide adaptability
• Maximum switching frequency of 300Hz facilitates quick response times

Applications

• Applied in automated assembly lines for accurate part placement
• Effective for detecting components in packaging machinery
• Utilised in robotics to enhance object detection and positioning
• Incorporated into safety systems to mitigate equipment failures

Is this sensor suitable for outdoor use?

Yes, its IP67 rating makes it appropriate for outdoor applications.

What voltage range does it operate within?

It functions effectively within a supply voltage range of 12-24V DC.

Can it be mounted in different ways?

The sensor can be flush mounted, allowing for flexible installation options.

How does it handle reverse polarity?

The product features reverse polarity protection to avoid damage during installation.

What is the maximum temperature it can withstand?

It operates optimally in environments with temperatures up to +70°C.

Brand	Omron
Sensor Technology	Inductive
Body Style	Block
Detection Range	5 mm
Digital Switching Output Type	PNP
Output Function	NO
Cable Length	5m
Connection Type	Pre-Cabled
Supply Voltage	12 → 24 V dc
Length	24.9mm
IP Rating	IP67
Mounting Type	Flush
Housing Material	Aluminium
Width	10mm
Maximum DC Voltage	24V
Minimum Operating Temperature	-25°C
Switching Current	100 mA
Series	TL-W
Switching Frequency	300 Hz
Reverse Polarity Protection	Yes
