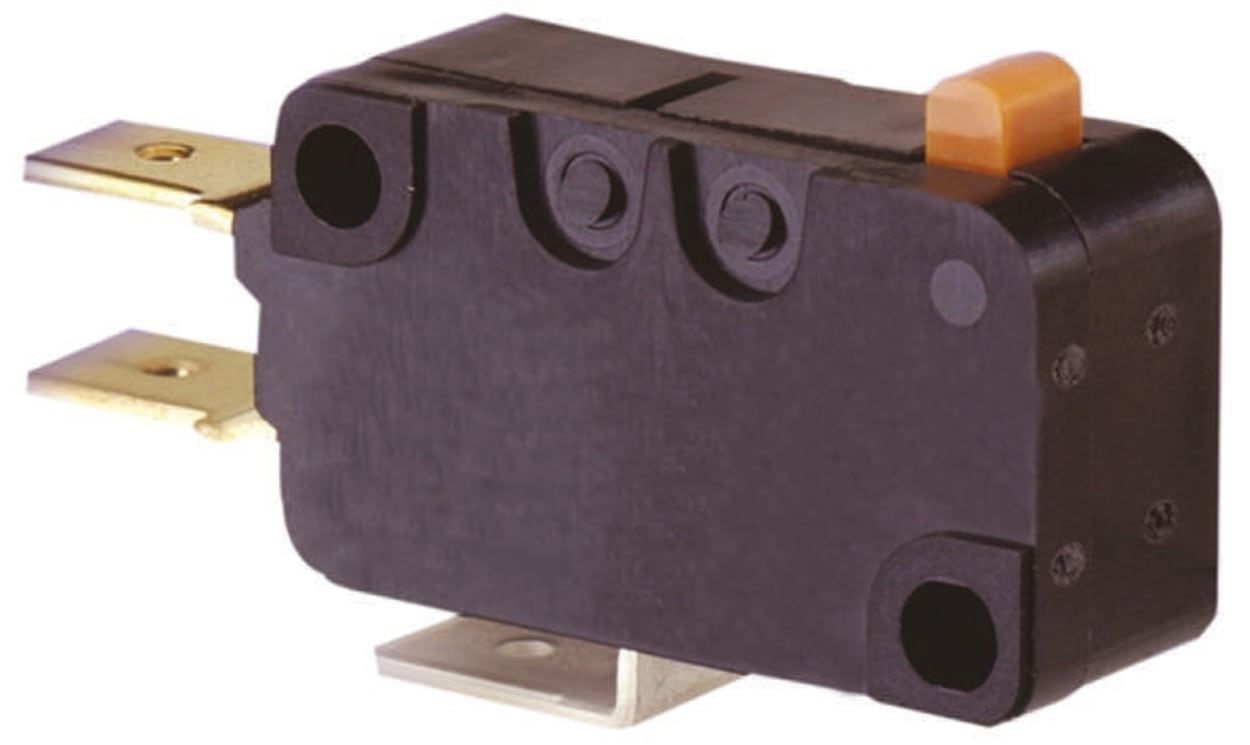

Omron V-16-3C5, Pin Plunger Micro Switch, Tab Terminal, 16 A @ 250 V ac, SPST, IP40

Name: Omron V-16-3C5, Pin Plunger Micro Switch, Tab Terminal, 16 A @ 250 V ac, SPST, IP40
Brand: OMRON
SKU: V-16-3C5
Availability: OutOfStock

Part Number : V-16-3C5

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron Miniature Basic Switch (16A)

16 A contact rating

Brand	Omron
Actuator Type	Pin Plunger
Terminal Type	Tab
Contact Current Rating	16 A @ 250 V ac
Contact Configuration	SPST
IP Rating	IP40
Operating Force	1.96 N
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+80°C
Contact Material	Silver Alloy
Case Material	Thermoplastic
Mechanical Life	50000000Operations
Release Force	0.49N
Operating Temperature Range	-25 → +80°C

Omron V-16-3C5, Pin Plunger Micro Switch, Tab Terminal, 16 A @ 250 V ac, SPST, IP40

DOWNLOAD CATALOG
