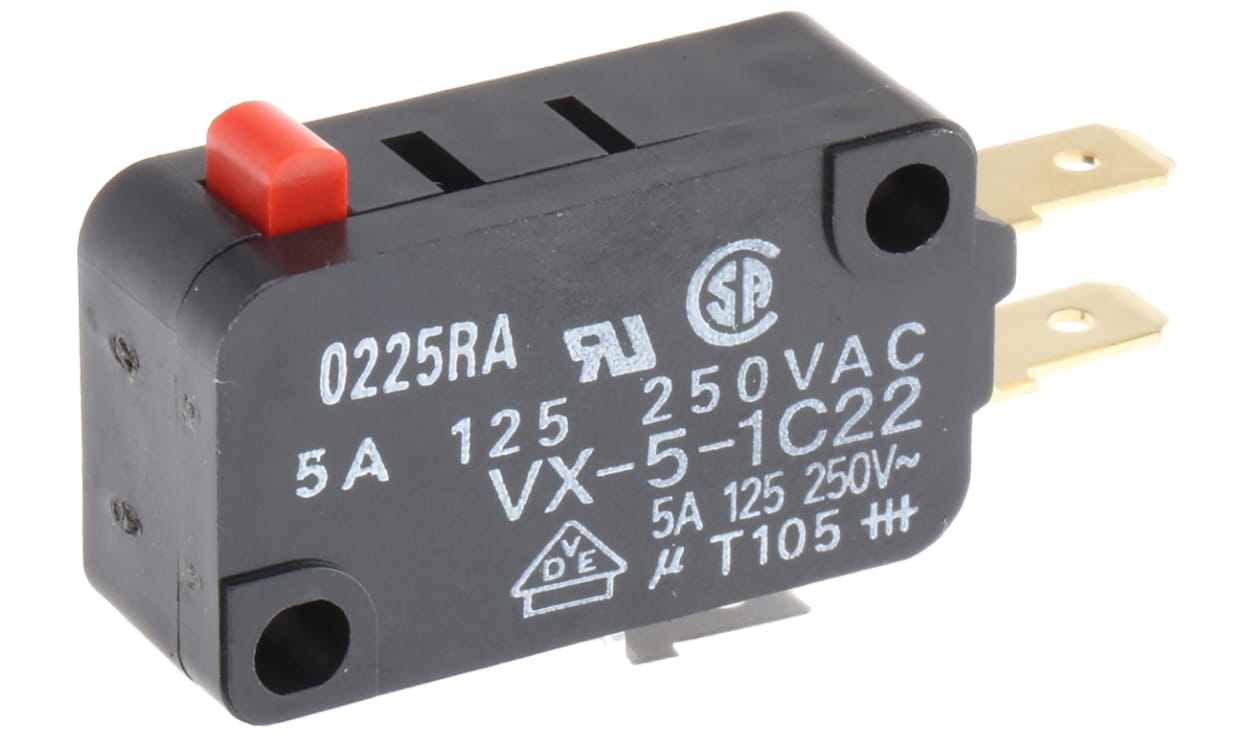

Omron VX-5-1C22, Pin Plunger Micro Switch, Tab Terminal, 5 A @ 250 V ac, SPDT, IP40

Name: Omron VX-5-1C22, Pin Plunger Micro Switch, Tab Terminal, 5 A @ 250 V ac, SPDT, IP40
Brand: OMRON
SKU: VX-5-1C22
Availability: OutOfStock

Part Number : VX-5-1C22

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron Miniature - Low Operating Force

Compact basic switch with an ultra low operating force

Ultra low operating force
V3 style housing
RoHS compliant
Contact rating: 5A @ 250Vac resistive
Contact configuration: SPDT
Solder/Quick - Connect terminals (#187)

Approvals

Approvals: UL, CSA, VDE, TUV, SEMKO

Brand	Omron
Actuator Type	Pin Plunger
Terminal Type	Tab
Contact Current Rating	5 A @ 250 V ac
Contact Configuration	SPDT
IP Rating	IP40
Operating Force	0.25 N
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+80°C
Contact Material	Silver Alloy
Mechanical Life	50000000Operations
Release Force	0.03N
Operating Temperature Range	-25 → +80°C
