Omron WLD28-G-N, WL Series Roller Plunger Limit Switch, NO/NC, IP67, SPST, 500V ac Max, 10A Max

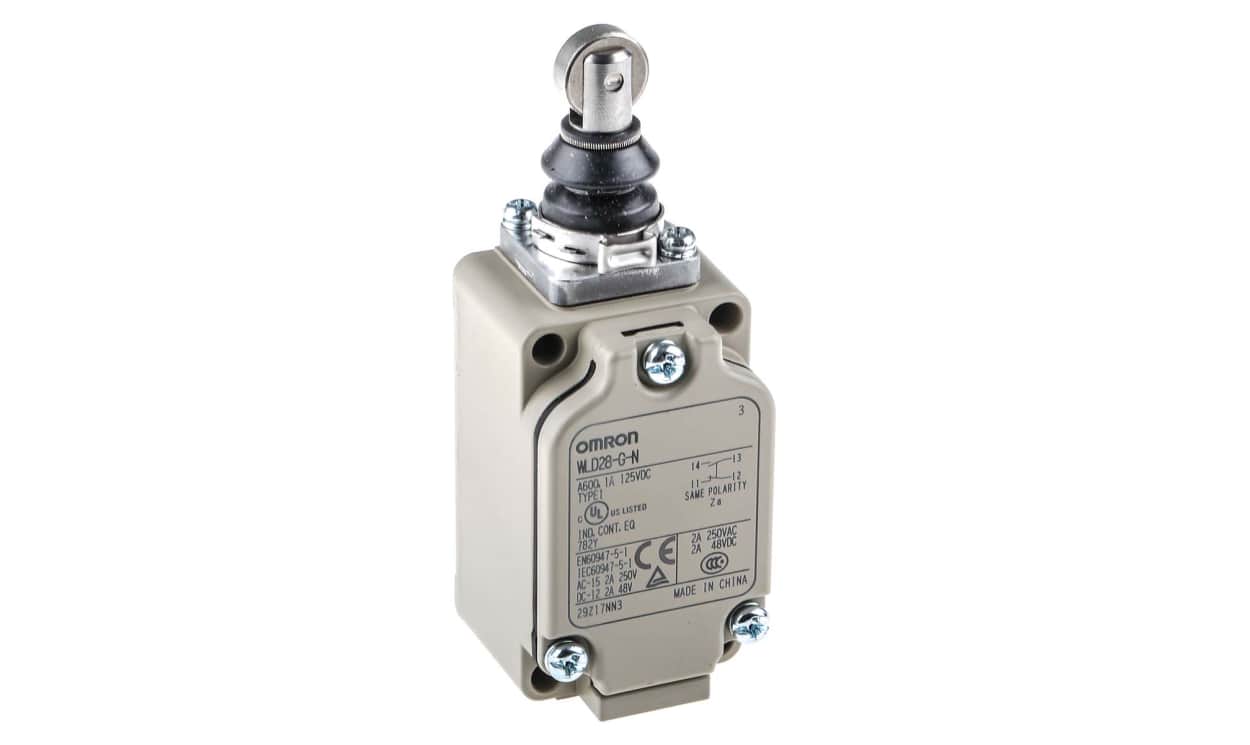

Name: Omron WLD28-G-N, WL Series Roller Plunger Limit Switch, NO/NC, IP67, SPST, 500V ac Max, 10A Max
Brand: OMRON
SKU: WLD28-G-N
Availability: OutOfStock

Part Number : WLD28-G-N

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron Series WL Limit Switch, Roller Plunger Actuator, IP67 - WLD28-G-N

This limit switch by Omron is a versatile and reliable option for industrial applications. With snap action and roller plunger features, this switch ensures precise and effective control in various settings.

Features & Benefits

• Snap action design allows for quick and accurate switching operations
• Roller plunger ensures smooth actuation and extended mechanical life
• IP67 rating makes it suitable for use in harsh industrial environments
• Wide operating temperature range (-10°C to +85°C) for flexibility in applications
• Can handle high voltages (up to 500V AC and 250V DC) for versatile use

Applications

• Ideal for automation systems requiring precise control and reliable performance
• Suitable for industrial machinery and equipment that need durable switch solutions

Can this limit switch handle both AC and DC voltages?

Yes, this limit switch is designed to work effectively with both AC and DC voltages, up to 500V AC and 250V DC.

Will this switch be suitable for use in outdoor environments?

Yes, this limit switch has an IP67 rating, making it weatherproof and suitable for outdoor use.

Is the mechanical life of this switch sufficient for industrial applications?

Yes, this limit switch offers a mechanical life of 15,000,000 operations, ensuring durability and longevity in industrial settings.

Brand	Omron
Actuator Type	Roller Plunger
Pole and Throw Configuration	SPST
Normal State Configuration	NO/NC
IP Rating	IP67
Maximum Current	10A
Maximum AC Voltage	500V
Maximum DC Voltage	250V
Connection Type	PG13.5
Series	WL
Action Type	Snap Action
Length	40mm
Standards Met	CE
Maximum Operating Temperature	+85°C
Width	42mm
Depth	107.7mm
Minimum Operating Temperature	-10°C
Operating Force	16.67 N
Mounting Orientation	Back, Front
Mechanical Life	15000000Operations
