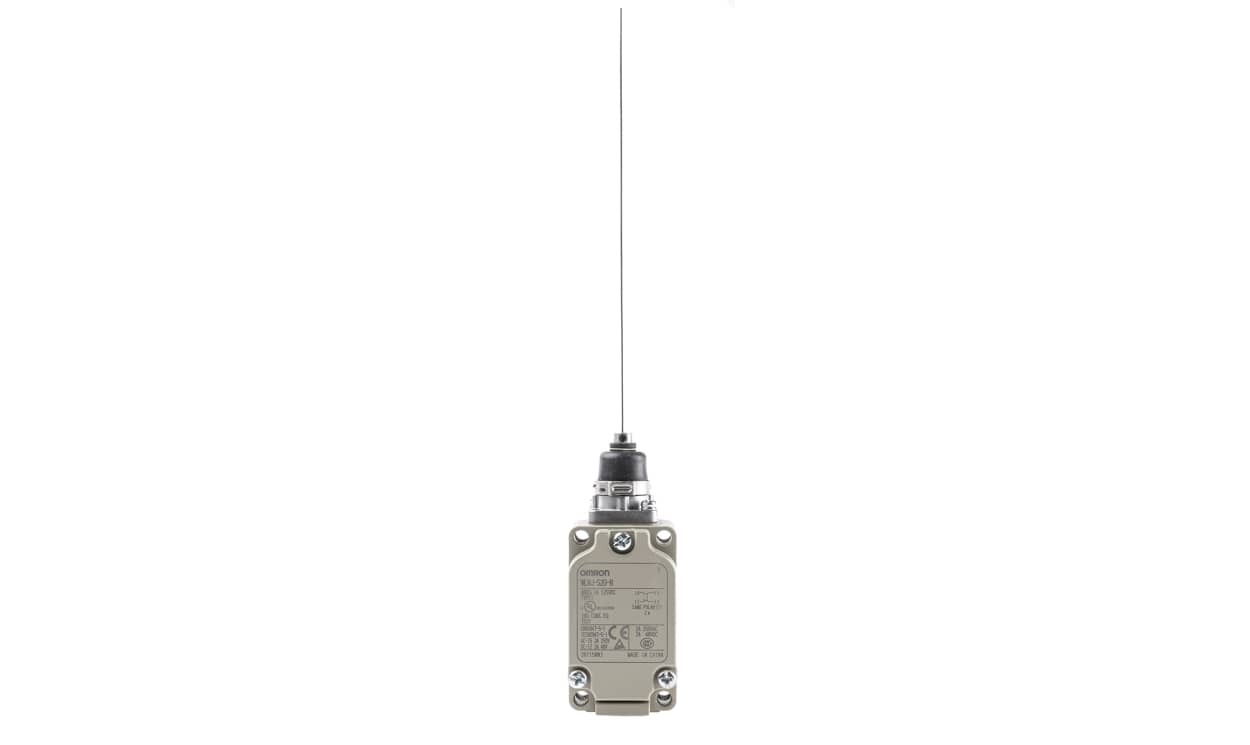

Omron WLNJ-S2G-N, WL Series Coil Spring Limit Switch, NO/NC, IP67, SPST, 500V ac Max, 10A Max

Name: Omron WLNJ-S2G-N, WL Series Coil Spring Limit Switch, NO/NC, IP67, SPST, 500V ac Max, 10A Max
Brand: OMRON
SKU: WLNJ-S2G-N
Availability: InStock

Part Number : WLNJ-S2G-N

Availability: low stock

Detailed Description
Specifications
Downloads

Omron Series WL Limit Switch, 10A Maximum Current, IP67 Rating - WLNJ-S2G-N

This limit switch is designed for high precision in automation tasks. The compact dimensions allow for versatile installation, making it suitable for various industrial applications. It features a coil spring actuator and a robust snap action mechanism, ensuring reliable performance in challenging environments.

Features & Benefits

• SPST configuration provides reliable on/off switching
• Coil spring actuator ensures responsive activation
• Capable of handling up to 10A current for robust requirement
• PG13.5 connection simplifies installation and wiring

Applications

• Ideal for detecting the position of moving machinery
• Used in industrial automation for precise control tasks
• Suitable for equipment in harsh environments, including welding sites
• Used in assembly lines for machine safety and efficiency

How does the IP67 rating benefit this switch in industrial settings?

The IP67 rating ensures that the switch is completely protected against solid objects and can withstand immersion in water, making it suitable for outdoor applications or areas with high humidity and dust.

What is the significance of the mechanical life rating?

A mechanical life of 15 million operations means the switch is designed for long-term reliability, reducing the need for frequent replacements in high-frequency applications, which ultimately lowers maintenance costs.

Can this switch be used with various actuator types?

Yes, the switch is versatile and can be paired with different actuators depending on the specific application requirements, enhancing its operational flexibility within diverse environments.

What kind of maintenance is required for optimal performance?

Routine checks for secure connections and ensuring no foreign materials obstruct the actuator will maintain performance. Regular inspection can prevent premature wear and ensure reliability over time.

Is the switch compatible with other electrical components?

Yes, it is designed to work seamlessly with a variety of industrial controls, ensuring easy integration into existing systems while maintaining high performance for all applications.

Brand	Omron
Actuator Type	Coil Spring
Pole and Throw Configuration	SPST
Normal State Configuration	NO/NC
IP Rating	IP67
Maximum Current	10A
Maximum AC Voltage	500V
Maximum DC Voltage	250V
Connection Type	PG13.5
Series	WL
Action Type	Snap Action
Length	40mm
Standards Met	CE
Maximum Operating Temperature	+85°C
Width	42mm
Minimum Operating Temperature	-10°C
Depth	203.7mm
Operating Force	1.47 N
Mounting Orientation	Back, Front
Mechanical Life	15000000Operations
