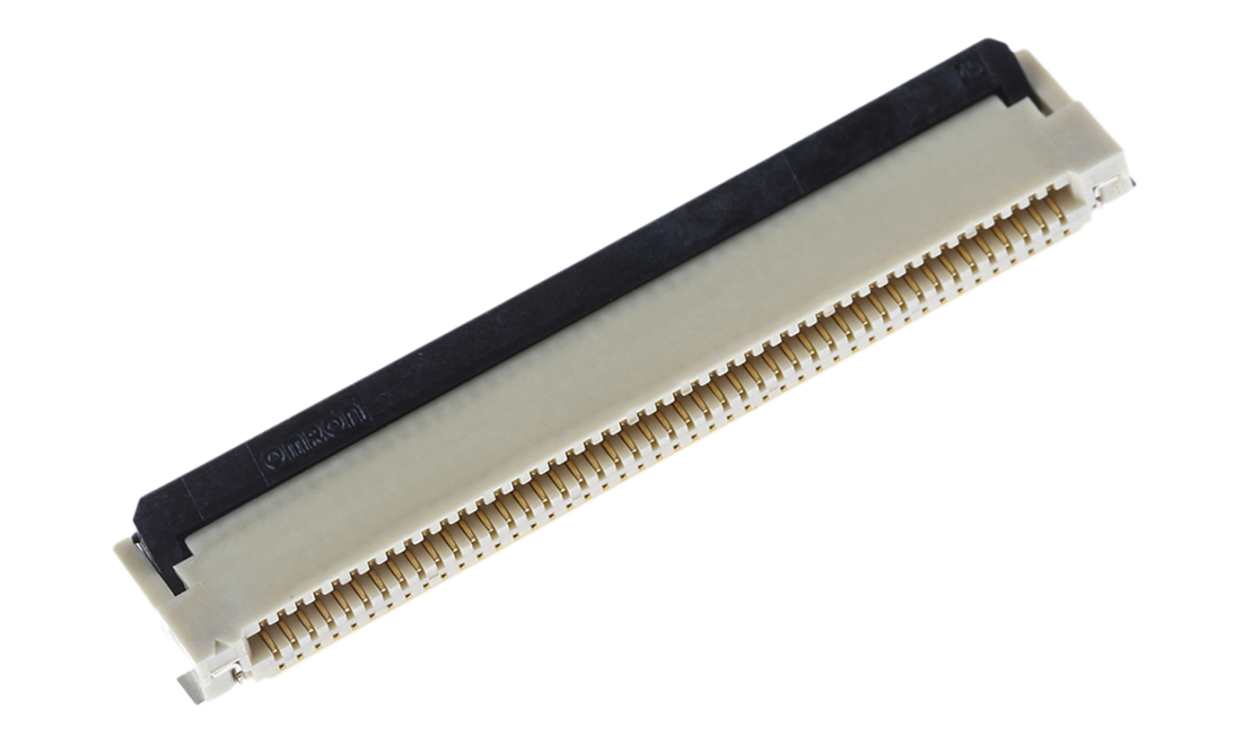

Omron XF2M-4515-1A, , XF2M 0.5mm Pitch 45 Way Right Angle Female FPC Connector, Top and Bottom Contact

Name: Omron XF2M-4515-1A, , XF2M 0.5mm Pitch 45 Way Right Angle Female FPC Connector, Top and Bottom Contact
Brand: OMRON
SKU: XF2M-4515-1A
Availability: OutOfStock

Part Number : XF2M-4515-1A

Availability: Sold out

Detailed Description
Specifications
Downloads

0.5mm Pitch Rotary Backlock Low Profile Connectors - XF2M Series

0.5mm pitch FPC connectors with a 2mm on board profile and double-sided contacts. These 0.5mm pitch connectors have a rotary backlock mechanism which aids FPC mounting and provides improved contact reliability, easy operation during assembly and secure mounting in tight spaces. These low profile 0.5mm pitch FPC connectors have LCP resin (UL94V-0) housings and sliders. Suitable applications for these low profile 0.5mm FPC connectors include small mobile devices such as digital cameras, mobile phones, digital audio and video players, DVD players and digital video cameras.

Rotary backlock mechanism to ensure secure connection
Low 2mm on-board profile
Side entry SMT terminals
0.3mm applicable FPC thickness
Single row double sided contacts
Halogen free

Omron 0.5mm Pitch Low Profile FPC Connectors - XF Series

Brand	Omron
Number of Contacts	45
Contact Material	Beryllium Copper, Nickel
Pitch	0.5mm
Mounting Type	Surface Mount
Gender	Female
Termination Type	Top and Bottom Contact
Body Orientation	Right Angle
Locking Mechanism	Yes
Current Rating	500mA
Voltage Rating	50 V ac/dc
Series	XF2M
Number of Rows	1
Contact Plating	Gold
Termination Method	Solder
Minimum Operating Temperature	-30°C
Housing Material	Liquid Crystal Polymer
Maximum Operating Temperature	+85°C

Omron XF2M-4515-1A, , XF2M 0.5mm Pitch 45 Way Right Angle Female FPC Connector, Top and Bottom Contact
