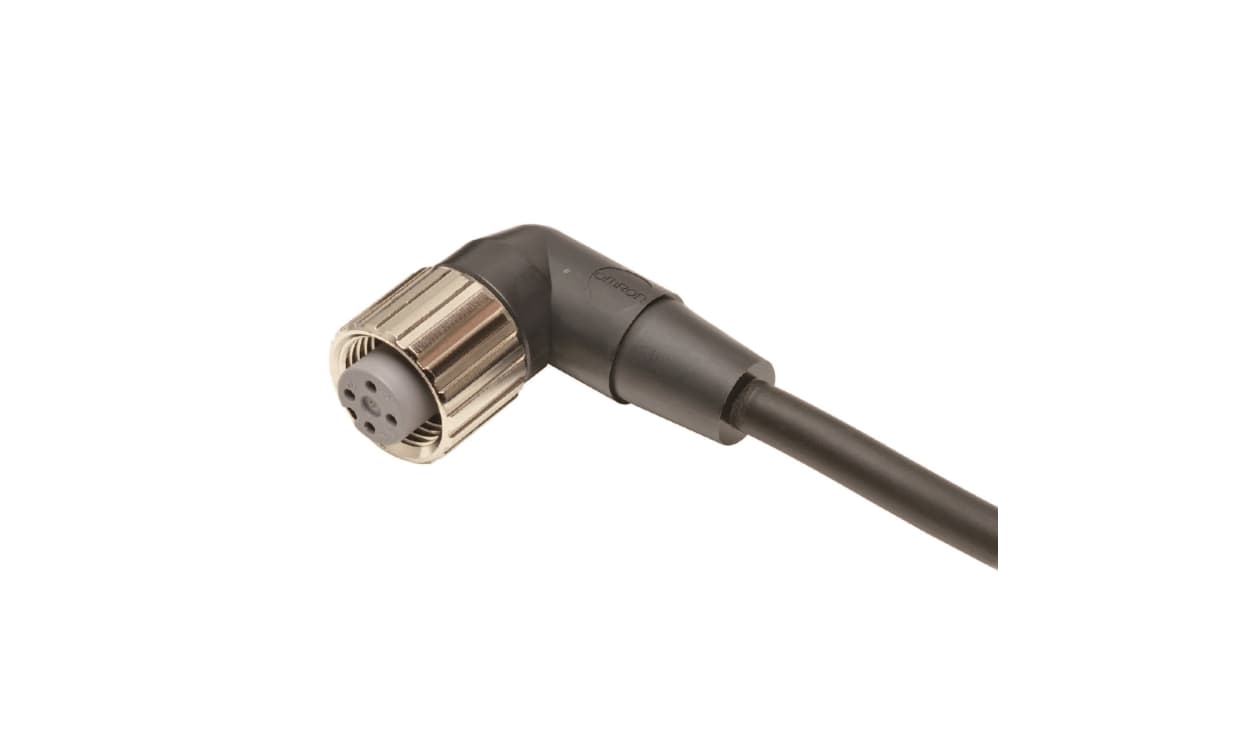

Omron XS2F-M12PUR4A5M, Right Angle Female 4 way M12 to Unterminated Sensor Actuator Cable, 5m

Name: Omron XS2F-M12PUR4A5M, Right Angle Female 4 way M12 to Unterminated Sensor Actuator Cable, 5m
Brand: OMRON
SKU: XS2F-M12PUR4A5M
Availability: OutOfStock

Part Number : XS2F-M12PUR4A5M

Sensor cable, M12 right-angle socket (female), 4-poles, A coded, PUR fire-retardant halogen free cable, IP67, 5 m

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

Omron XS2F/XS3F/XS5F/W/C, XW3D, Y92E Series Sensor Actuator Cable, 5m Length, 4A Current Rating - XS2F-M12PUR4A5M

This sensor actuator cable is a high-performance electrical connector specifically designed for reliable communication between sensors and actuators in industrial applications. With a length of 5m, this 4-core actuator cable features a robust PUR sheath, making it both durable and flexible in harsh environments. The cable is IP67 rated, ensuring it can withstand dust and immersion in water, offering peace of mind in demanding settings.

Features & Benefits

• Flame-retardant material enhances safety in high-risk areas
• Oil-resistant design extends lifespan in industrial environments
• 4A current rating ensures sufficient power delivery
• Exceptional conductor resistance of 40mΩ ensures efficiency
• Operating temperature range from -10°C to +80°C ensures versatility

Applications

• Used for connecting sensors in factory automation
• Ideal for mechanical systems requiring reliable actuator connections
• Suitable for electrical installations in harsh environments
• Used with robotics for precise signal transmission

How does the PUR sheath enhance the durability of this cable?

The PUR sheath provides superior flexibility and resistance to abrasion and oils, making it suitable for use in harsh conditions where wear and tear can occur due to movement or exposure to contaminants.

What are the implications of the IP67 rating for this cable?

An IP67 rating indicates that the cable is dust-tight and can withstand immersion in water up to 1m for 30 minutes, making it suitable for environments with exposure to moisture and particulates, ensuring reliable performance.

What current and voltage ratings should I consider for my application?

The cable supports a current rating of 4A and a voltage rating of 125V DC, making it suitable for various sensors and actuators operating within typical ranges in industrial settings.

How does the design of the right angle connector benefit installation?

The right angle connector allows for easier routing in tight spaces, minimising stress on the cable and simplifying the overall installation process where vertical or horisontal space is constrained.

Brand	Omron
Series	XS2F/XS3F/XS5F/W/C, XW3D, Y92E
Number of Cores	4
Sheath Colour	Black
Sheath Material	Polyurethane PUR
Length	5m
Connector 1 Orientation	Right Angle
Connector 1 Number of Contacts	4
Connector 1	M12
Connector 1 Gender	Female
Connector 2	Unterminated
Coding	A
Current Rating	4 A
Voltage Rating	125 V dc
IP Rating	IP67
Connector 1 Housing Gender	Female
Outer Diameter	5mm
Conductor Resistance	40 m?
American Wire Gauge	23 AWG
Operating Temperature Range	-10 → +80 °C

Sensor cable, M12 right-angle socket (female), 4-poles, A coded, PUR fire-retardant halogen free cable, IP67, 5 m
