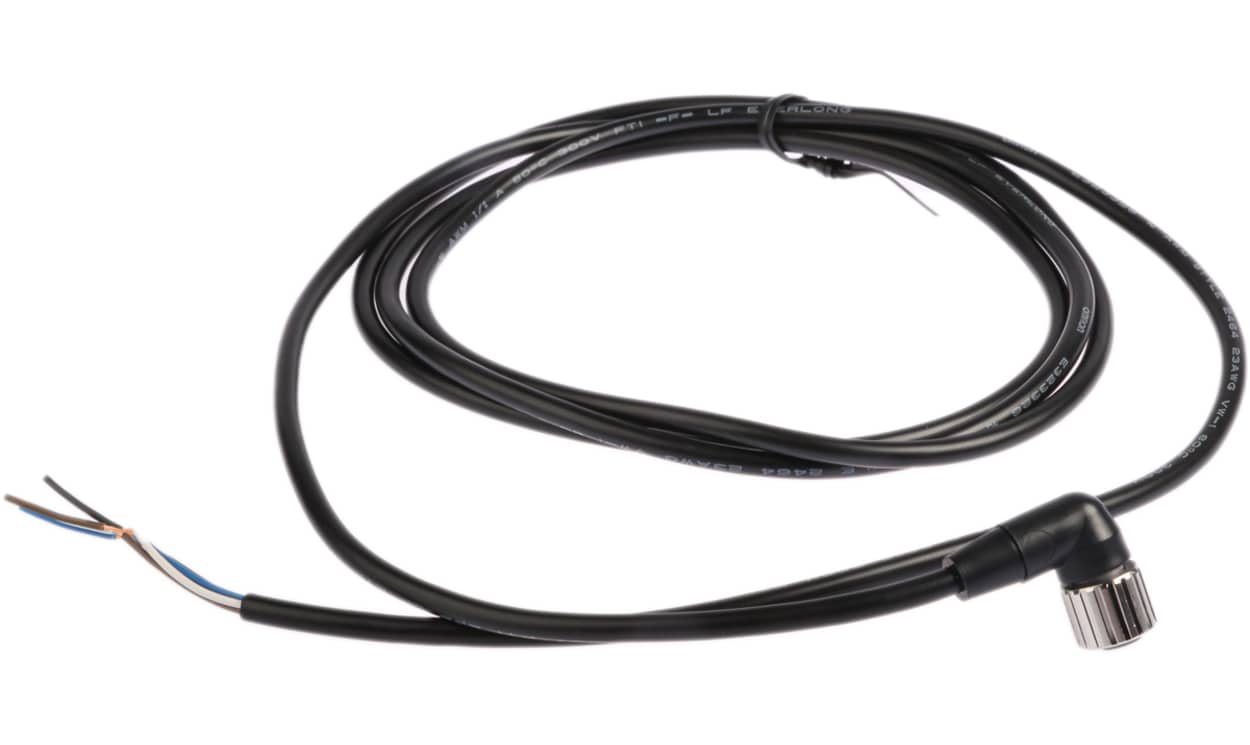

Omron XS2F-M12PVC4A2M, Right Angle Female 4 way M12 to Unterminated Sensor Actuator Cable, 2m

Name: Omron XS2F-M12PVC4A2M, Right Angle Female 4 way M12 to Unterminated Sensor Actuator Cable, 2m
Brand: OMRON
SKU: XS2F-M12PVC4A2M
Availability: OutOfStock

Part Number : XS2F-M12PVC4A2M

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron Sensor Actuator Cable, 2m Length, 125VDC - XS2F-M12PVC4A2M-EU

This Omron sensor actuator cable with the model is a high quality cable used in automation, electronics, electrical, and mechanical industries. This waterproof cable features an M12 female connector with a right angle orientation, making it ideal for various applications in challenging environments. With a current rating of 4A and a voltage rating of 125V DC, this cable ensures reliable performance in demanding conditions.

Features & Benefits

• Features an M12 female connector for easy installation and connectivity
• Right angle orientation allows for flexible placement in tight spaces
• IP67 rated cable provides waterproof protection for outdoor and harsh environments
• Current rating of 4A ensures safe and efficient power transmission
• Voltage rating of 125V DC for reliable operation in electrical systems

Applications

• Ideal for use in automation systems for sensor and actuator connections
• Suitable for electronics applications requiring waterproof cables
• Perfect for electrical installations that demand high traffic actuator cables
• Used in mechanical systems where reliable and durable cables are essential

Can it be used in outdoor applications?

Yes, the Omron sensor actuator cable is IP67 rated, making it suitable for outdoor use.

Is it suitable for high-traffic environments?

Yes, the cable is designed to withstand demanding conditions and is ideal for high-traffic actuator applications.

Can it be used with sensors in industrial automation?

Yes, the cable is perfect for sensor and actuator connections in automation systems.

Is it easy to install?

Yes, the M12 female connector allows for easy and quick installation in a variety of applications.

Brand	Omron
Series	XS2F
Number of Cores	4
Cross Sectional Area	0.34 mm²
Length	2m
Sheath Material	Polyvinyl Chloride PVC
Sheath Colour	Black
Connector 1 Number of Contacts	4
Connector 1 Orientation	Right Angle
Connector 1 Gender	Female
Connector 1	M12
Connector 2	Unterminated
Shielded/Unshielded	Shielded
Current Rating	4 A
Voltage Rating	125 V dc
IP Rating	IP67, IP69K
Fire Behaviour	Flame Retardant
Operating Temperature Range	-10 → +80 °C
Minimum Operating Temperature	-10°C
Conductor Resistance	40 mΩ max
