Omron XS5F-D421-J80-F, Straight Female 4 way M12 to Unterminated Sensor Actuator Cable, 10m

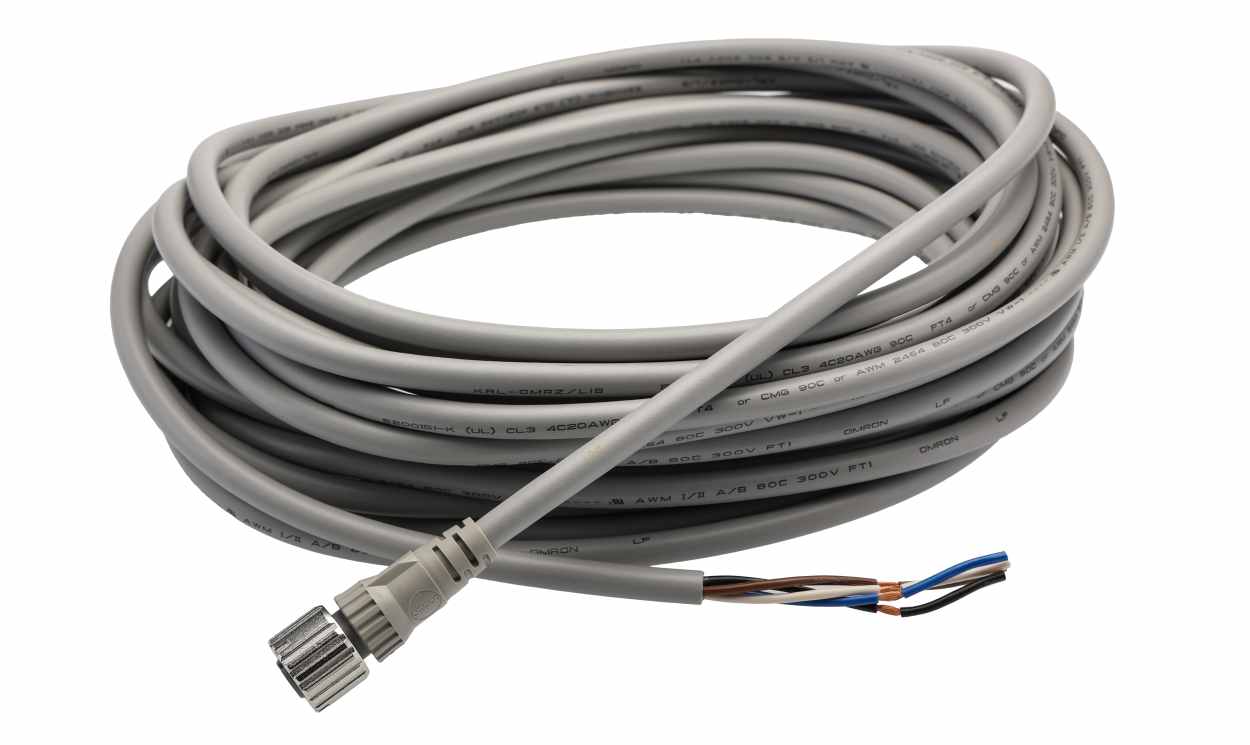

Name: Omron XS5F-D421-J80-F, Straight Female 4 way M12 to Unterminated Sensor Actuator Cable, 10m
Brand: OMRON
SKU: XS5F-D421-J80-F
Availability: OutOfStock

Part Number : XS5F-D421-J80-F

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron Series XS5 Sensor Actuator Cable, 0.75mm² Cross Sectional Area, 10 m Length - XS5F-D421-J80-F

This sensor actuator cable is designed for seamless connectivity in industrial automation applications. With a robust 10m length, it features four cores and an unshielded design, making it perfect for various sensor and actuator configurations. The cable is built with a durable TPE sheath in grey, ensuring resistance against challenging environments.

Features & Benefits

• Unshielded construction allows for flexible installation options
• TPE sheath provides excellent durability and protection
• Flame retardant properties enhance safety in operations
• Suitable for a wide temperature range from -25°C to +75°C

Applications

• Utilised for connecting sensors in automation systems
• Ideal for use in robotic and machine control
• Suitable for interconnecting actuators in manufacturing environments
• Effective in outdoor installations due to weatherproofing

What is the maximum current and voltage rating for this cable?

The cable supports a maximum current rating of 4A and a voltage rating of 250V DC, making it suitable for a wide range of industrial applications.

Can this cable withstand harsh environmental conditions?

Yes, it is rated IP67, ensuring protection against dust and water ingress, allowing for safe use in various environments.

How should I ensure proper connection with M12 connectors?

The M12 connectors are designed for straightforward locking

insert the cable and turn it approximately 1/8 of a turn until a positive click confirms a secure connection.

Omron M12 Smartclick

A water resistive connector featuring an innovative twist and click connection

Newly developed lock structure that maintains compatibility with conventional, screw-type M12 connectors
Simply insert the connectors, then turn them approximately 1/8 of a turn to lock
Positive click indicates locking
Standard cable 4 cores x AWG20 (0.12/49)
Vibration proof robot cable 4 cores x AWG 200 (0.08/110)

Brand	Omron
Series	XS5
Cross Sectional Area	0.75 mm²
Number of Cores	4
Length	10m
Sheath Colour	Grey
Sheath Material	TPE
Connector 1	M12
Connector 1 Orientation	Straight
Connector 1 Number of Contacts	4
Connector 1 Gender	Female
Connector 2	Unterminated
Coding	A
Shielded/Unshielded	Unshielded
Voltage Rating	250 V dc
Current Rating	4 A
IP Rating	IP67
Connector 1 Housing Gender	Female
Conductor Material	Brass
Conductor Resistance	40 m?
