Omron XS5H-D421-G80-F, Straight Male 4 way M12 to Unterminated Sensor Actuator Cable, 5m

Name: Omron XS5H-D421-G80-F, Straight Male 4 way M12 to Unterminated Sensor Actuator Cable, 5m
Brand: OMRON
SKU: XS5H-D421-G80-F
Availability: OutOfStock

Part Number : XS5H-D421-G80-F

Availability: Sold out

Detailed Description
Specifications
Downloads

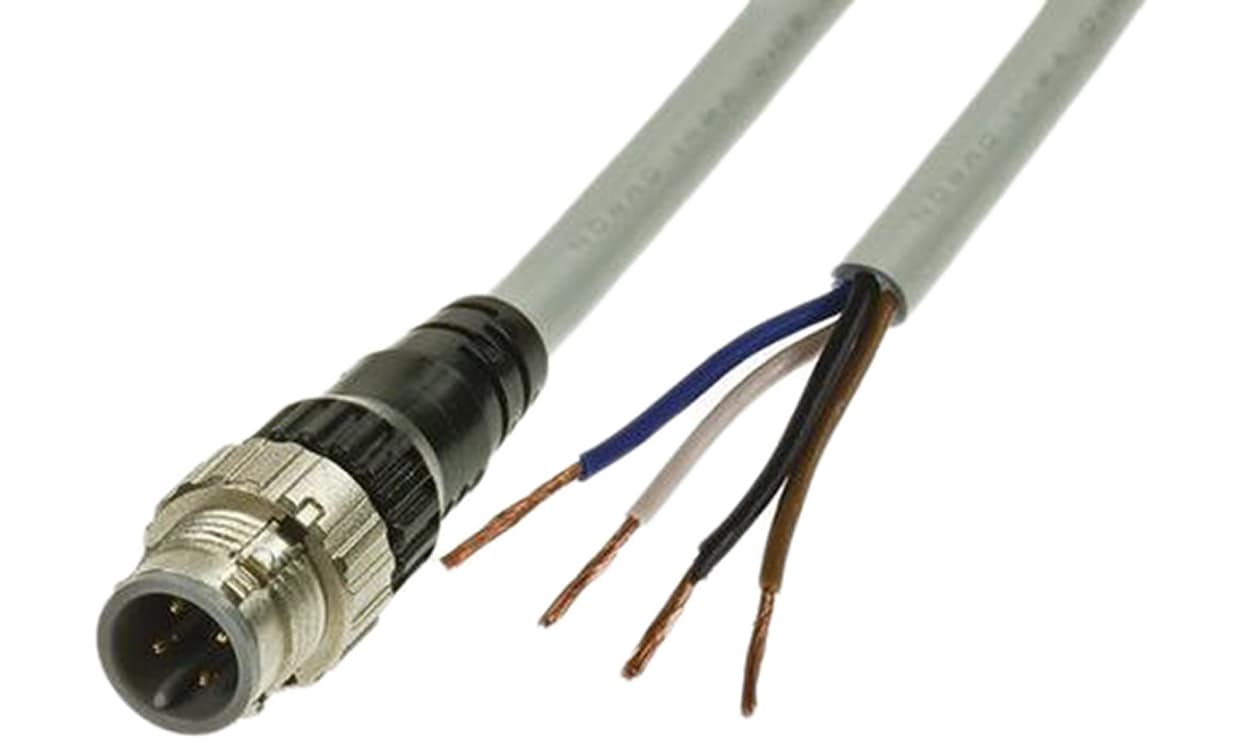

XS5 M12 Plug to Free End Cable Assembly

Brought to you by Omron, this XS5 "Smart Click" M12 Plug connector terminates in a conveniently pre-stripped free end. As well as a very high ingress protection, this connector is water resistive, meaning it is well suited for harsh industrial environments.

The "Smart Click" system ensures quick and easy connection with a simple twist and click action that mates with an audible click. The bayonet style locking system connects with 1/8th of a turn, and mates with an audible click, for a reassuring connection that is compatible with conventional screw-lock connectors.

Combining reliability with convenience, this XS5 M12 sensor I/O Connector is an ideal choice for applications in automation and robotics.

Omron M12 Smartclick

A water resistive connector featuring an innovative twist and click connection

Newly developed lock structure that maintains compatibility with conventional, screw-type M12 connectors
Simply insert the connectors, then turn them approximately 1/8 of a turn to lock
Positive click indicates locking
Standard cable 4 cores x AWG20 (0.12/49)
Vibration proof robot cable 4 cores x AWG 200 (0.08/110)

Brand	Omron
Series	XS5
Number of Cores	4
Cross Sectional Area	0.75 mm²
Length	5m
Sheath Material	TPE
Sheath Colour	Grey
Connector 1	M12
Connector 1 Orientation	Straight
Connector 1 Number of Contacts	4
Connector 1 Gender	Male
Connector 2	Unterminated
Shielded/Unshielded	Unshielded
Current Rating	4 A
Voltage Rating	250 V dc
IP Rating	IP67
Minimum Operating Temperature	-25°C
Connector 1 Housing Gender	Male
Operating Temperature Range	-25 → +75 °C
American Wire Gauge	20 AWG
