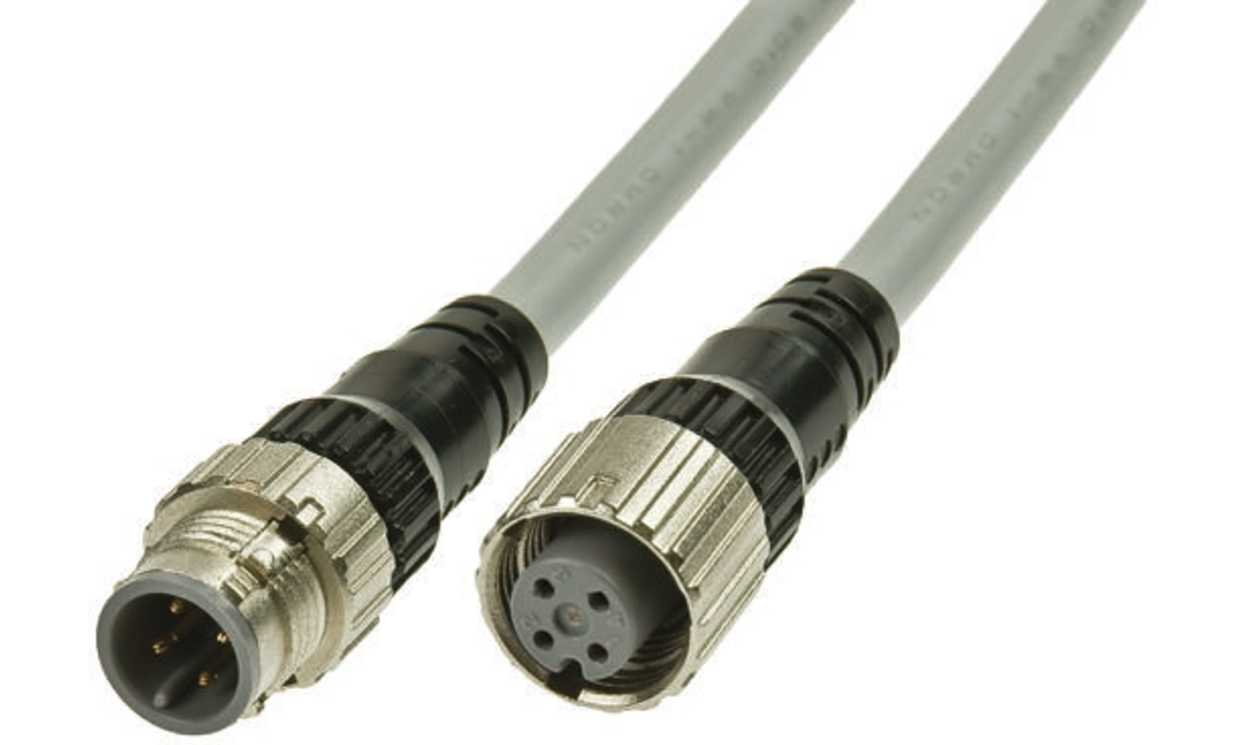

Omron XS5W-D421-C81-F, Straight Female 4 way M12 to Straight Male 4 way M12 Sensor Actuator Cable, 1m

Name: Omron XS5W-D421-C81-F, Straight Female 4 way M12 to Straight Male 4 way M12 Sensor Actuator Cable, 1m
Brand: OMRON
SKU: XS5W-D421-C81-F
Availability: OutOfStock

Part Number : XS5W-D421-C81-F

Availability: Sold out

Detailed Description
Specifications
Downloads

XS5 M12 Plug to Socket Cable Assembly

Brought to you by Omron, this XS5 M12 plug to socket cable assembly faetures the "Samrt Click" locking system . The "Smart Click" system ensures quick and easy connection with a simple twist and click action that mates with an audible click. The bayonet style locking system connects with 1/8th of a turn, and mates with an audible click, for a reassuring connection that is compatible with conventional screw-lock connectors.

As well as a very high ingress protection, this connector assembly is water resistive, meaning it is well suited for harsh industrial environments. Combining reliability with convenience, this XS5 M12 sensor I/O Connector is an ideal choice for applications in automation and robotics.

Omron M12 Smartclick

A water resistive connector featuring an innovative twist and click connection

Newly developed lock structure that maintains compatibility with conventional, screw-type M12 connectors
Simply insert the connectors, then turn them approximately 1/8 of a turn to lock
Positive click indicates locking
Standard cable 4 cores x AWG20 (0.12/49)
Vibration proof robot cable 4 cores x AWG 200 (0.08/110)

Brand	Omron
Series	XS5
Number of Cores	4
Cross Sectional Area	0.75 mm²
Sheath Colour	Grey
Length	1m
Sheath Material	TPE
Connector 1 Gender	Female
Connector 1	M12
Connector 1 Orientation	Straight
Connector 1 Number of Contacts	4
Connector 2 Orientation	Straight
Connector 2 Number of Contacts	4
Connector 2 Gender	Male
Connector 2	M12
Connector 2 Housing Gender	Male
Shielded/Unshielded	Unshielded
Current Rating	4 A
Voltage Rating	250 V dc
IP Rating	IP67

Omron XS5W-D421-C81-F, Straight Female 4 way M12 to Straight Male 4 way M12 Sensor Actuator Cable, 1m
