Omron Z-15GD-B, Z Series Plunger Limit Switch, NO/NC, IP00, SPDT, Thermosetting Resin Housing, 500V ac Max, 15A Max

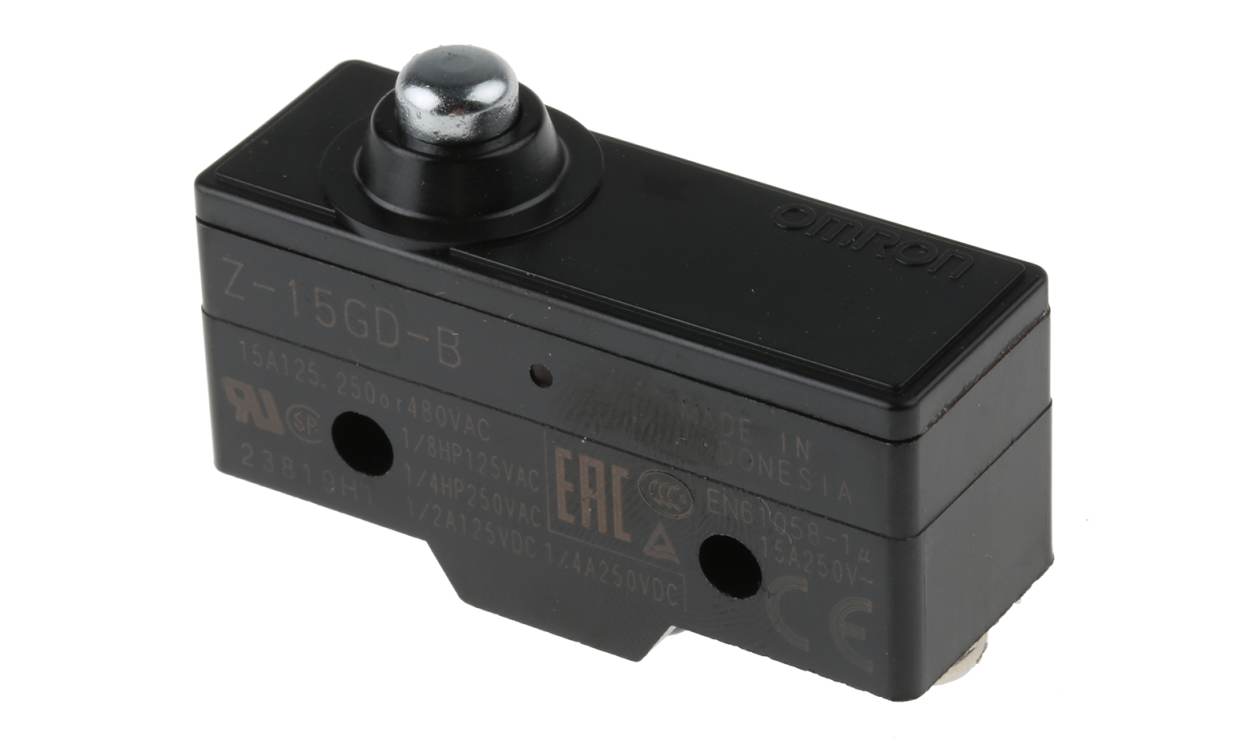

Name: Omron Z-15GD-B, Z Series Plunger Limit Switch, NO/NC, IP00, SPDT, Thermosetting Resin Housing, 500V ac Max, 15A Max
Brand: OMRON
SKU: Z-15GD-B
Availability: OutOfStock

Part Number : Z-15GD-B

General purpose basic switch, short spring plunger, SPDT, 15 A, screw terminals

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

Omron Limit Switch, IP00 IP Rating, 500V Maximum AC Voltage - Z-15GD-B

This basic switch Z by Omron is an industrial grade limit switch designed for accurate and precise applications. With long mechanical life and extreme temperature capabilities, this switch is built to withstand tough industrial conditions. The snap action plunger switch ensures quick and reliable actuation for a variety of applications.

Features & Benefits

• Snap action plunger design for quick and precise operation
• Screw connection for easy installation and maintenance
• Thermosetting resin housing for durability and protection
• High voltage AC capabilities for versatile use
• SPDT pole and throw configuration for flexible switching options

Applications

• Ideal for use in automation systems
• Suited for electrical control panels and machinery
• Can be used for industrial equipment and machines

Can it handle high voltage applications?

Yes, it is designed to handle high voltage AC applications with ease.

Will it withstand extreme temperatures?

The switch is capable of operating in extreme temperature conditions, ranging from -25°C to +80°C.

Is it suitable for automation and machinery?

Yes, it is ideal for automation systems, electrical control panels, and various industrial machinery.

Brand	Omron
Actuator Type	Plunger
Pole and Throw Configuration	SPDT
Normal State Configuration	NO/NC
IP Rating	IP00
Maximum Current	15A
Housing Material	Thermosetting Resin
Maximum AC Voltage	500V
Maximum DC Voltage	250V
Connection Type	Screw
Series	Z
Action Type	Snap Action
Length	49.2mm
Width	30.7mm
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+80°C
Standards Met	CSA Certified
Depth	17.45mm
Mechanical Life	20000000Operations

General purpose basic switch, short spring plunger, SPDT, 15 A, screw terminals
