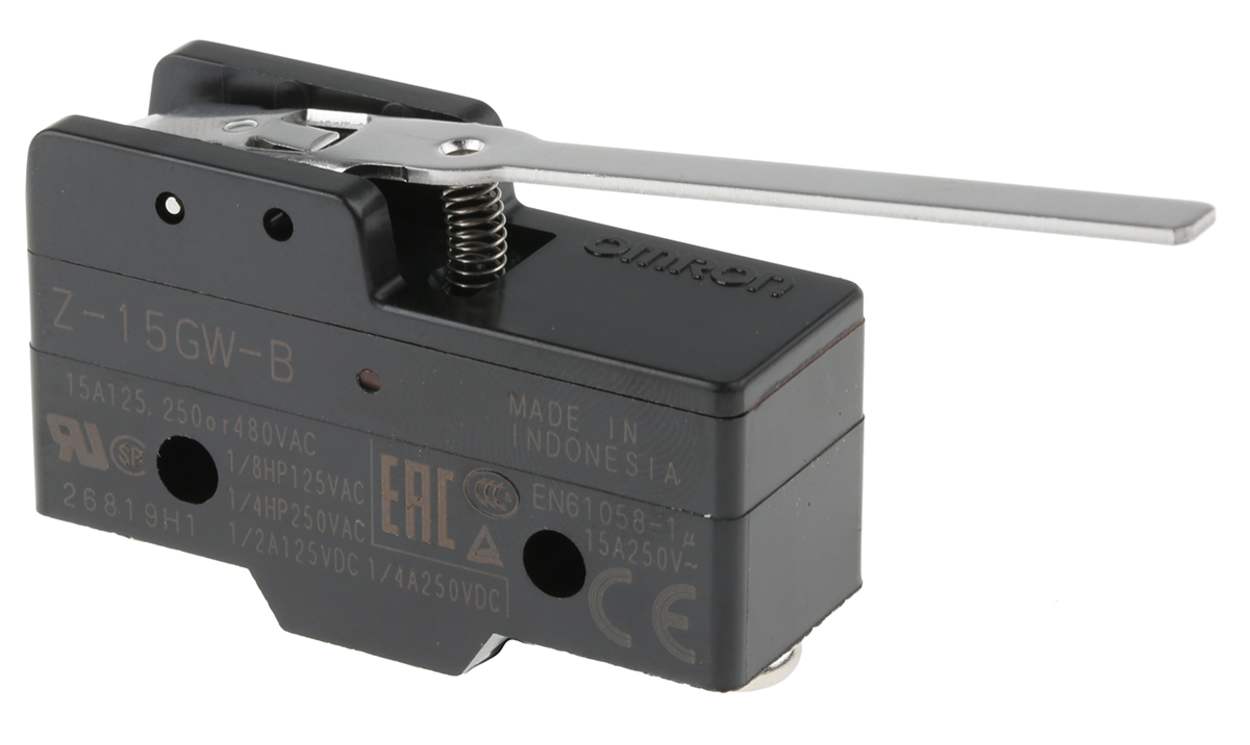

Omron Z-15GW-B, Z Series Lever Limit Switch, NO/NC, IP00, SPDT, Thermosetting Resin Housing, 500V ac Max, 15A Max

Name: Omron Z-15GW-B, Z Series Lever Limit Switch, NO/NC, IP00, SPDT, Thermosetting Resin Housing, 500V ac Max, 15A Max
Brand: OMRON
SKU: Z-15GW-B
Availability: OutOfStock

Part Number : Z-15GW-B

General purpose basic switch, hinge lever (low OF), SPDT, 15A, screw terminals

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

Omron Limit Switch, IP00, 15A Maximum Current - Z-15GW-B

This Omron limit switch with a lever actuator and screw connection from the series is designed for high precision in various applications. With a snap action mechanism and a thermosetting resin housing, this limit switch ensures reliable performance in industrial settings.

Features & Benefits

• Snap action mechanism for quick response
• Lever actuator for precise operation
• Screw connection for secure installation
• Thermosetting resin housing for durability
• SPDT configuration for versatile applications
• High voltage and current ratings for industrial use

Applications

• Ideal for automation systems
• Suitable for electrical panels
• Used in mechanical equipment
• Perfect for industrial control systems

Can it withstand high operating temperatures?

This Omron limit switch is designed to operate at temperatures ranging from -25 °C to +80 °C.

Will it provide reliable performance in high-speed applications?

The snap action mechanism ensures quick response times, making it suitable for high-speed operations.

Is it easy to install in industrial settings?

With a screw connection type, this limit switch can be securely installed in various industrial applications.

Can it be used in both AC and DC circuits?

Yes, this Omron limit switch is suitable for both AC and DC circuits with its high voltage and current ratings.

Will it maintain consistent performance over millions of operations?

The mechanical life of 20,000,000 operations ensures long-lasting and reliable performance in industrial environments.

Brand	Omron
Actuator Type	Lever
Pole and Throw Configuration	SPDT
Normal State Configuration	NO/NC
IP Rating	IP00
Maximum Current	15A
Housing Material	Thermosetting Resin
Maximum AC Voltage	500V
Maximum DC Voltage	250V
Connection Type	Screw
Series	Z
Action Type	Snap Action
Length	49.2mm
Standards Met	CSA
Depth	17.45mm
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+80°C
Width	29.4mm
Mechanical Life	20000000Operations

General purpose basic switch, hinge lever (low OF), SPDT, 15A, screw terminals

Omron Z-15GW-B, Z Series Lever Limit Switch, NO/NC, IP00, SPDT, Thermosetting Resin Housing, 500V ac Max, 15A Max

DOWNLOAD CATALOG

Z-15GW-B Catalogue - General Purpose Basic Switch A700000010811560
