Omron Z-15GW2277-B, Z Series Roller Lever Limit Switch, NO/NC, IP00, SPDT, Thermosetting Resin Housing, 500V ac ac Max, 15A Max

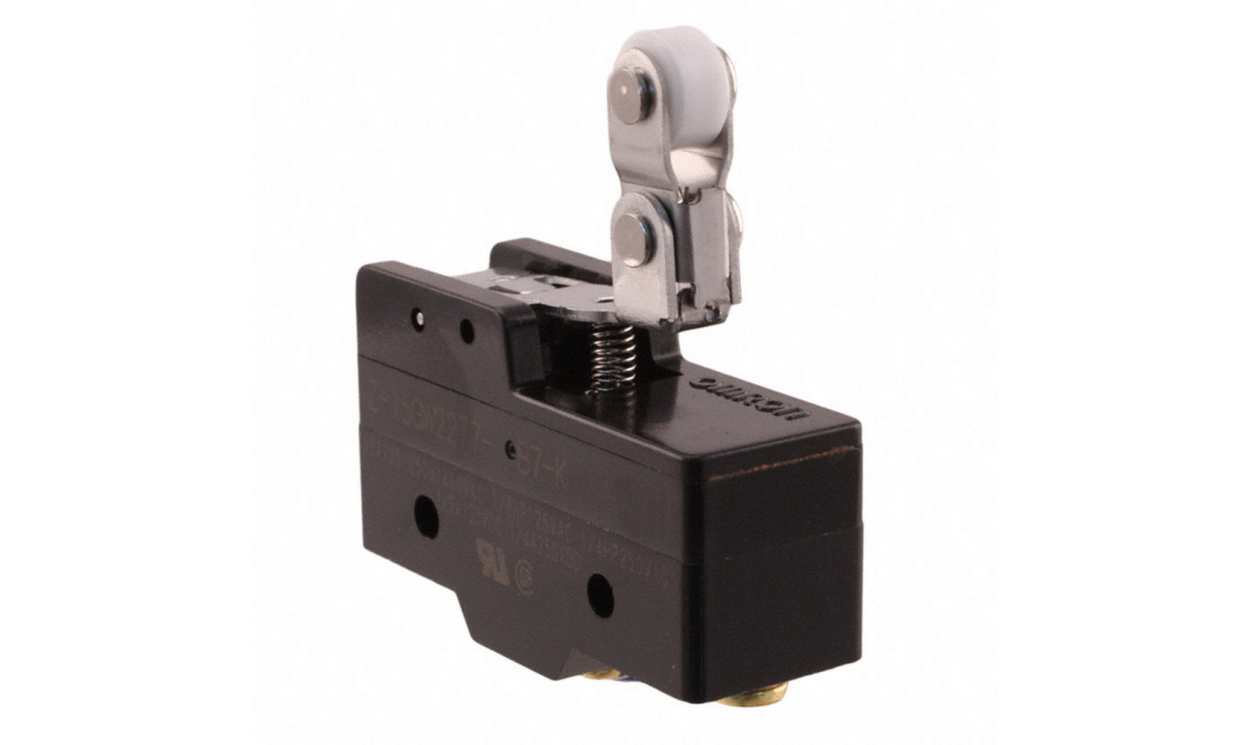

Name: Omron Z-15GW2277-B, Z Series Roller Lever Limit Switch, NO/NC, IP00, SPDT, Thermosetting Resin Housing, 500V ac ac Max, 15A Max
Brand: OMRON
SKU: Z-15GW2277-B
Availability: OutOfStock

Part Number : Z-15GW2277-B

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron Series Z Limit Switch, 15A Maximum Current, SPDT Configuration - Z-15GW2277-B

This limit switch is designed for reliable operation in industrial applications. As a versatile SPDT limit switch, it incorporates a roller lever actuator that enables smooth functionality. Constructed from thermosetting resin, this switch can withstand harsh environments, with an operational temperature ranging from -25°C to +80°C.

Features & Benefits

• Offers both normally open and normally closed configurations
• Built with a snap action mechanism for quick response
• Robust thermosetting resin housing for durability
• Designed with a screw connection type for easy installation
• Enhanced resistance to drips, protecting against moisture ingress

Applications

• Used in automated machinery for position detection
• Effective in conveyors to provide safety limits
• Ideal for industrial control systems needing precise feedback
• Utilised in electrical circuits for reliable current control
• Can be used in robotic for accurate motion monitoring

How does this switch handle high-current applications?

It accommodates a maximum current of 15A, making it ideal for robust tasks. Its SPDT configuration allows it to manage both normally open and normally closed circuits effectively.

What materials are used in the construction of the switch?

The switch is crafted from thermosetting resin, ensuring it remains durable under various conditions while providing excellent resistance to environmental challenges.

How does temperature influence the switch's performance?

It operates efficiently within a temperature range of -25°C to +80°C, ensuring reliability in both colder and warmer settings.

What kind of connection method does this limit switch use?

It employs a screw connection type, facilitating quick and secure installations while maintaining electrical integrity.

Brand	Omron
Actuator Type	Roller Lever
Pole and Throw Configuration	SPDT
Normal State Configuration	NO/NC
IP Rating	IP00
Maximum Current	15A
Housing Material	Thermosetting Resin
Maximum AC Voltage	500V ac
Series	Z
Action Type	Snap Action

Omron Z-15GW2277-B, Z Series Roller Lever Limit Switch, NO/NC, IP00, SPDT, Thermosetting Resin Housing, 500V ac ac Max, 15A Max
