Omron Z-15GW4-B7-K, Z Series Lever Limit Switch, NO/NC, IP00, SPDT, 500V ac Max, 15A Max

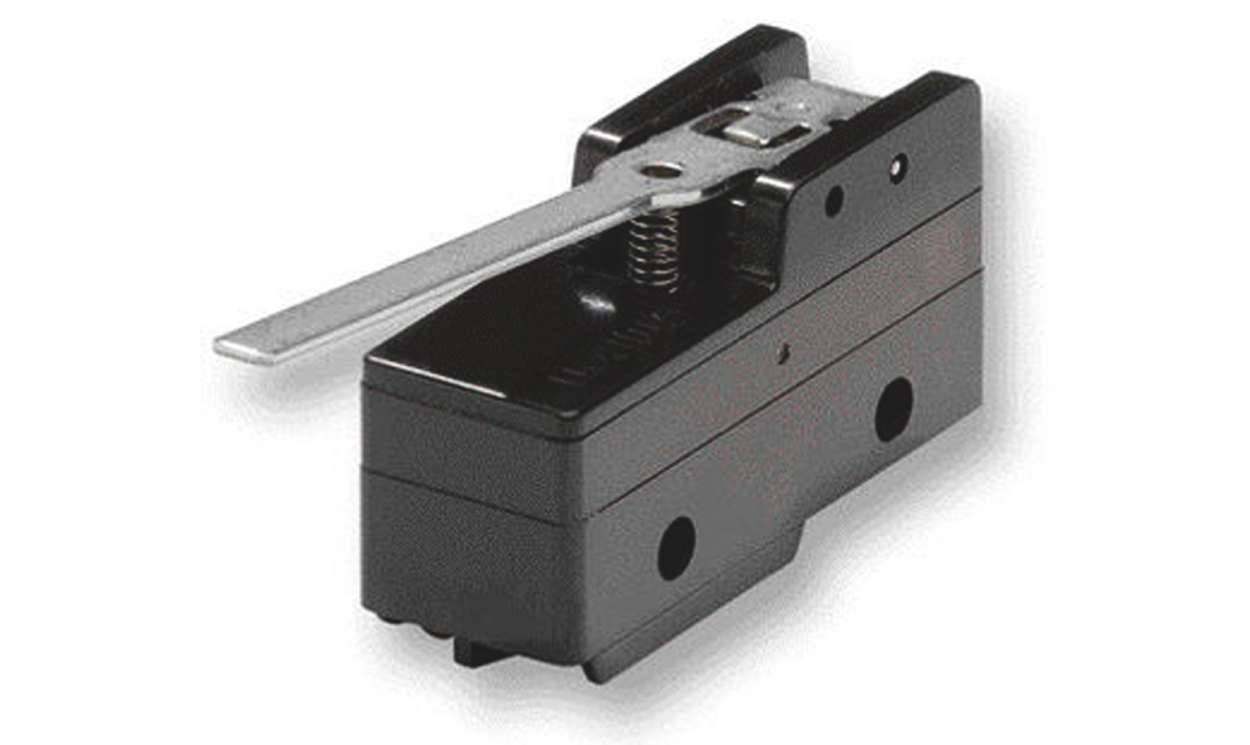

Name: Omron Z-15GW4-B7-K, Z Series Lever Limit Switch, NO/NC, IP00, SPDT, 500V ac Max, 15A Max
Brand: OMRON
SKU: Z-15GW4-B7-K
Availability: OutOfStock

Part Number : Z-15GW4-B7-K

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron Series Z Limit Switch, SPDT Configuration, 15A Maximum Current - Z-15GW4-B7-K

This limit switch is a high-precision device designed for various automation applications. It features a lever actuator and an SPDT configuration, making it suitable for diverse operating environments. With a compact size of 49.2mm in length, 17.45mm in depth, and 29.4mm in width, it offers flexibility in installation while maintaining robust functionality.

Features & Benefits

• High current rating of 15A for reliable performance
• Temperature resistant with an operating range from -25°C to +80°C
• Snap action mechanism for quick and precise operation
• Conforms to multiple international standards for safety
• Mechanical life of 20 million operations for longevity

Applications

• Suitable for machinery interface controls
• Utilised in assembly line equipment for precise positioning
• Effective in safety interlocking

What current capacity does this switch support?

It supports a maximum current of 15A, suitable for substantial electrical loads.

How does the temperature resilience enhance performance?

The wide temperature operating range of -25°C to +80°C ensures reliable operation in various environments, preventing failure in extreme conditions.

What is the expected lifespan of the switch in practical use?

The switch boasts a mechanical life of 20 million operations, providing durability and minimising maintenance needs in industrial settings.

What safety standards does this limit switch adhere to?

It meets several safety standards including CCC, CE, CSA, and UL, ensuring compliance with global safety guidelines.

Brand	Omron
Actuator Type	Lever
Pole and Throw Configuration	SPDT
Normal State Configuration	NO/NC
IP Rating	IP00
Maximum Current	15A
Maximum AC Voltage	500V
Maximum DC Voltage	250V
Series	Z
Action Type	Snap Action
Length	49.2mm
Standards Met	CCC, CE, CSA, UL
Maximum Operating Temperature	+80°C
Width	29.4mm
Minimum Operating Temperature	-25°C
Depth	17.45mm
Mechanical Life	20000000Operations

Omron Z-15GW4-B7-K, Z Series Lever Limit Switch, NO/NC, IP00, SPDT, 500V ac Max, 15A Max

DOWNLOAD CATALOG

Z-15GW4-B7-K Z-Series Basic Switches Datasheet 0900766b8160dd6b
