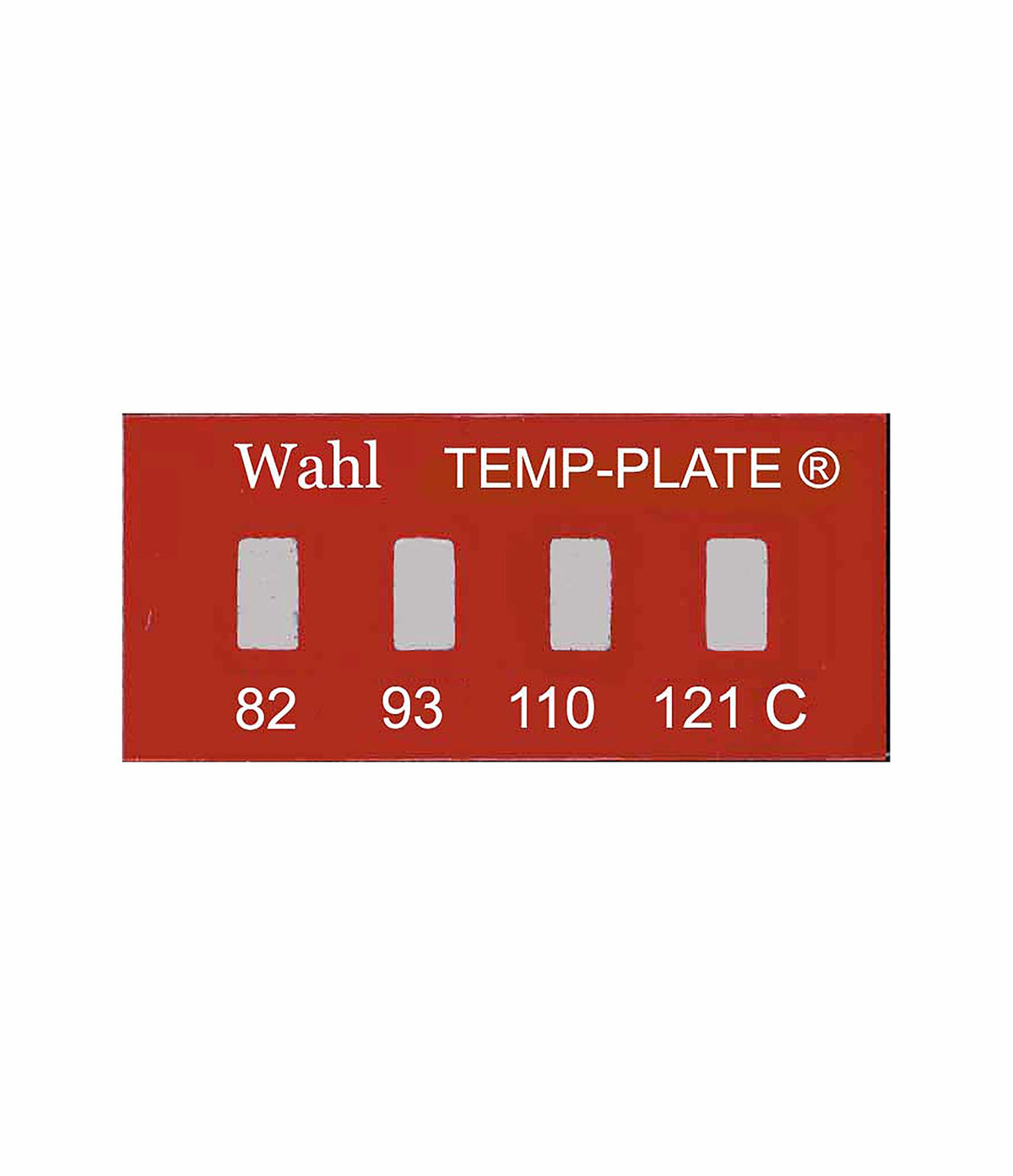

Palmer Wahl 101-4 | Mini Four Position Temp-Plate Labels | 10 x 21 mm, Box of 10
The Palmer Wahl 101-4 is the mini four-position Temp-Plate, the most popular of the mini labels. Smaller than the standard labels at 10 x 21 mm, it carries four heat-sensitive positions that turn permanently from pearl grey to black in under a second once their printed rating is reached. It is offered in °F or °C, with ranges from 100-130 °F up to 435-490 °F, or 37-54 °C up to 223-254 °C.
Key features
- Four irreversible indicator positions
- Mini 10 x 21 mm (0.38 x 0.82 in) self-adhesive label
- ±1% NIST traceable accuracy from 32 to 260 °C
- Clear Mylar cover to 176 °C, amber Kapton from 176 to 260 °C
- Sold 10 per recloseable box; NIST calibration data on request
Made in Asheville, NC, USA.
- Specifications
- Downloads
| Part Number | 101-4 |
| Brand | Palmer Wahl |
| Positions | 4 |
| Size | 10 x 21 mm (0.38 x 0.82 in) |
| Shape | Rectangular |
| Scale | °F or °C |
| Ranges | 37-54 °C to 223-254 °C; 100-130 °F to 435-490 °F |
| Accuracy | ±1%, NIST traceable |
| Response Time | Under 1 s (in water) |
| Thickness | 0.33 mm |
| Cover | Mylar to 176 °C; Kapton 176 to 260 °C |
| Pack Size | 10 labels per box |
