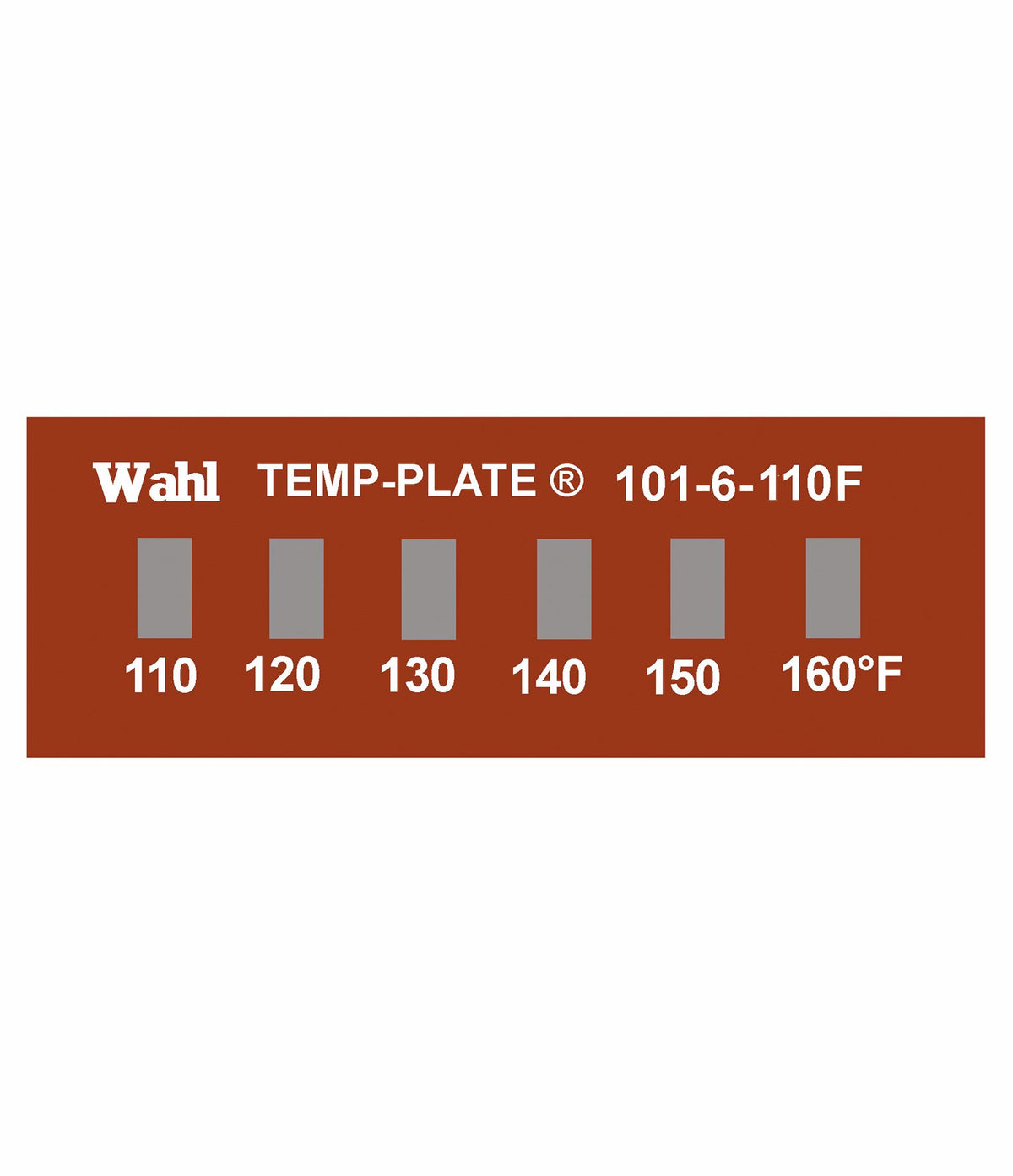

Palmer Wahl 101-6 | Mini Six Position Temp-Plate Labels | 10 x 29 mm, Box of 10
Palmer Wahl's 101-6 is a mini Temp-Plate label with six temperature positions on a 10 x 29 mm strip, an off-the-shelf choice for when four points are not enough. Ranges start at 110-160 °F (43-71 °C) and go up to 420-500 °F (215-260 °C). Each position is printed with its rating and turns permanently black when that temperature is reached or exceeded, leaving a record of the peak.
Key features
- Six irreversible indicator positions
- 10 x 29 mm (0.38 x 1.16 in) rectangular label
- ±1% NIST traceable accuracy
- Adhesive rated to 500 °F on clean, dry, smooth surfaces
- Ten labels per box, with NIST calibration data available
- Specifications
- Downloads
| Part Number | 101-6 |
| Brand | Palmer Wahl |
| Positions | 6 |
| Size | 10 x 29 mm (0.38 x 1.16 in) |
| Shape | Rectangular |
| Scale | °F or °C |
| Ranges | 43-71 °C to 215-260 °C; 110-160 °F to 420-500 °F |
| Accuracy | ±1%, NIST traceable |
| Adhesive | Rated to 500 °F |
| Cover | Mylar to 176 °C; Kapton 176 to 260 °C |
| Pack Size | 10 labels per box |
