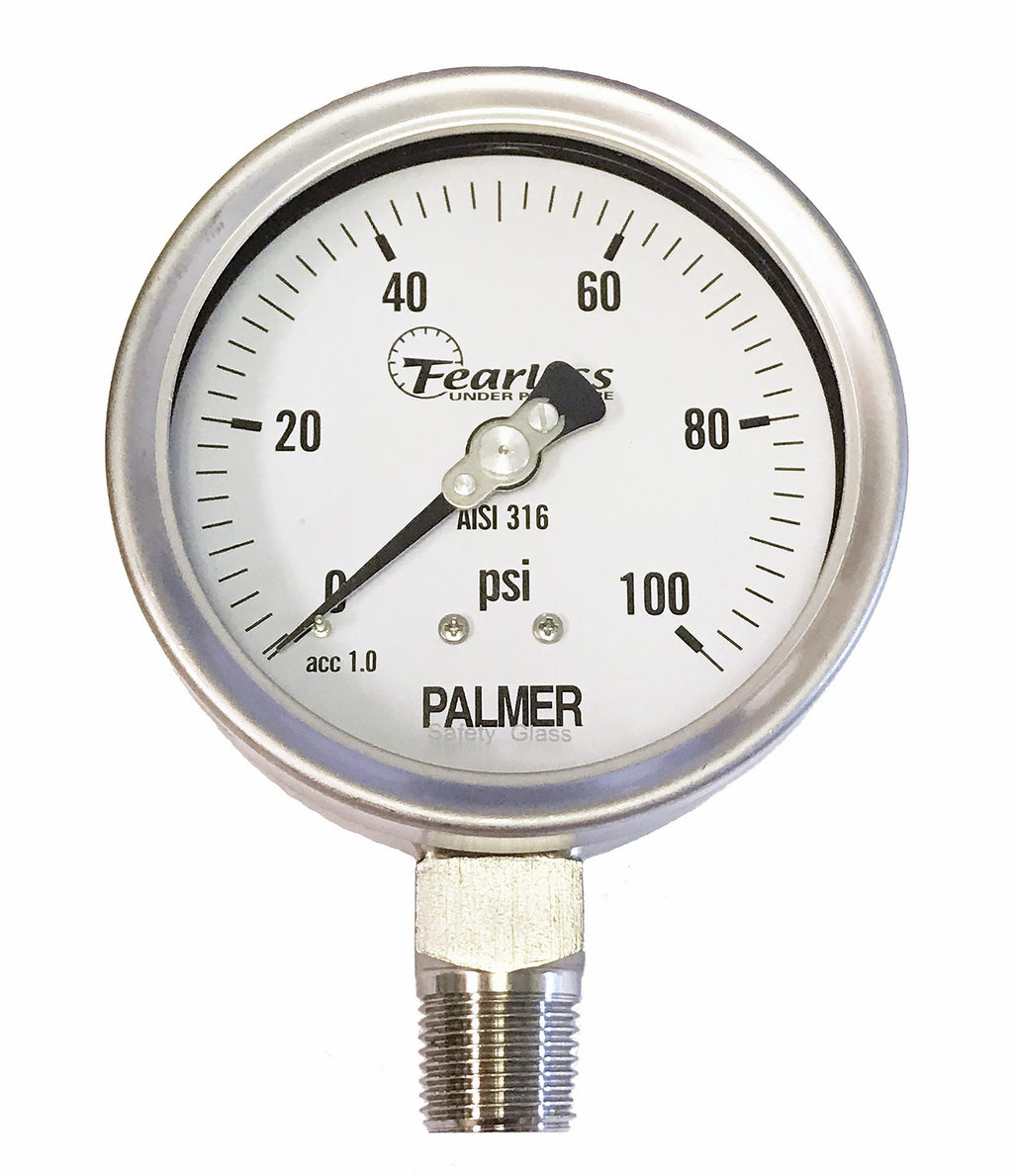

Palmer Wahl SF_Series | Fearless All Stainless Steel Pressure Gauges | 4 in, IP65
Part Number : SF_Series
The Palmer Wahl SF_Series Fearless gauge is a 4 in (100 mm) all stainless steel gauge whose specially dampened stainless movement gives vibration and pulsation resistant readings similar to a liquid filled gauge. It suits gas or liquid media, has a watertight case and can be liquid filled for extreme applications. A quarter-turn bayonet bezel lets the window be replaced, and the micro-adjustable pointer allows in situ calibration.
Key features
- Dampened 304 stainless movement with self-lubricating gears
- Ranges 15 to 30,000 psi; autoclave fitting from 25,000 psi
- ±1% below 10,000 psi; ±1.6% from 15,000 psi
- Safety glass window standard, acrylic optional
- Optional blow-out disc on dry or glycerin gauges; oxygen cleaning available
For pricing, please contact our experts.
