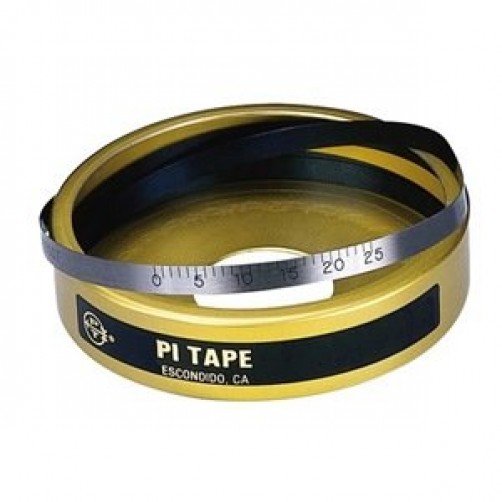

Pi Tape PM03 | Precision Outside Diameter Tape | 50–300 mm O.D., Spring Steel
Part Number : PM03
The PM03 from Pi Tape spans a 50–300 mm outside diameter range in 1095 Spring Steel, graduated in millimetre units. Pi Tape quotes a tolerance of ±0.03 mm for the PM03. It is intended for accurate, repeatable outside diameter measurement of round parts within the 50–300 mm band. Other material options for the 50–300 mm size are PM03EZ and PM03SS.
Key features
- 50–300 mm outside diameter range for the PM03, read in millimetre units
- 1095 Spring Steel construction on part PM03
- Tolerance of ±0.03 mm on the PM03
- PM03 standard widths: 1/4 in (6.35 mm) vernier gage, 1/2 in (12.7 mm) main body, 1/4 in (6.35 mm) gage member
- Standard PM03 material thickness of 0.010 in (0.25 mm), as the range starts at 50 mm
For pricing, please contact our experts.
