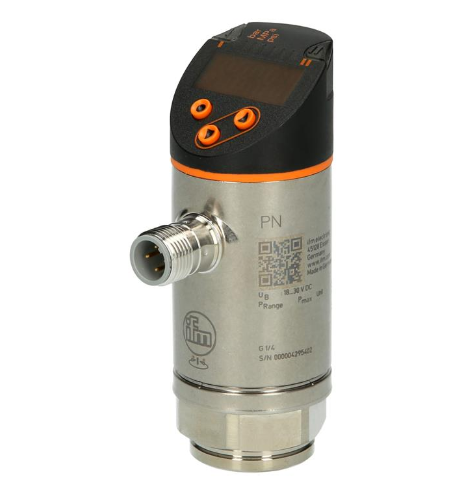

Pressure Sensor ifm electronic PN7097
The PN7097 electronic pressure sensor from ifm has a display, two programmable switching outputs. The pressure sensor operates pressure ranges to 1 bar and convinces with a high overload protection. Thanks to the high protection rating IP65/IP67 and maintence-free operation the PN7097 pressure sensor ensures a long-therm and reliable operation. The PN7097 electronic pressure sensor with process connection G 1/4 female and M12 connection is the optimum solution in hydraulic and pneumatic applications in the fields of manufacture of machine tools and automotive.
- Specifications
- Features
- Downloads
Ambient temperature | -25 °C to 80 °C |
Current consumption [mA] | <35 |
Electrical design | PNP/NPN |
Operating voltage [V] | 18-30 DC V |
Output function | normally open / closed; (configurable) |
Overload protection | yes |
Protection class | III |
Reverse polarity protection | yes |
Short-circuit protection | yes |
Switching frequency DC [Hz] | <170 Hz |
- Two switching outputs, one of them with IO-Link communication interface
- Red/green display for clear identification of the acceptable range
- The process connection can be rotated for optimum alignment
- With long-term stability thanks to high overload protection
- Robust design for use in harsh industrial environments
