OMRON 2SMPP-03 | Pressure Sensor | -50 to 50 kPa Gauge, Amplified Output

Name: OMRON 2SMPP-03 | Pressure Sensor | -50 to 50 kPa Gauge, Amplified Output
Brand: OMRON
SKU: 2SMPP-03
Availability: InStock

Part Number : 2SMPP-03

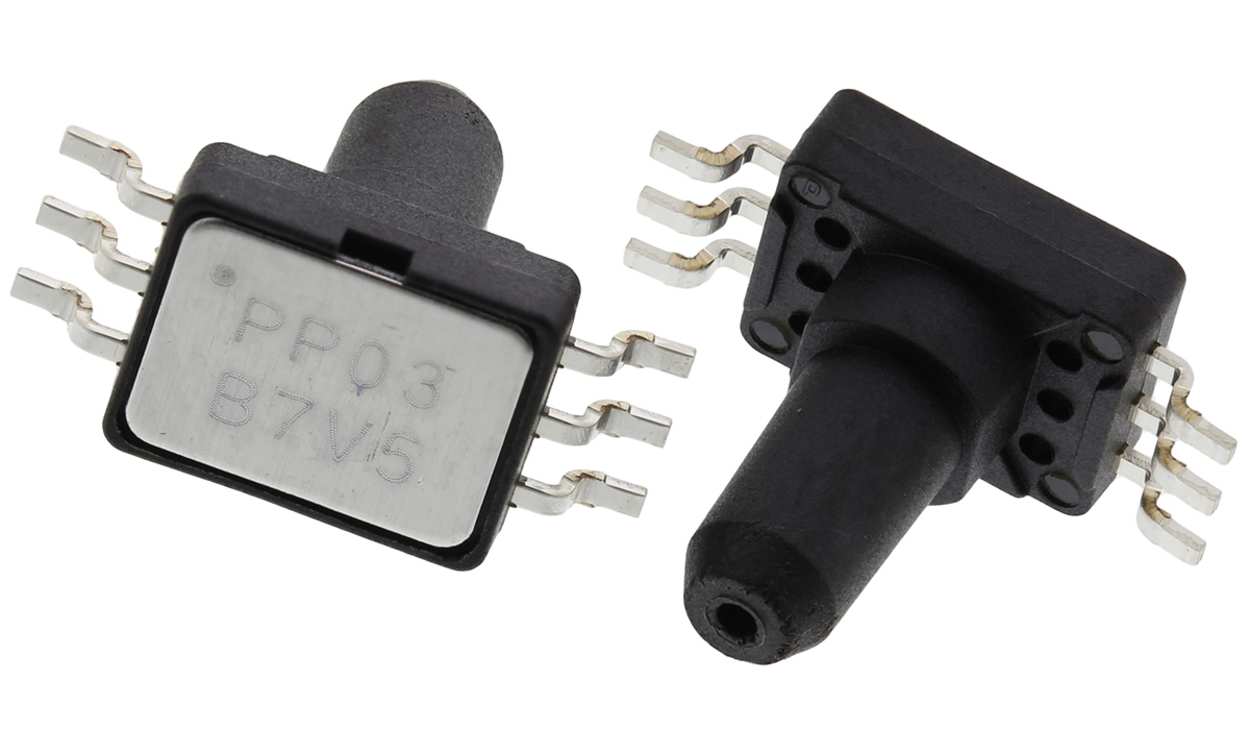

Covering -50 to 50 kPa gauge, the OMRON 2SMPP-03 is a surface mount pressure sensor for air with an amplified output and PCB connection.

Pressure range: -50 kPa to 50 kPa (gauge)
Amplified output; maximum current 200 μA
Media measured: air
PPS housing
Operating temperature: -10 to +100 °C

Availability: low stock

Detailed Description
Specifications
Downloads

Pressure Sensors, Omron

Solid state MEMS Pressure Sensors utilising piezo-resistive elements to provide superior electrical performance when compared to capacitive element types. They feature low power consumption and ultra-compact dimension, with good linearity and low temperature drift.

The Omron Electronic Components a 2SMPP-03 is a solid state MEMS Pressure Sensors utilising piezo-resistive elements to provide superior electrical performance when compared to capacitive element types. They feature low power consumption and ultra-compact dimension, with good linearity and low temperature drift.

Superior electrical characteristics
at -50 kPa to 50 kPa pressure range.
Offset voltage of -2.5±4.0 mV
Span voltage of 42.0±5.5 mV
(At rated pressure 50 kPa, 100 μADC Current supply)
Small package 6.1 x 4.7 x 8.2 mm (L x W x H).
Good temperature dependency
at 0 to 85°C, at rated pressure 0 to 50 kPa
Temp. influence of span of ±3.0%FS
Temp. influence of offset of ±5.0%FS
(100 μADC Current supply)
Rated power consumption of 0.2 mW

Pressure Sensors, Omron

Brand	Omron
Pressure Reading Type	Gauge
Minimum Pressure Reading	-50kPa
Maximum Pressure Reading	50kPa
Output Type	Amplified
Media Measured	Air
Electrical Connection	PCB
Maximum Current	200 μA
Housing Material	PPS
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+100°C
Mounting Type	Surface Mount
