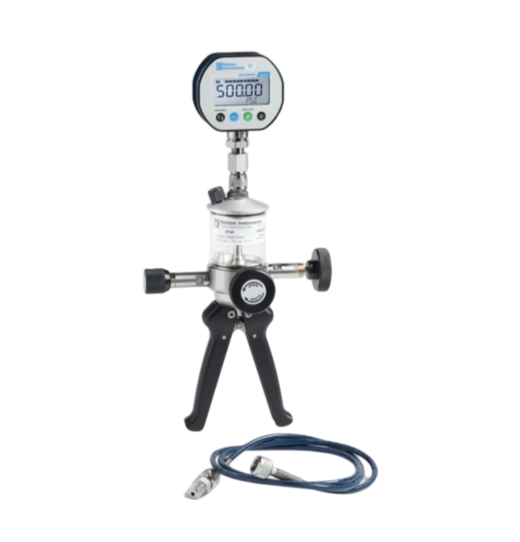

Ralston XTHP-10KPSIG-D | Hydraulic Hand Pump | Range 10,000 psi digital pressure gauge

Name: Ralston XTHP-10KPSIG-D | Hydraulic Hand Pump | Range 10,000 psi digital pressure gauge
Brand: Ralston
SKU: XTHP-10KPSIG-D
Availability: OutOfStock

Part Number : XTHP-10KPSIG-D

A 3' (0.9 m) hose is included with the pressure pump for a dependable connection. Polysulfone, stainless steel, Delrin, and anodized aluminum are the materials used to make the pump.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Battery Life	1,500 hours
Battery type	AA
Height	Pump: 10.6" (27 cm); Pressure reference: 3.1" (79 mm)
Length	Pump: 5.7" (15 cm); Pressure reference: 1.75" (45 mm); Reference connection: 1.52" (39 mm); Process connection: 1.29" (33 mm); Hose: 3' (0.9 m)
Operating Temperature	Pump: -15 to 140°F (-26 to 60°C); Pressure reference: -4 to 122°F (-20 to 50 °C); Reference connection and process connection: 0 to 225°F (-18 to 105°C); Hose: -40 to 140°F (-40 to 60°C)
Outputs	Male quick-test XT (pump)
Power Source	Hydraulic
Power	50 mA at 5 VDC (pressure reference)
Pressure Range	10,000 psi; Burst pressure: 40,000 psi (pump, hose and pressure reference)
Resolution	Adjustment Resolution 0.01 psi
Seals	Teflon, Viton (pump and process connection)
Weight	Pump: 3.12 lbs (1.41 kg); Pressure reference: 12.6 oz (355 g)
Width	Pump: 7.5" (20 cm); Pressure reference: 3.4" (87 mm); Reference connection: 0.75" (20 mm); Process connection: 0.63" (17 mm)

A robust hand pump is made of stainless steel, polysulfone, Delrin, and anodized aluminum.
Alcohol, antifreeze, ethylene glycol, hydraulic oil, mineral oil, petroleum-based oil, windshield washer fluid, transmission fluid, light motor oil, and Ralston calibration oil are among the media that the pump may work with.
For durability, the hose is composed of stainless steel and reinforced polyamide.
Air, inert gas, natural gas, petroleum-based oil, and water can all be used with hoses.
Pressure reference enables USB-based PC-based data logging.
A variety of engineering units are available through pressure reference, such as atm, bar, kPa, MPa, psi, inHg at 39°F (3.9°C), kgf/cm⊃2, Torr, ftH₂O at 39°F (3.9°C), and cmHg at 32°F (0°C).
With its powder-coated aluminum and ABS/polycarbonate blend construction, the pressure reference provides IP67 ingress protection for up to 30 minutes of submersion in 3.3' (1 m) of water.
Inert gas, natural gas, petroleum-based oil, water, air, alcohol, antifreeze, ethylene glycol, hydraulic oil, mineral oil, skydrol, windshield washer fluid, transmission fluid, light motor oil, and Ralston calibration oil are among the media that the pressure reference can work with.
A 2.4" (6.1 cm) segmented LCD panel is provided by Pressure Reference for convenient viewing.
American-made
