Ralston XTHP-KIT3-GV | Calibration Kit | with hydraulic pump and LC20 digital pressure gauge | Range 10,000 psi

Name: Ralston XTHP-KIT3-GV | Calibration Kit | with hydraulic pump and LC20 digital pressure gauge | Range 10,000 psi
Brand: Ralston
SKU: XTHP-KIT3-GV
Availability: OutOfStock

Part Number : XTHP-KIT3-GV

Along with other items, the pressure pump package includes a 3' (0.9 m) hose and a zippered bag. Polysulfone, stainless steel, Delrin, and anodized aluminum are the materials used to make the pump.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Battery Life	1,000 hours
Battery type	AA
Height	Pump: 10.6" (27 cm); Pressure reference: 3.1" (79 mm); Case: 9.6" (25 cm); Bag: 7" (18 cm)
Length	Pump: 5.7" (15 cm); Pressure reference: 1.75" (45 mm); Reference connection: 1.52" (39 mm); Process connection: 1.29" (33 mm); Hose: 3' (0.9 m); Case: 14.9" (38 cm); Bag: 6" (16 cm)
Operating Temperature	Pump: -15 to 140°F (-26 to 60°C); Pressure reference: -4 to 122°F (-20 to 50°C); Reference connection: 0°F (-18°C) to 225°F (105°C); Process connection: 0 to 225°F (-18 to 105°C); Hose: -40 to 140°F (-40 to 60°C)
Outputs	Male quick-test XT (pump)
Power Source	Hydraulic
Pressure Range	10,000 psi
Resolution	Adjustment Resolution 0.01 psi
Seals	Viton, Teflon (pump and process connection)
Weight	Pump: 3.12 lbs (1.41 kg); Pressure reference: 12.6 oz (355 g); Case: 8 lbs (3.63 kg); Bag: 3 oz (85 g)
Width	Pump: 7.5" (20 cm); Pressure reference: 3.4" (87 mm); Reference connection: 0.75" (20 mm); Process connection: 0.63" (17 mm); Case: 12.1" (31 cm); Bag: 1" (26 mm)

The pump is composed of polysulfone, stainless steel, Delrin, and robust anodized aluminum.
Alcohol, antifreeze, ethylene glycol, hydraulic oil, mineral oil, petroleum-based oil, windshield washer fluid, transmission fluid, light motor oil, and Ralston calibration oil are among the media that the pump may work with.
Through a USB connection, pressure reference makes PC-based data logging possible.
A variety of engineering units are available through pressure reference, such as atm, bar, kPa, MPa, psi, inHg at 39°F (3.9°C), kgf/cm⊃2, Torr, ftH₂O at 39°F (3.9°C), and cmHg at 32°F (0°C).
Made of powder-coated aluminum and a combination of ABS and polycarbonate, the pressure reference provides IP67 ingress protection for up to 30 minutes of submersion in 3.3' (1 m) of water.
Inert gas, natural gas, petroleum-based oil, water, air, alcohol, antifreeze, ethylene glycol, hydraulic oil, mineral oil, skydrol, windshield washer fluid, transmission fluid, light motor oil, and Ralston calibration oil are among the media that the pressure reference can work with.
For convenient viewing, the pressure reference has a 2.4" (6.1 cm) segmented LCD screen.
Air, inert gas, natural gas, petroleum-based oil, and water can all be used with hoses.

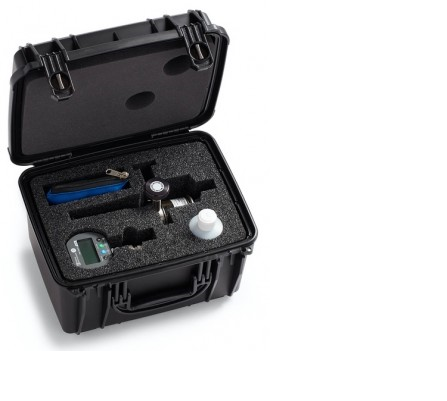

A handy case for keeping your stuff organized and stored
In addition to offering MIL-STD-810F IP67 ingress protection for immersion in 3.3' (1 m) of water for 30 minutes, the case is made with MIL-STD-3010C impact resistance.
