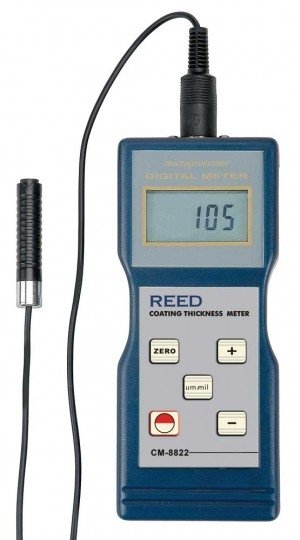

REED CM-8822 Coating Thickness Gauge

Name: REED CM-8822 Coating Thickness Gauge
Brand: REED Instruments
SKU: CM-8822
Availability: OutOfStock

Part Number : CM-8822

This coating thickness gauge comes with ferrous and non-ferrous probes and a zero button for rapid field adjustments. The CM-8822 sports an easy-to-read LCD display and a 3 percent basic accuracy.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	<100µm: +/-2µm >100µm: +/-3% of rdg.
Dimensions	6.3 x 2.7 x 1.25" (161 x 69 x 32mm)
Display	LCD
Measuring range	0 to 40mils (0 to 1000µm)
Operating Humidity Range	20 to 90%
Operating Temperature	32 to 104°F (0 to 40°C)
Power Supply	4 x AA Batteries
Resolution	0.1µm (0 to 99.9µm) 1µm (<100µm)
Storage Temperature	-4 to 140°F (-20 to 60°C)
Weight	9oz (260g)

Measures the thickness of non-magnetic coatings on magnetic or non-magnetic metal substrates
User selectable µm/mils
Probe allows for readings in tight spaces
Easy-to-read LCD display
Automatic probe recognition
Zero adjustment button
Automatic calibration
Low battery indicator
Designed to meet ISO 2178 and ISO 2361 standards
