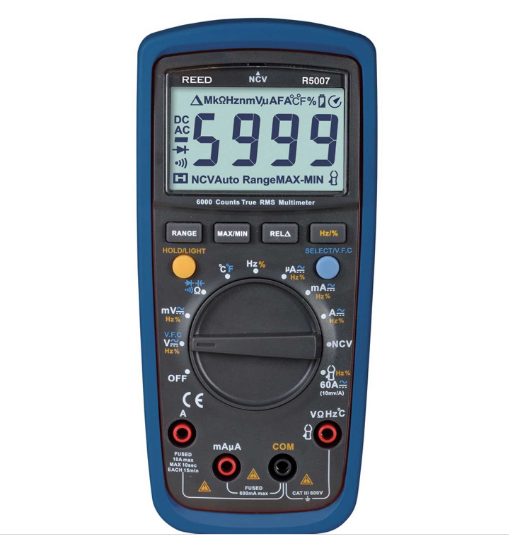

REED R5007 True RMS Digital Multimeter with NCV
This True RMS multimeter measures AC/DC voltage and current, resistance, capacitance, frequency and features a low pass VFC function to remove noise caused by variable frequency motors and drives. The R5007 also features a built-in non-contact voltage detector and Type K thermocouple probe for contact measurement.
- Specifications
- Features
- Downloads
| Auto shut-off | Yes (after 15 minutes) |
| Backlit Display | Yes |
| Dimensions | 6.9 x 3.2 x 1.9 |
| Display Hold | Yes |
| Display | 6,000 count LCD Display |
| Low Battery Indicator | Yes |
| Max/Min | Yes |
| Operating Temperature | 41 to 104°F (5 to 40°C) |
| Power Supply | 2x AA Batteries |
| Product Certifications | CE |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Temperature Range | -40 to 1832°F (-40 to 1000°C) |
- Measures AC/DC voltage and current, frequency, resistance, capacitance and temperature
- Built-in non-contact voltage detector and double molded plastic housing
- Diode check and continuity functions
- Relative and data hold functions
- Backlit LCD and low battery indicator
- Cat. III 600V safety rating
