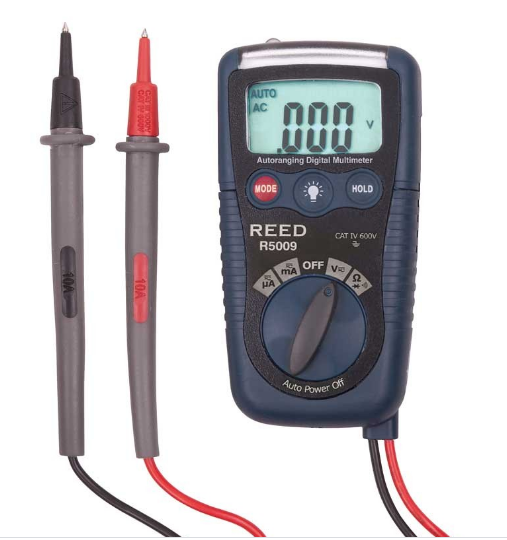

REED R5009 | Compact Multimeter with NCV and Flashlight | 2,000 Count
Pocket-sized and economical, the REED R5009 multimeter measures AC/DC voltage and current and resistance. A built-in flashlight and non-contact voltage detector help find live voltage on circuits in residential, commercial and industrial buildings.
- 2,000-count LCD with display hold
- Low battery indicator
- Auto shut-off after 15 minutes
- 2 AAA batteries
- 145 g; CE marked
- Measures AC/DC voltage, AC/DC current and resistance
- Use at 32 to 104°F (0 to 40°C); store at 14 to 122°F (-10 to 50°C)
- Specifications
- Features
- Downloads
| Part Number | R5009 |
| Brand | REED |
| Display Hold | Yes |
| Display | 2,000 count LCD display |
| Low Battery Indicator | Yes |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Power Supply | 2 x AAA |
| Auto shut-off | Yes (after 15 minutes) |
| Dimensions | 4.1 x 2.2 x 1.3 |
| Product Certifications | CE |
| Storage Temperature | 14 to 122°F (-10 to 50°C) |
| Weight | 5.2oz (145g) |
- Autoranging multimeter and non-contact voltage detector
- Built-in flashlight
- Diode check and continuity functions
- Auto power off and data hold
- Double molded housing and test leads
- CAT III 1000V, CAT IV 600V safety rating
