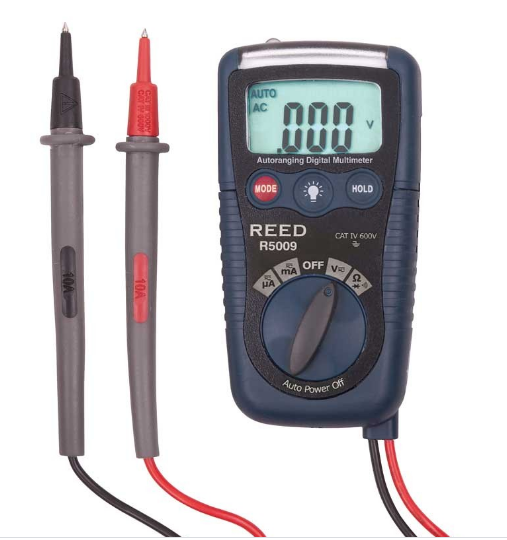

REED R5009 Compact Multimeter with NCV and Flashlight
This versatile pocket-sized multimeter includes a built-in flashlight and non-contact voltage detector. Practical and economical, the R5009 DMM measures AC and DC voltage and current, and resistance. The non-contact voltage detector quickly detects live voltage on electrical circuits found in residential, commercial and industrial buildings.
- Specifications
- Features
- Downloads
Auto shut-off | Yes (after 15 minutes) |
Dimensions | 4.1 x 2.2 x 1.3 |
Display Hold | Yes |
Display | 2,000 count LCD display |
Low Battery Indicator | Yes |
Operating Temperature | 32 to 104°F (0 to 40°C) |
Power Supply | 2 x AAA |
Product Certifications | CE |
Storage Temperature | 14 to 122°F (-10 to 50°C) |
Weight | 5.2oz (145g) |
- Autoranging multimeter and non-contact voltage detector
- Built-in flashlight
- Diode check and continuity functions
- Auto power off and data hold
- Double molded housing and test leads
- CAT III 1000V, CAT IV 600V safety rating
